Hardware Installations and Upgrades

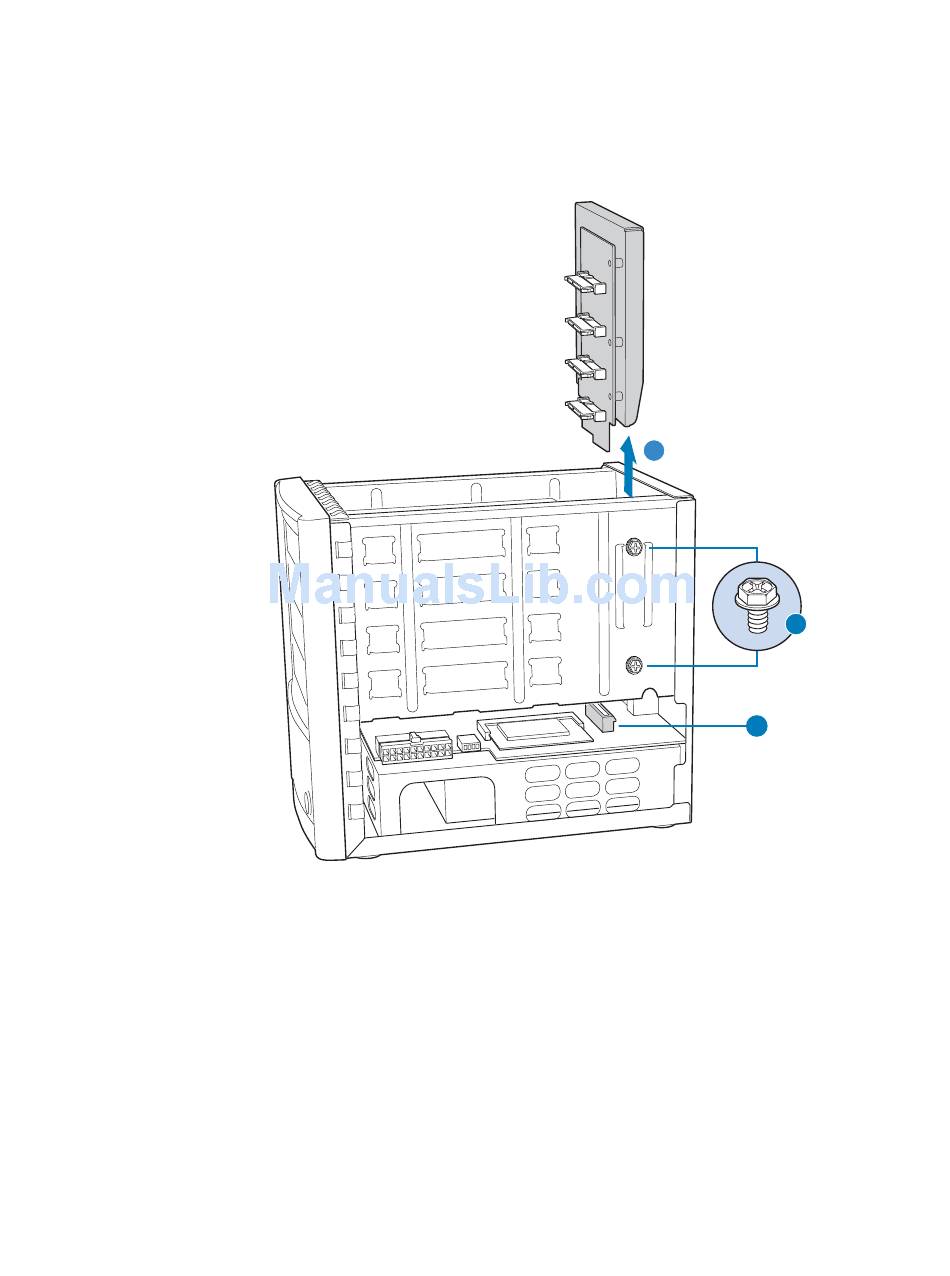

7. Remove the four hex-head screws, two per side, that secure the backplane assembly to
the chassis. See letter "A" in the following figure. Disconnect the backplane assembly
from its connector on the system board by pulling it up. See letter "B". Lift the
backplane assembly from the chassis. See letter "C".
C
A
B
AF000296
Figure 32. Removing Backplane from Chassis
®
Intel
Entry Storage System SS4000-E User Guide
153
