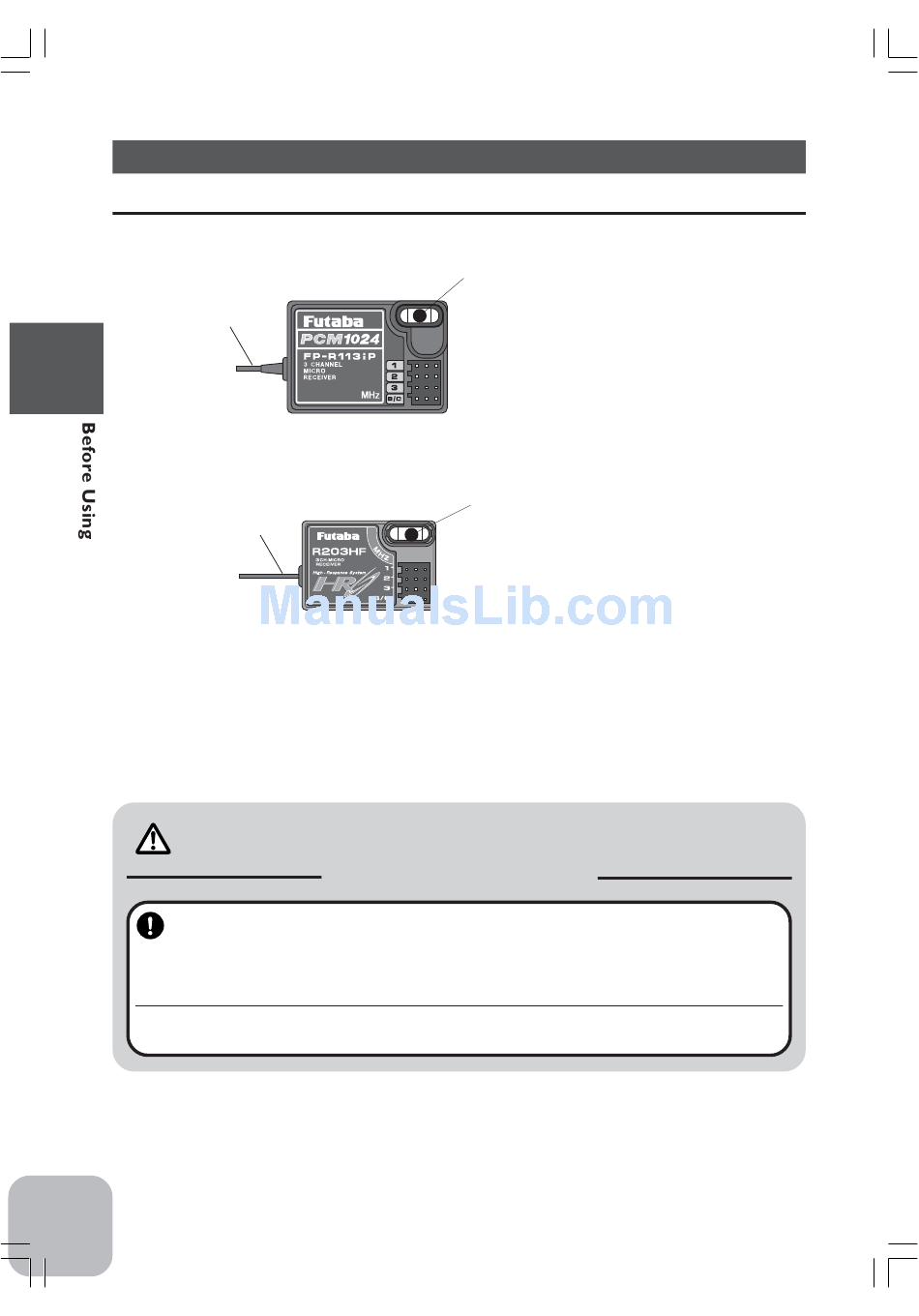

Nomenclature
Antenna
Antenna
For the receiver, servos, and other connections, see page 27. For the DSC cord (op-
tion) connections, see page 104.
Caution
In case of the High Response System (H.R.S) receiver R203HF, always use only the
following conditions:
Servo; 6V type Digital Servo only
Power supply; 6V Nicd battery
Transmitter setting; "HRS" mode
If the conditions are different, control is impossible.
And Fail Safe Unit (FSU1) is not available.
26
Receiver
Crystal
When changing the frequency, use the
specified Futaba crystal set.
Connectors
1: Steering servo (CH1)
2: Throttle servo (CH2)
3: CH3 servo (CH3)
B/C: Power connector/DSC connector
R113iP
receiver
Crystal
When changing the frequency, use the
specified Futaba crystal set.
Connectors
1: Steering servo (CH1)
2: Throttle servo (CH2)
R203HF
3: CH3 servo (CH3)
receiver
B/C: Power connector/DSC connector
Mandatory Procedures
