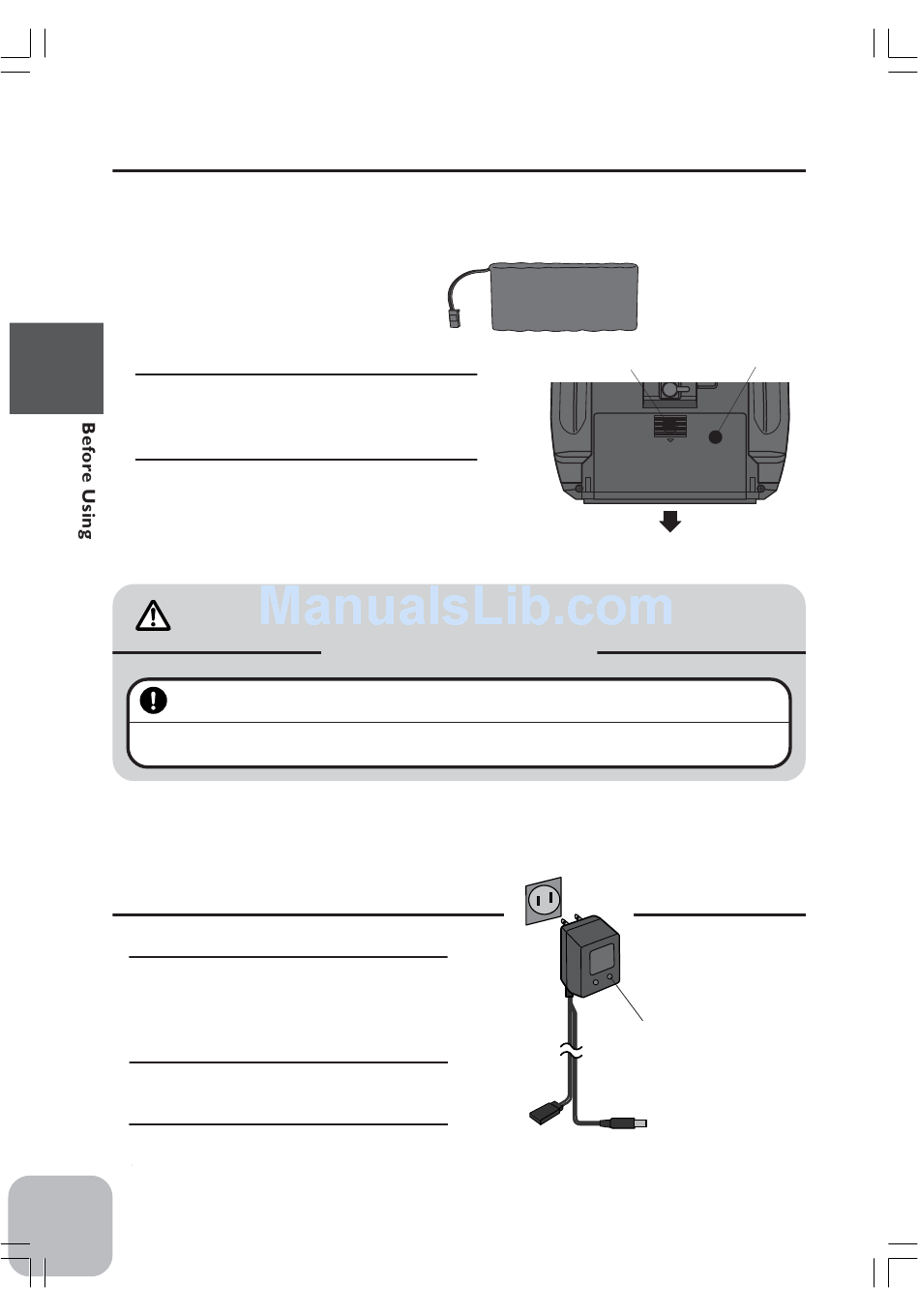

Ni-cad Battery Replacement
The Ni-cad battery is connected by a connector so that it can be removed when you
will not be using the transmitter for a long time, or when replacing a dead battery with
a spare battery.
- Always use an NT8F7000B Ni-cad battery.
Removal
1. Slide the transmitter battery cover
in the arrow direction while press-
ing the part shown in the figure.
2. Remove the Ni-cad battery and dis-
connect the connector.
Caution
Pay full attention so that the battery cover wouldn't pinch the cable of the Ni-cad
battery.
Pinching the cable by the battery cover can lead to an electrical shortage, fire and abnormal heat generation,
which may cause burns and fire disaster.
Charging the Ni-cad Battery
Charging
1. Plug the transmitter cord of the
special charger into the charg-
ing jack on the rear of the trans-
mitter.
2. Plug the charger into an AC out-
let.
3. Check that the charging LED
lights.
20
- While pressing here
Mandatory Procedures
Ni-cad battery
NT8F700B
Battery cover
PHONE
AC outlet
Charger
Transmitter charging
LED
Cord to transmitter
charging jack
