FUTABA 3VCS Instruction Manual page 103

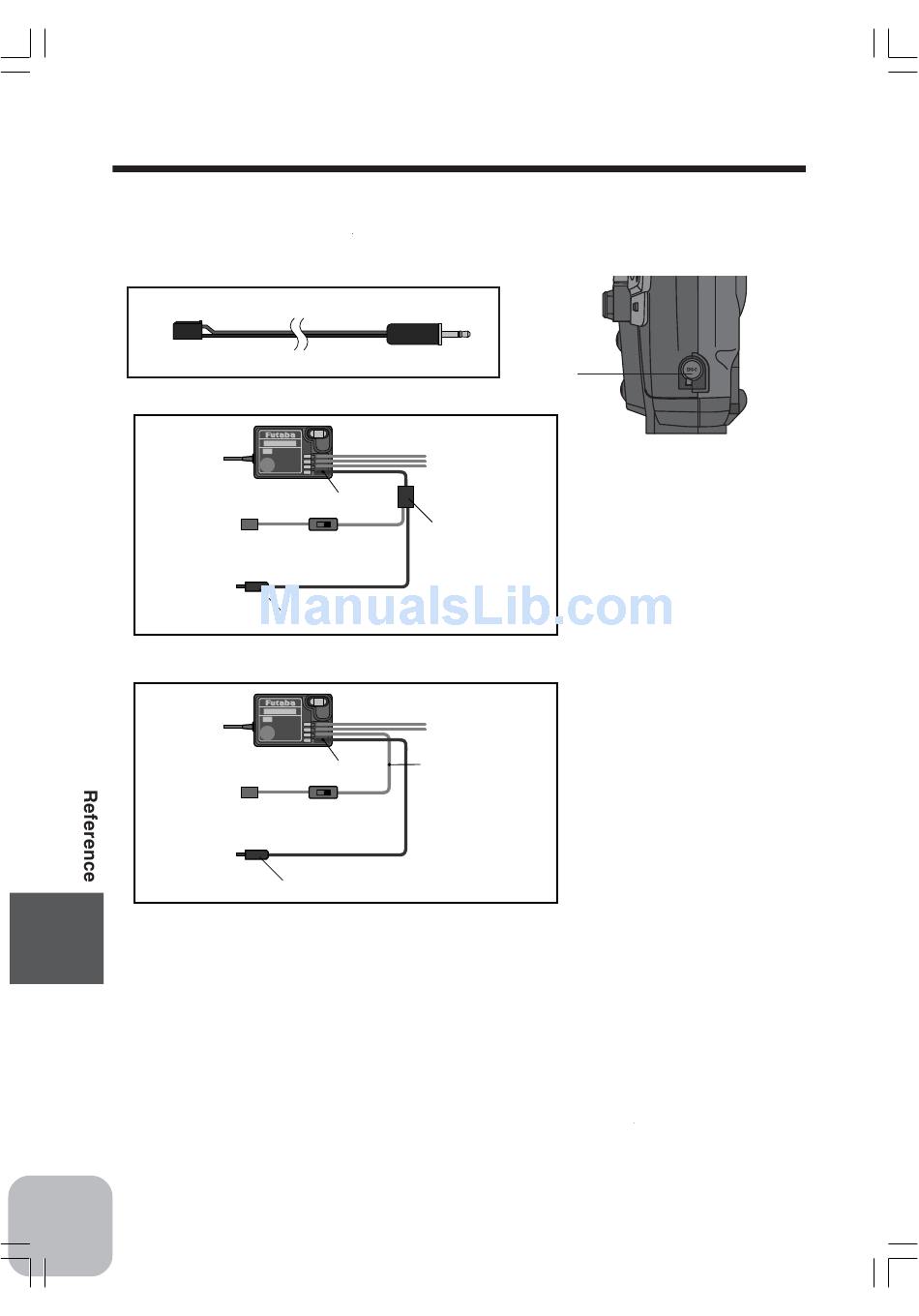

DSC cord
When the T3PK transmitter and R113iP or R203HF receiver are connected with the
DSC cord, the servos can be operated without transmitting a signal. (DSC function)
Part name
DSC cord for 3VC
Connection
To receiver battery
To transmitter DSC jack
To receiver battery
To transmitter DSC jack
104
1
To servos
2
3
B/C
Receiver
Connected to B/C
Y-Adapter
Receiver switch
DSC cord
To servos
1
2
3
B/C
Receiver
Connect to CH3
Connect to B/C
Receiver switch
DSC cord
DSC jack
(Interior)
- When used fully up to channel 3, the
Y-Adapter must be purchased sepa-
rately.
- When channel 3 is not used, connect
the receiver switch to CH3 and con-
nect the DSC cord to the B/C terminal.
