Audio connector board

Description
Audio connector board (includes cable)
Before removing the audio connector board, follow these steps:
1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the
computer on, and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet and
then unplugging the AC adapter from the computer.
4. Remove the battery (see
5. Remove the following components:
a.
b.
c.
d.

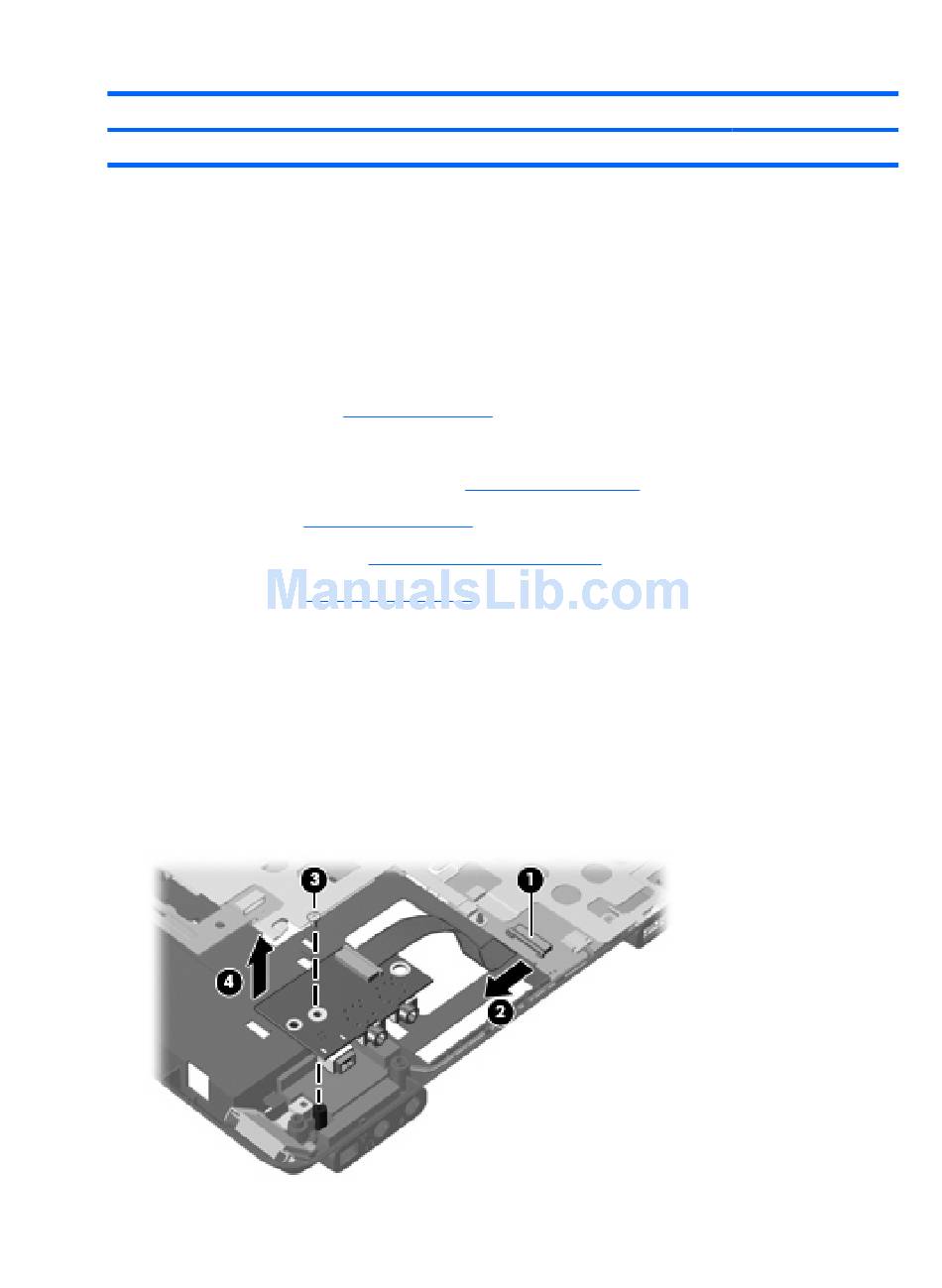

Remove the audio connector board:
1. Release the ZIF connector (1) to which the audio connector board cable is connected and
disconnect the audio connector board cable (2) from the system board. The audio connector board
cable is included with the audio connector board and is also available in the Cables Kit, spare part
number 454682-001.
2. Remove the Phillips PM2.0×5.0 screw (3) that secures the audio connector board to the base
enclosure.
3. Remove the audio connector board and cable (4).
58 Chapter 4 Removal and replacement procedures
Battery on page
Hard drive compartment cover (see
Keyboard (see Keyboard on page
Rear plastic bezel (see
Top cover (see Top cover on page
39).
Hard drive on page
50)
Rear plastic bezel on page
54)
Spare part number
454690-001
41)
52)
