4.

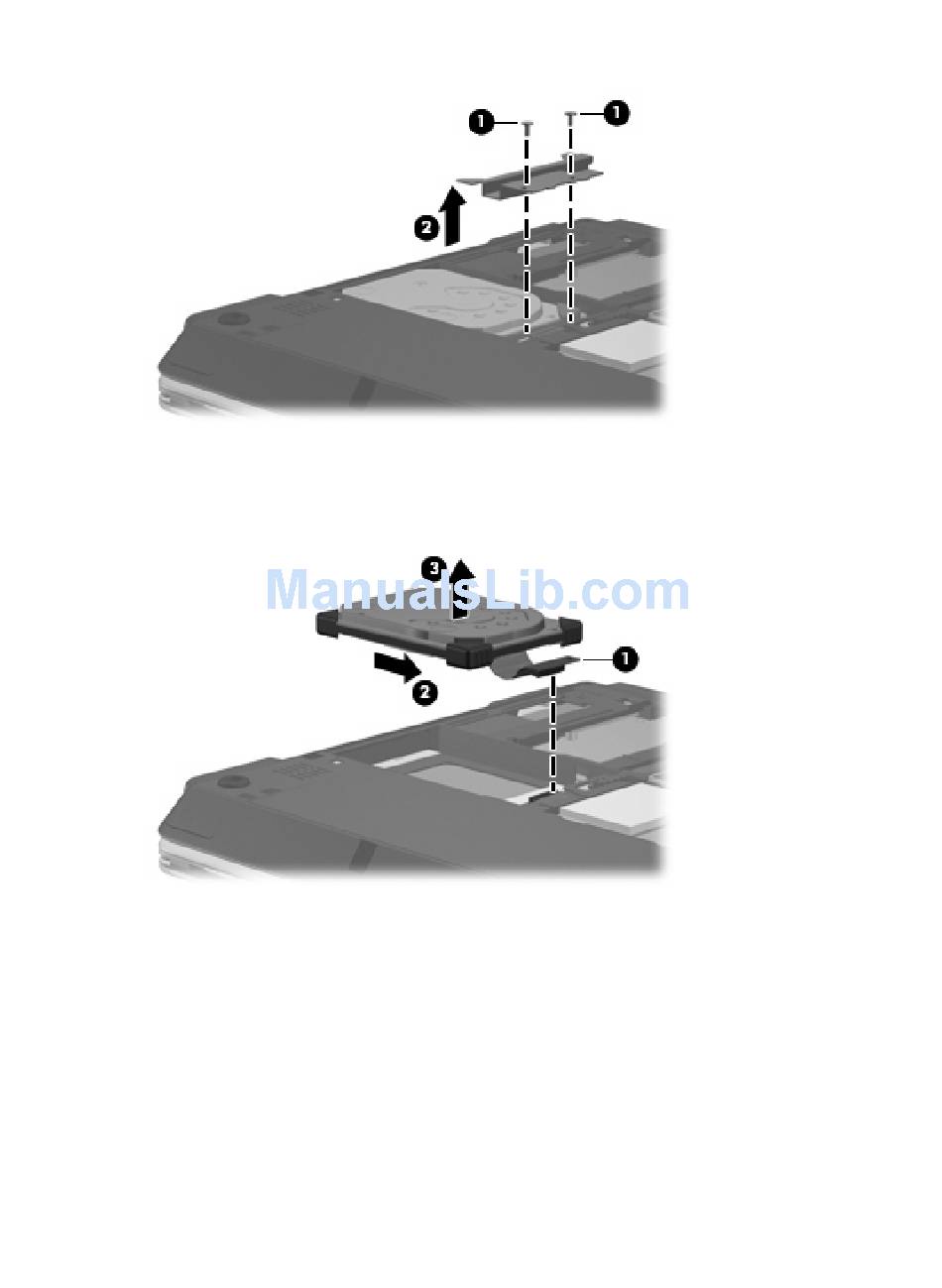

Remove the hard drive bracket (2).
5.
Disconnect the hard drive connector (1) from the system board.
6.
Release the hard drive (2) by sliding it to the right.
7.
Lift the hard drive (3) straight up to remove it from the hard drive compartment.
Reverse this procedure to install the hard drive.
42
Chapter 4 Removal and replacement procedures
