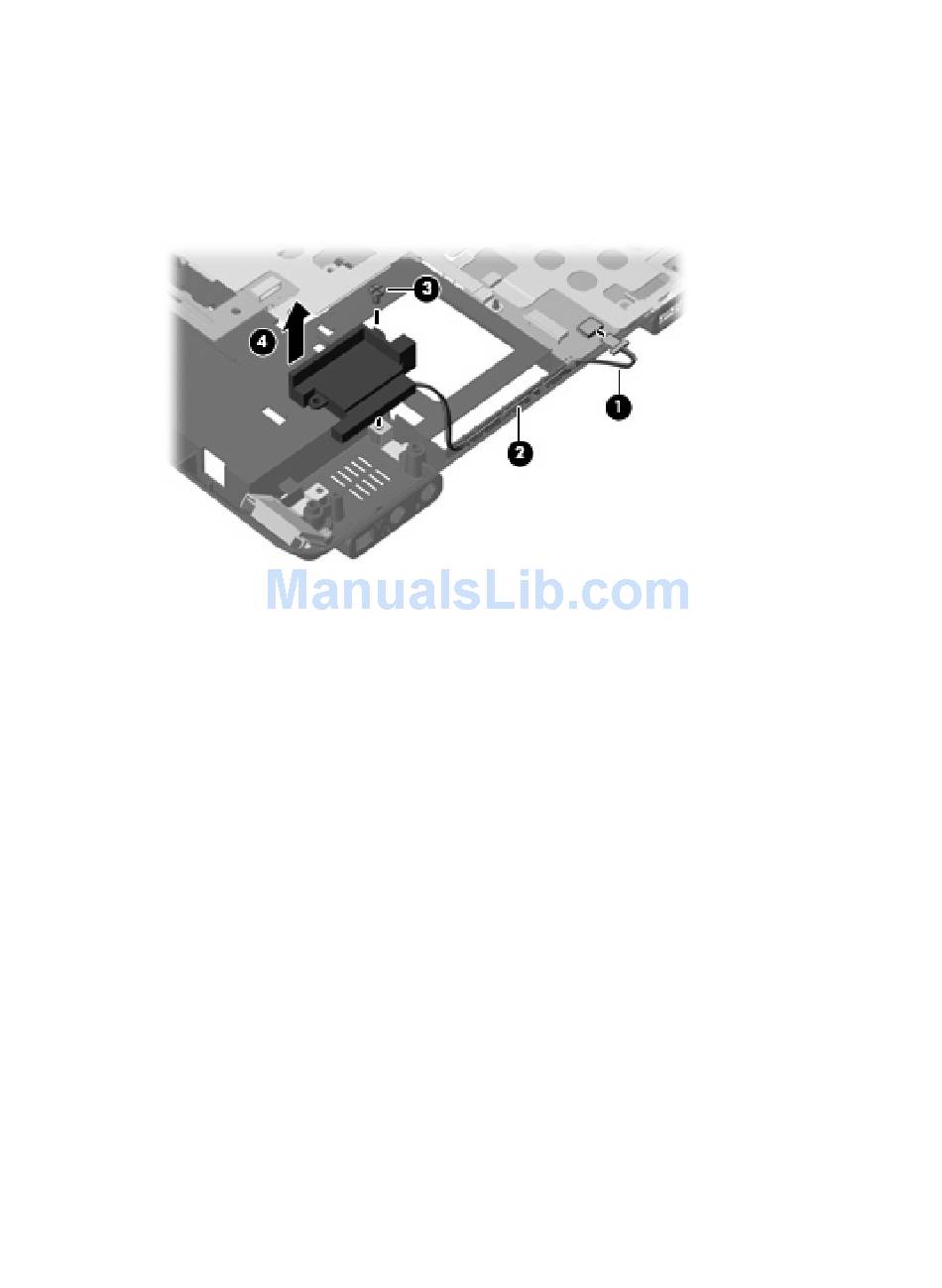

Remove the speaker:
1.
Disconnect the speaker cable (1) from the system board.
2.
Remove the speaker cable (2) from the clip built into the base enclosure.
3.
Remove the Phillips PM2.0×6.0 screw (3) that secures the speaker to the base enclosure.
4.
Remove the speaker (4) from the base enclosure.
Reverse this procedure to install the speaker.
Component replacement procedures
61
