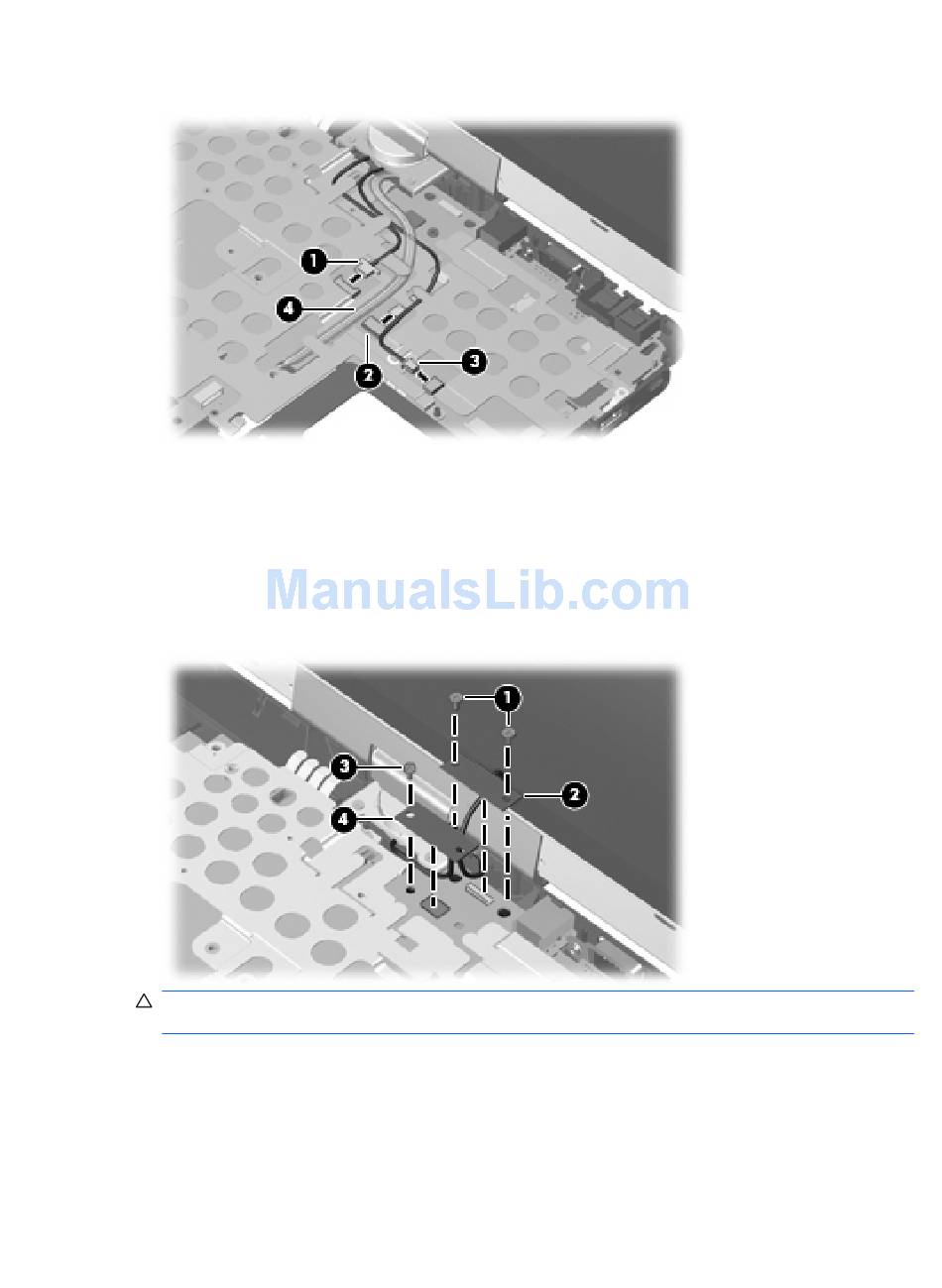

3. Remove the wireless antenna cables (4) from the hole in the system board and remove the cables
from the clips built into the system board shield.
4. Remove the two Phillips PM2.0×6.0 screws (1) that secure the display panel cable to the system
board.
5. Disconnect the display panel cable (2) from the system board.
6. Remove the Phillips PM2.0×4.0 screw (3) that secures the display converter cable to the system
board.
7. Disconnect the display converter cable (4) from the system board.
CAUTION: The display assembly will be unsupported when the following screws are removed.
To prevent damage to the display assembly, support it before removing the screws.
8. Remove the four Phillips PM2.5×7.0 screws (1) that secure the display assembly to the computer.
