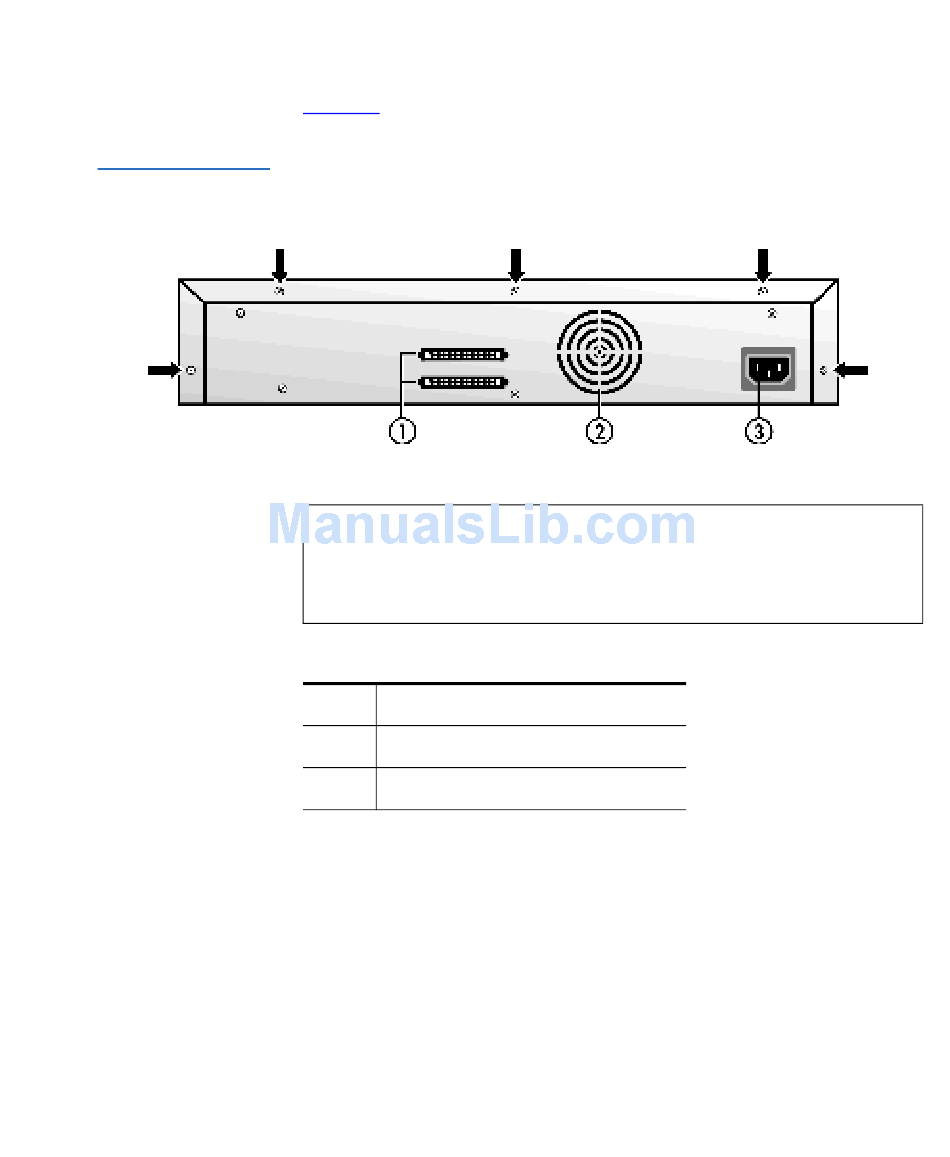

Figure 2 Rear Panel

Figure 2 describes the ValueLoader rear panel.
The arrows in the figure indicate screws that need to be
Note:
removed to remove the top cover. In addition to the
screws pictured, there are three screws on each side of
the ValueLoader.
1 68-pin SCSI connectors
2 Fan vent
3 Power connector
ValueLoader LTO Tape Autoloader User Manual
Installing the ValueLoader
Understanding ValueLoader Features
5
