Commend od5 Installation Instructions Manual page 11

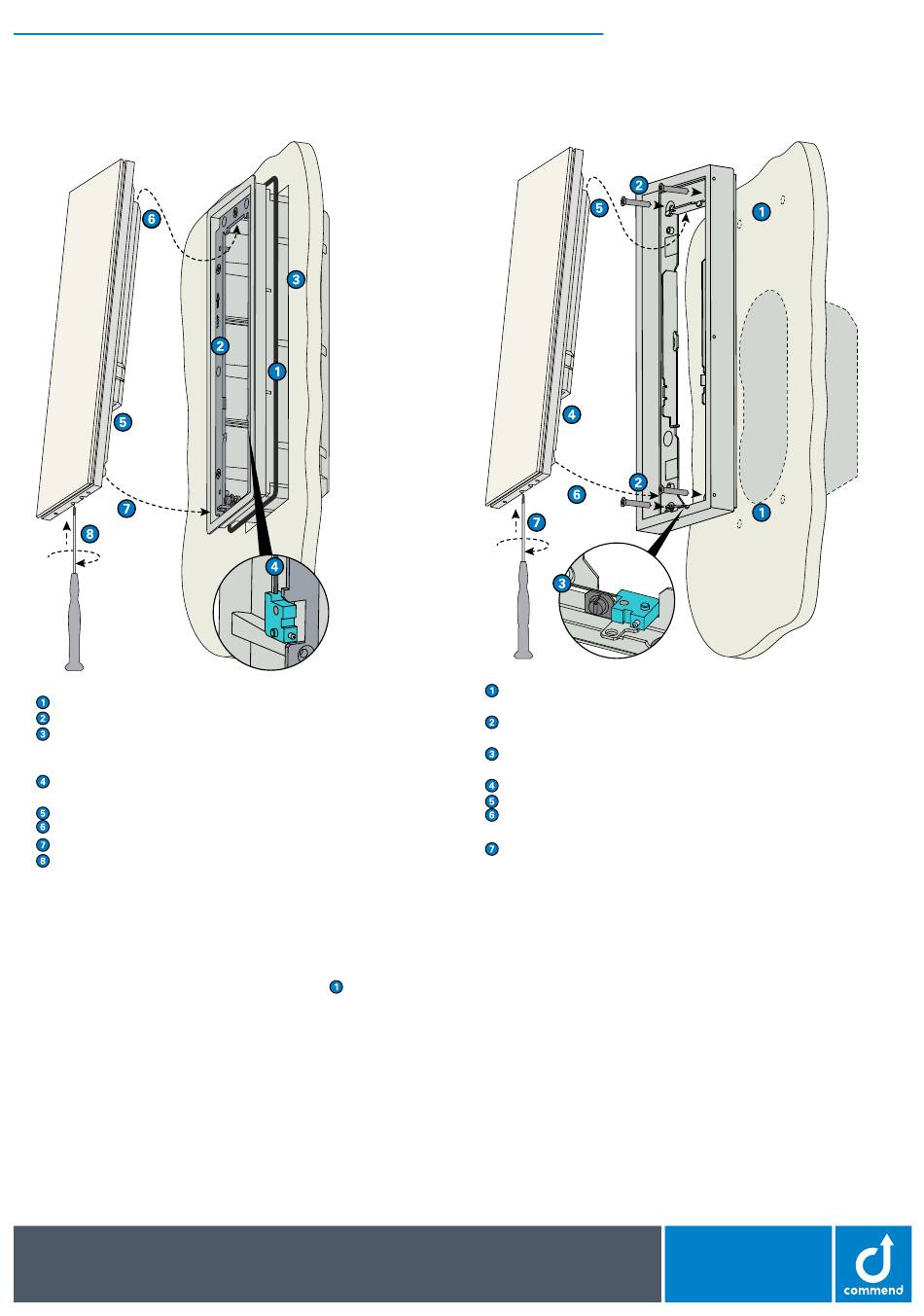

Wall mounting with XDX FB
If necessary, stick the supplied gasket onto the mounting box.
Make sure the arrows on the mounting frame point upwards.
Install the mounting box to the wall by means of the supplied drilling
template. Press the four claw clamps on the sides of the mounting box
outwards and tighten them using the corresponding screws (PZD2).
If required, mount the tamper switch TAMP-KIT (not included in the
extent of supply; for mounting details, see respective short reference).
Connect the cables.
Insert the Intercom station at the top of the mounting frame.
Press the Intercom station with its lower end onto the mounting box.
Turn the locking screw anti-clockwise down as far as it will go using
the TX8 screwdriver (included in the extent of supply of the Intercom
station). Check whether the lower end of the Intercom station is fixed on
the mounting frame.
NOTE:
For mounting on brick walls, additionally the flush mount box XDX FBS is
required (not included in the extent of supply). In this case, mount the flush
mount box XDX FBS in the wall and then continue with
od5
DATA SHEET V2.0/0224
The design and/or specifications of products may be subject to change for improvement without prior notice. Errors excepted.
Surface mounting with XDX SH
Drill four holes in the wall (see "Dimensions") and insert the supplied
wall plugs.
Install the surface mount kit to the wall using the supplied mounting
screws (the locking element must be at the lower end).
If required, mount the tamper switch TAMP-KIT (not included in the
extent of supply; for mounting details, see respective short reference).
Connect the cables.
Insert the Intercom station at the top of the surface mount kit.
Press the Intercom station with its lower end firmly onto the surface
mount kit.
Turn the locking screw anti-clockwise down as far as it will go using
the Tx08 screwdriver (included in the extent of supply of the Intercom
station). Check whether the lower end of the Intercom station is fixed on
the surface mount kit.
.
