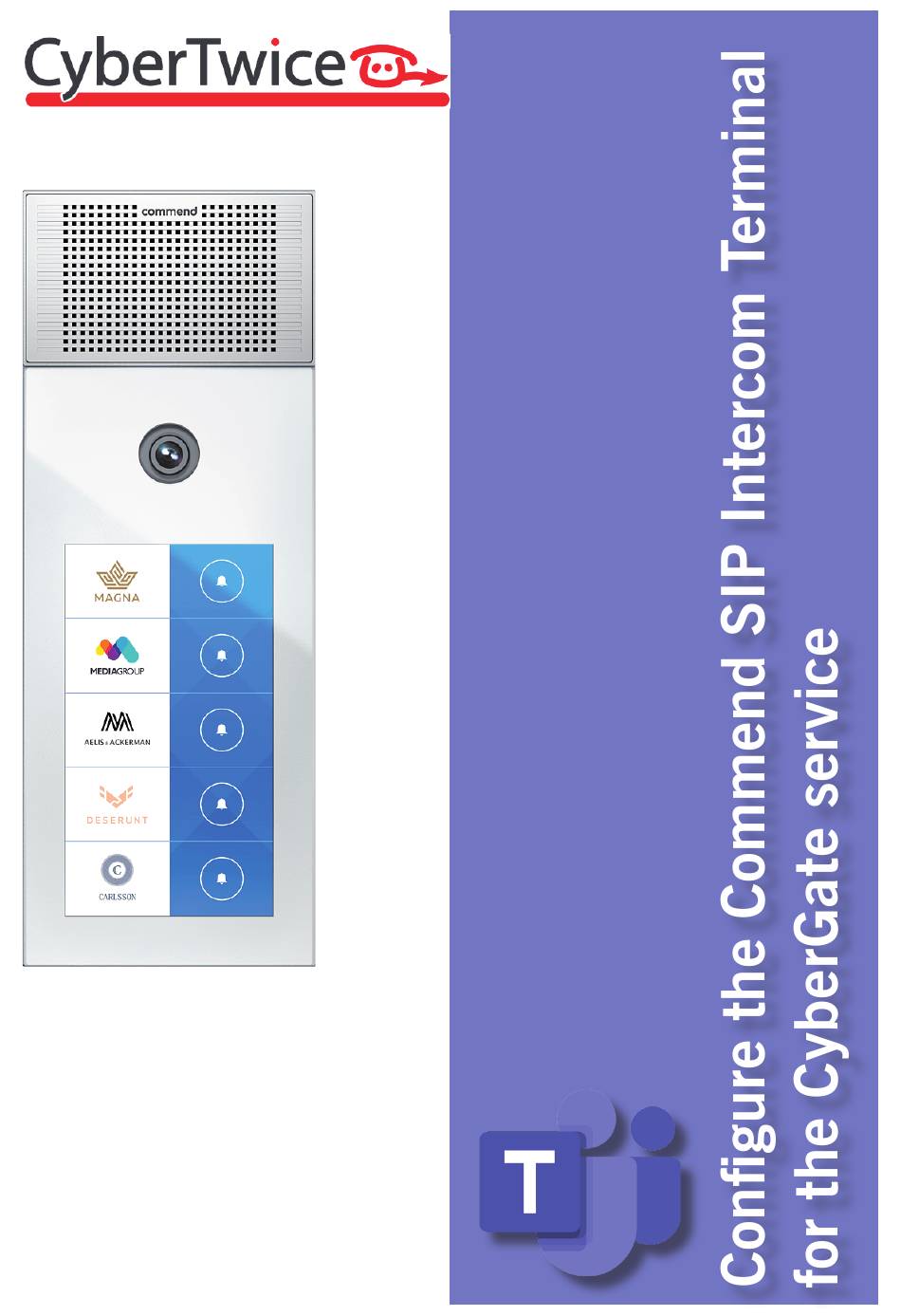

- Page 1 TechNote: Commend and CyberGate Version: 1.0.2 ENG Date: 26-08-2022...
- Page 2 Via the CyberGate application that runs in Microsoft Azure you can now connect a Commend SIP Intercom Terminal to your Microsoft Teams environment. Microsoft Teams users can answer incoming intercom calls – with 2-way audio and 2-way live video –...

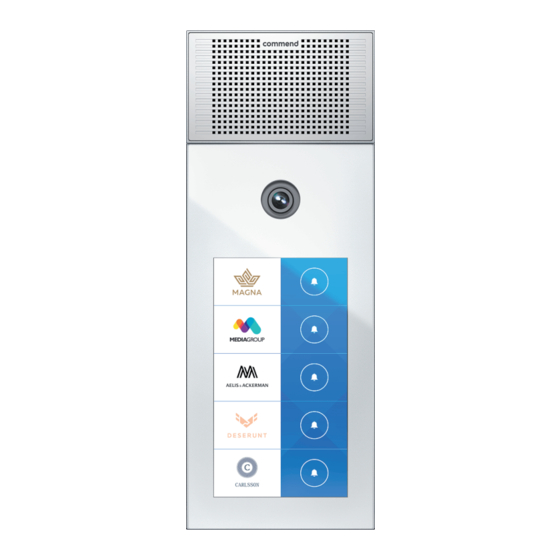

- Page 3 Commend SIP Intercom Terminal For this document we used the OD5 TDCM Outdoor Station (from now on named ‘Commend’). Other Commend SIP Intercom Terminals (OD10, ID5) will also be able to connect to the CyberGate service (from now on named ‘CyberGate’).
- Page 4 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service When signed-in successfully, navigate to the menu SIP-SIP . Provide the following information: SIP Servers Registration enabled Preferred IP Version IPv4 SIP server IP Address / cybergate.cybertwice.com Hostname Transport Portocol...
- Page 5 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service...
- Page 6 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Navigate to the menu SIP-Call Settings. Provide / change the following information: In Call Call Timeout enabled Call Timeout [m] Audio enabled Video enabled Outgoing (disable Incoming)
- Page 7 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Navigate to the menu Contacts-Contacts. Click the ‘+’ symbol to add a contact. Provide the following information: First name First name Last name Last name Teams user name followed by the domain ‘cybergate.cybertwice.com’...
- Page 8 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Navigate to the menu Device-Device. Change the layout to your preference, in this example it’s changed to ‘Door’.
- Page 9 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Provide the following information: Buttons - New button Text Descriptive name for the person to call (eg. reception / sales / person name) Action or Action Select the just created contact to call when the button is pressed Sequence Click the blue ‘Save’...
- Page 10 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Configuration is now done. Press the button on the Commend to initiate a call to the configured Teams User. If configured correctly, the Teams client will notify you of an incoming call. Answer it by clicking the camera symbol.
- Page 11 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Secure communication over SIP-TLS If a secure connection to CyberGate is desired, modify the configuration as follows: Navigate to the menu SIP-SIP . Provide the following information: SIP Servers...
- Page 12 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Configuration of the secure communication is done. All SIP and Audio/Video traffic to CyberGate will be encrypted. Check the registration status in the menu ‘Overview’.
- Page 13 CyberTwice Configure the Commend SIP Intercom Terminal for the CyberGate service Document History Document Version Date Author Change 1.0.0 06-07-2021 KR Initial version 1.0.1 12-07-2021 KR Fixed typos 1.0.2 26-08-2022 KR Added Security (SIP TLS and SRTP)
