Commend od5 Installation Instructions Manual page 8

od5
Installation instructions
Installation instructions
– Avoid direct sunlight.
– Install the Intercom station with a distance of min. 150 mm (6 in)
downwards to enable access to the locking screw (Tx08).
– For installing the Intercom station, the following mount kits are available
separately: XDX FB, XDX SH, XDX SHE, XDX SHMM, XDX SHID. For
mounting details, see corresponding short reference of the mount kit.
– Do not install the Intercom station on unstable walls or on surfaces
which cannot support the device's weight.
– Make sure the mount kit is not subject to torsional forces (e.g. on
uneven walls).
– No water may penetrate into the mount kit.
– For mounting with the surface mount kit XDX SH or the gypsum wall/
panel mount kit XDX FB, it is not possible to use an Ethernet field cable
with crimp connector for direct connection to the device due to space
limitations.
– If a field cable is used, it is recommended to install an RJ45 crimp jack
(e.g. MODJ8-8KUPPL) at the open end of the field cable. Use a patch
cable to connect the device to the RJ45 crimp jack.
– Use shielded Ethernet cables only.
– Before using the device, ensure all cables are correctly connected and
not damaged.
– Use moistened microfibre cloths for cleaning the Intercom station.
– This device is raintight according to IEC/UL 60950-22 ("Equipment to be
installed outdoors") with the following mounting kits: XDX FB, XDX SH
and XDX SHE.

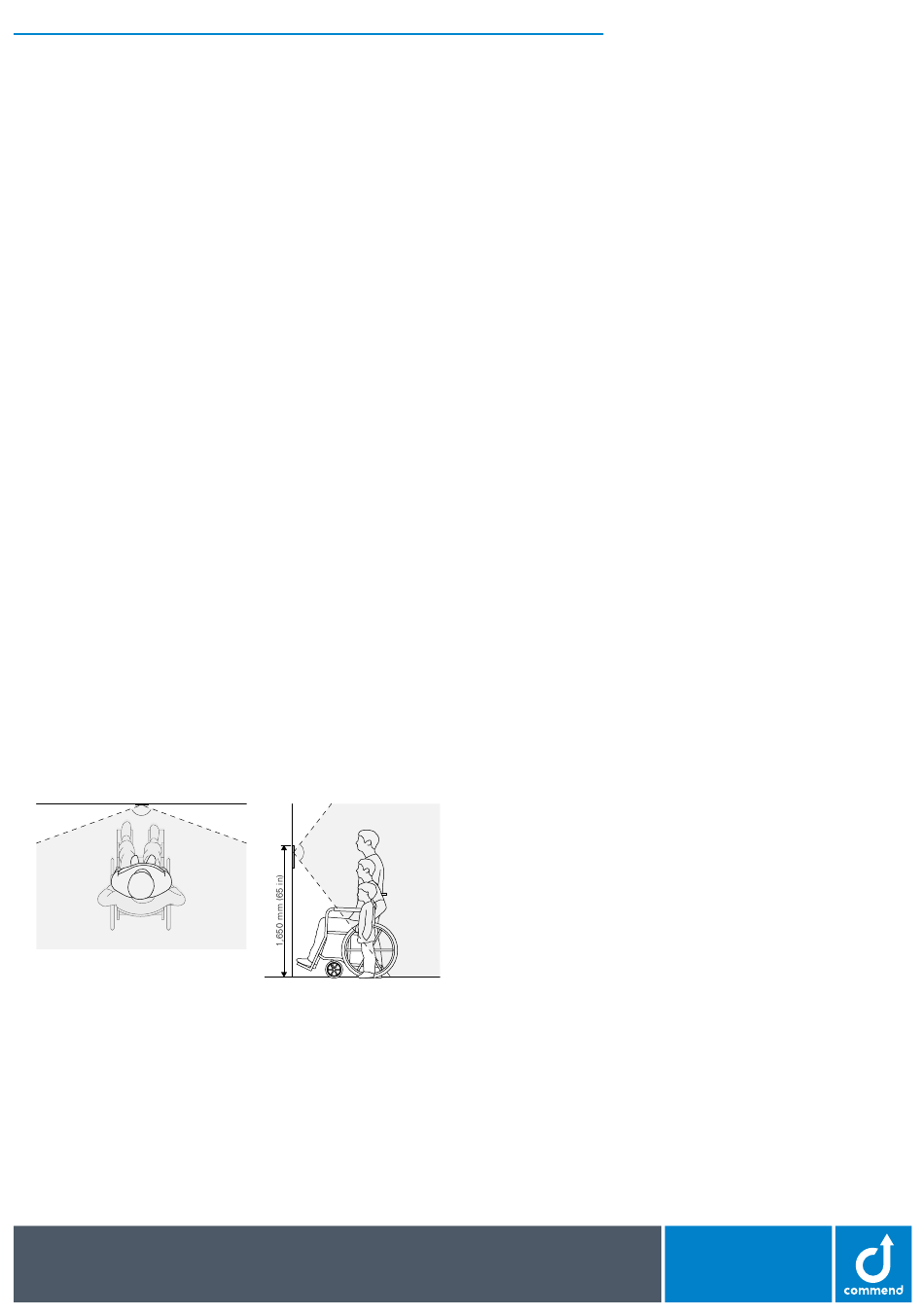

Recommended mounting height
The upper edge of the Intercom station approx. 1,650 mm (65 in) from the
finished floor. Adapt the mounting height to the individual needs.
125°
NOTES:
– For a barrier-free accessibility, it is recommended to mount the Intercom
station with sufficient distance to walls or corners.
– When mounting the Intercom station od5, pay attention to the correct
camera angle in terms of accessibility so that wheelchair users and
children can be detected by the camera:
100° (vertical) x 125° (horizontal)
od5
DATA SHEET V2.0/0224
The design and/or specifications of products may be subject to change for improvement without prior notice. Errors excepted.
100°
Security and Communication
Safety instructions
– This Intercom station shall be installed or replaced by trained and
qualified personnel only.
– Observe the country-specific standards for installation, mounting and
configuration.
– Only use Commend accessories that comply with the Intercom station's
technical specifications.
– Devices belonging to another earthing network must not be connected
to the device's connectors.
– All connected circuits shall fulfil the following requirements:
– Safety Extra Low Voltage (SELV) and
Limited Power Source (LPS) according to
IEC/EN 60950-1 or
– ES1, PS2 circuits and Annex Q (Limited Power Source) according to
IEC/EN/UL 62368-1.
– The front of the Intercom station is made of glass. Do not use the Inter-
com station when the glass is damaged.
– Disconnect the Ethernet cable for any maintenance of the device.
– Do not make any modifications to the Intercom station.
– This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be deter-
mined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
Access
The device can be accessed through IPv4 (DHCP), IPv6 (link-local) and zero-
conf. For information on accessing the web interface, see the product manual.
|
IN 1
