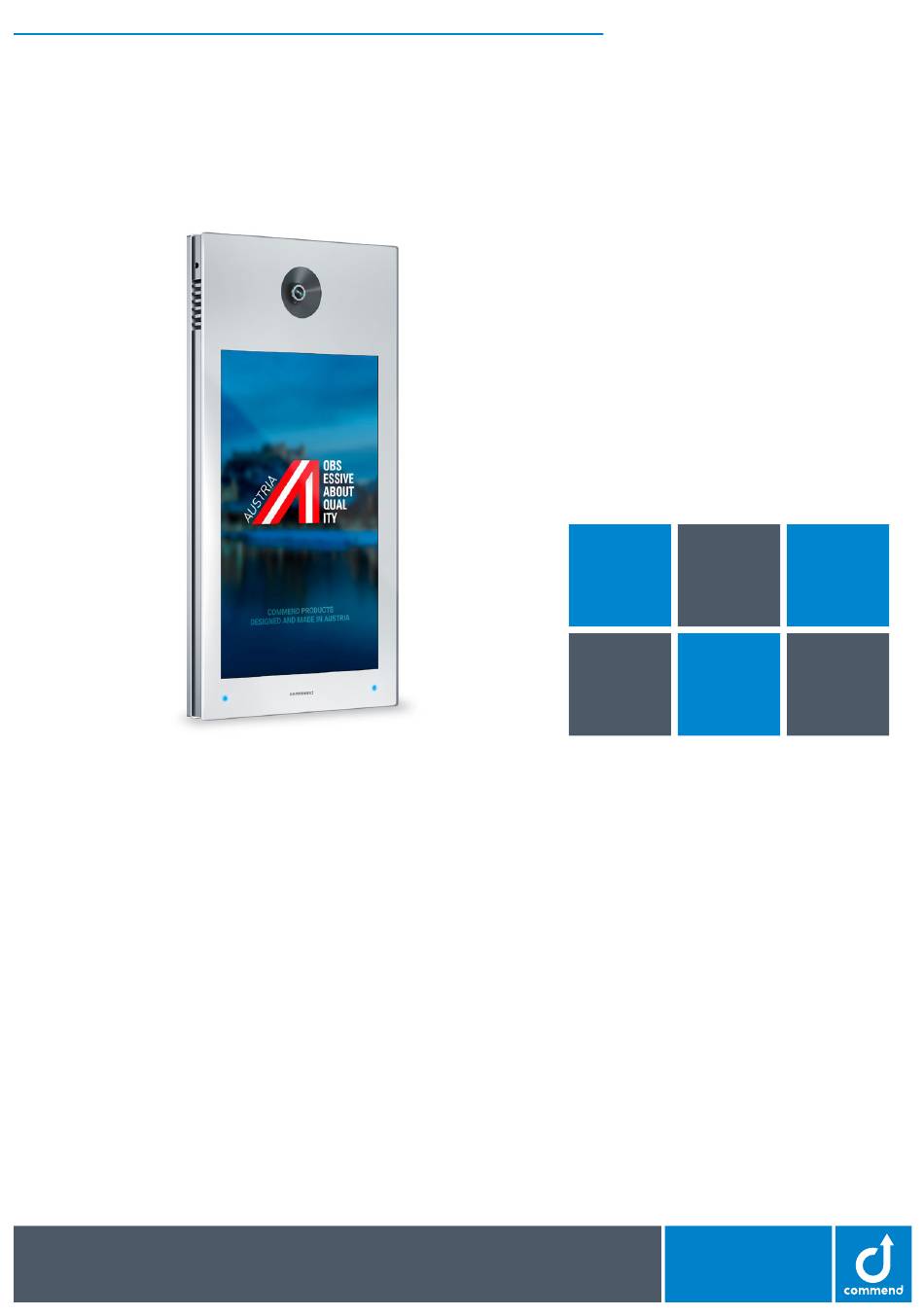

OD10 TD CM
High-end outdoor Intercom station, suitable for wall mounting
Powerful solution for outdoor areas
Touch display equipped Intercom stations by Commend are suitable for
any type of application requiring intuitive, yet precise user interaction.
While offering standard menus for features such as subscriber lists, the
graphical user interface can be adjusted to suit the user's requirements.
Options range from creating custom menus to integrating interactive
on-screen elements such as video feeds.
High-performance processors turn the OD10 TD CM into a communica-
tion powerhouse. With a dedicated emergency mode feature-set, the
Intercom station transforms from everyday use into an emergency sta-
tion for managing crises events. This also means you will be perfectly
prepared to meet the upcoming standards – such as EN 62820-2 – the
standard for Advanced Security Building Intercom Systems (ASBIS).
These high-end Intercom stations are crafted using high-quality materials,
including glass and anodised aluminium. Thanks to their timeless look,
they are ideally suited for use as multi-functional Intercom stations with
advanced security mode for modern office buildings.
Ready for Symphony Cloud Services
The Intercom stations can be connected to Symphony and use its ser-
vices. Symphony is the world's first cloud-based Intercom platform with
"Privacy and Security by Design" . Visit the Symphony website to find out
about the services currently available and if they are alredy offered in
your country.
symphony.commend.com
OD10 TD CM
DATA SHEET V1.3/0522
The design and/or specifications of products may be subject to change for improvement without prior notice. Errors excepted.
Security and Communication
Ready for
Symphony
Cloud
Modular
solution
Features and highlights
– Suitable for indoor and outdoor use
– High protection against vandalism (mechanical impact resistance IK07)
– Tamper detection (in combination with the surface mount kit OD10 SH or
with the drywall/panel kit OD10 FB)
– 3 mm thick, tampered front glass
– Innovative sound concept with two lateral loudspeakers and two digital
MEMS microphones
– Crystal-clear sound with up to 20 kHz speech quality and high volume
– Durable and resistant to wind and weather thanks to high-quality
components and IP65 rating
– Robust, daylight-ready 10.1˝ touch display with brilliant colour reproduction
– High-resolution wide view angle video camera
– Sophisticated housing concept for simple, safe installation
– Surface and flush mount kits with locking mechanism
– OpenDuplex for natural, hands-free communication with high-volume
®
– Permanent line and function testing
– Easy to extent with add-on equipment via USB interface
– 3 inputs for floating contacts and 2 relay outputs
– Motion detection for triggering action sequences
|
SA 1
Impact-
Weather-
proof
proof
IP65
IK07
10.1˝
Future-proof
system
touch display
