PRODUCT MANUAL
ENGLISH
GE 300
MANUAL VERSION 3.2/0617

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GE 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commend GE 300

Summary of Contents for Commend GE 300

  • Page 1 PRODUCT MANUAL ENGLISH GE 300 MANUAL VERSION 3.2/0617...
  • Page 2 GE 300 Manufacturer's Reference: This equipment fulfils the requirements of the EU standard 2014/30/EU (EMC). Therefore this equipment is CE-labelled. Please keep this description in safe custody! Legal Notice: The manufacturer guarantees the functionality of its products as described in the data sheets and / or tech- nical documentation.

  • Page 3: Table Of Contents

    Standard call numbers Available product variants Dynamic audio channel allocation Additional housing Technical data 2. Additional components Intercom Server basic housing GE 300 / GE 300WR General Expansion housing GEZ 300 Interface housing GEI 300 3. Assembly of components Remove housing cover...

  • Page 4: General Information

    This information box provides background knowledge which helps understand the basic principles behind different configurations and the application itself. Legend of requirements In the left-hand margin, requirements for the respective features are displayed as follows: Symbol Requirement  Required firmware version for the Intercom Server GE 300. 3.2/0617...

  • Page 5: Quick Start

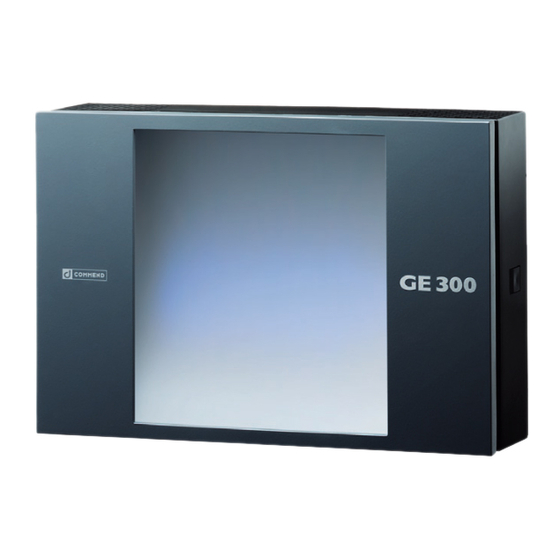

    Quick start Intercom Server GE 300 The Intercom Server GE 300/GE 300WR has been designed to meet the internal communication de- mands of small and middle sized companies and organisations. Different functions of modern internal communication such as Intercom, information and control can be integrated into a single system. By means of subscriber cards with different feature levels and additional interfaces the Intercom Server can be adapted to the individual needs with ease.

  • Page 6: Ge 300 Variants

    1. GE 300 variants GE 300 1. GE 300 variants The GE 300 is available in different versions, which mainly differ in their extent of supply. All variants of the GE 300 include the following functions:  Basic housing with five plug-in slots ...
  • Page 7 GE 300 1. GE 300 variants GE 300 without power supply unit Illustration of GE 300 without power supply unit  Delivery without power supply unit.  Free choice of power supply unit possible (e.g. „PA60W24V“). GE 300WR Illustration of GE 300WR ...

  • Page 8: Additional Housing

    (see page 24). Example: If an Intercom Server GE 300 is operated with an 60 W power supply unit, it is possible to supply max. 36 subscribers via the Intercom Server using a basic housing with an expansion housing. NOTES: Operating more digital subscribers If more digital subscribers are needed, the following options are available: ...

  • Page 9: Additional Components

    GE 300 2. Additional components 2. Additional components General In addition to the Intercom Server, for start up of the system the following components are required:  Subscriber cards: Subscriber cards handle the speech communication as well as subscriber specific functions. For connection of IP-based, digital and analogue subscribers, various cards are available in four feature levels (B, C, D and P).

  • Page 10: Assembly Of Components

    3. Assembly of components GE 300 3. Assembly of components ATTENTION: Exchanging cards Exchanging the cards may only be carried out while the power is switched off! Remove housing cover Press here to remove the housing cover GE 300 Attention Achtung: Darf nur durch geschultes Personal geöffnet werden...

  • Page 11: Plug-In Positions Of The Cards

    GE 300 3. Assembly of components Plug-in positions of the cards The plug-in cards can be inserted in the following slots: GE 300 GEZ 300 GEI 300 Maximum number of cards max. per max. per max. per Plug-in card 10 11 12...

  • Page 12: Connection Of Interface Housing Gei 300

    Connection of interface housing GEI 300 For plug-in cards in Euro format an interface housing GEI 300 is required (one GEI 300 per GE 300 In- tercom Server, the GEI 300 offers place for two interface cards). The interface housing GEI 300 is con-...

  • Page 13: Cabling

    120 mm For further information (4.7 inch) page Cable Cable bearer Cable clamp NAK 100 140 cm (55.1 inch) Analogue RJ11 socket 24 VAC Digital supply Analogue Overview mounting and cable run GE 300, GE 300WR, GEZ 300, GEI 300 3.2/0617...

  • Page 14: Ge 300 Mounting With Protection Against Contact

     Plug in the cable clamp NAK 100. ATTENTION: Mounting of snap ferrite  When installing the snap ferrite, make sure that the components between the housings of GE 300 and GEZ 300 will not be damaged (e.g. in case of vibrations)! ...

  • Page 15: Connection Diagram Ge 300, Gez 300, Gei 300

     For GE 300 and GEZ 300 two separate power supply units (galvanically isolated) have to be used!  When using the plug-in card G3-8E8A in the GE 300 or GEZ 300, four pins of the mainboard remain unused! 3.2/0617...

  • Page 16: Connection Diagram Ge 300Wr

     For GE 300WR and GEZ 300 two separate power supply units (galvanically separated) have to be used!  When using the plug-in card G3-8E8A in the GE 300 or GEZ 300, four pins of the mainboard remain unused! 3.2/0617...

  • Page 17: Connection To The Network

    GE 300 4. Cabling Connection to the network GE 300 LED1 Uplink Connection to network / switch G3-GEM Connection of the Intercom server to the network Connection subscriber cards  Digital and analogue Intercom terminals are connected directly to the subscriber cards.

  • Page 18: Connection Of Input/Output Cards

    4. Cabling GE 300 2-wire subscriber cards G3-GED-4 blue green Status LEDs Overview 2-wire subscriber card G3-GED-4 Connection of input/output cards ATTENTION: No voltage at inputs No voltage may be connected to the inputs! Only FLOATING CONTACTS like e.g. relay contacts,...
  • Page 19 GE 300 4. Cabling Output card G3-16A Status indication Status LEDs output card for S1 - S8 Overview output card G3-16A Input card G3-16E Status indication Status LEDs input card for IN1 - IN8 Overview input card G3-16E 3.2/0617...

  • Page 20: Configuration Cct 800

    GE 300 5. Configuration CCT 800 Configuration via IP or RS-232 Configuration of GE 300 Intercom Servers can be carried out via a RS-232 or standard network cable. NOTES: Configuration  It is not recommended to use RS-232 to USB adapters.

  • Page 21: Start-Up Of A Networked System

    Dialogue “New Intercom Server” 2. In the server area, right-click and select “add Intercom Server”. 3. Activate the radio button GE 300. 4. In the field Server-ID, enter the desired server ID and click on OK. Repeat this steps for all further housings.
  • Page 22 ID has been changed, this ID is shown in the field Server-ID. Configuration of IP network settings Auto-configuration of the network When a GE 300 is initialized an IP address is automatically generated for the G3-GEM card: Server ID G8-GEM 10.10.1.1...
  • Page 23 GE 300 5. Configuration CCT 800 Configuration of bandwidth usage It is possible to configure the maximum bandwidth used in the network by the Intercom Server. Configuration CCT 800  IP - Settings > tab Extended Settings  In the drop-down list Bandwidth in kBit, select the bandwidth, which is used in the network by the G3-GEM card for data and speech.

  • Page 24: Configuration Power Management

     By default, the Intercom Server GE 300 is powered with a 30 W power supply unit, whereby the number of usable digital subscribers is limited. With using a 60 W (with PRO 800 6.0 or higher) or 70 W power supply unit, the number of usable digital subscribers can be increased.

  • Page 25: General Information

    GE 300 General information General information Expansion Basic expansion Max. expansion Subscribers Outputs For further information see page 11 Inputs Line length subscribers Station Series EE 311A, EE 811A Maximum cable length at diameter Cable type Reference Capacity/km 24 VDC...
  • Page 26 General information GE 300 Station Series EE 411 All data about line lengths (series EE 411 with and without display) correspond to a loudspeaker atten- uation of approx. 9 dB and a microphone attenuation of approx. 3 dB. 9 dB correspond to approx. 3 volume steps adjusted at an EE 411, 3 dB refer to approx.

  • Page 27: Standard Call Numbers

    GE 300 General information Standard call numbers ATTENTION: Changing automatic allocated calling numbers The standard calling numbers, that are automatically allocated to the housings (see page 27), must be changed if more than 9 housings are connected! Otherwise, three- and four-digit numbers begin with the same numerical sequence (e.g.

  • Page 28: Dynamic Audio Channel Allocation

    Dynamic audio channel allocation Maximum number of conversations Intercom Server GE 300 internal The Intercom Server GE 300 has 128 internal channels. One conversation requires:  4 channels for 16 kHz audio  4 channels for 7 kHz audio  4 channels for 3.5 kHz audio ...

  • Page 29: Technical Data

    200 mAh with cards see corresponding datasheet Power consumption: GE 300: depending on settings in CCT 800 max. 30 W, 60 W or 70 GE 300WR: max. 30 W Frequency range: 50 HZ to 15 kHz (–3 dB) Distortion: less than 0.9%...

  • Page 30: Interface Housing Gei 300

    Technical data GE 300 Interface housing GEI 300 Power supply: from GE 300/GE 300WR or GEZ 300 Emergency power consumption: without cards: no power consumption with cards: see corresponding datasheet Operating temperature range: 0 °C to +50 °C (+32 °F to +122 °F) Storage temperature range: –30 °C to +60 °C (–22 °F to +140 °F)

  • Page 31: Led-Status Indication

    The LED of the expansion housing GEZ 300 is switched on permanently, and is not used as status in- dication, only as indication for the connected power supply. The GEZ 300 has no own ON/OFF-switch, it is switched with the ON/OFF switch of the basic housing GE 300. Subscriber cards...

  • Page 32: Input/Output Cards

    LED-status indication GE 300 Input/output cards For further information about LED positions see page Status input/output card  LED is blinking in a one second rhythm: the card is working correctly.  LED is permanently off: no power or hardware fault.

  • Page 33: Technical Support

    GE 300 Technical Support Technical Support For more information about our products and services, visit: www.commend.com 3.2/0617...
