PRODUCT MANUAL
ENGLISH

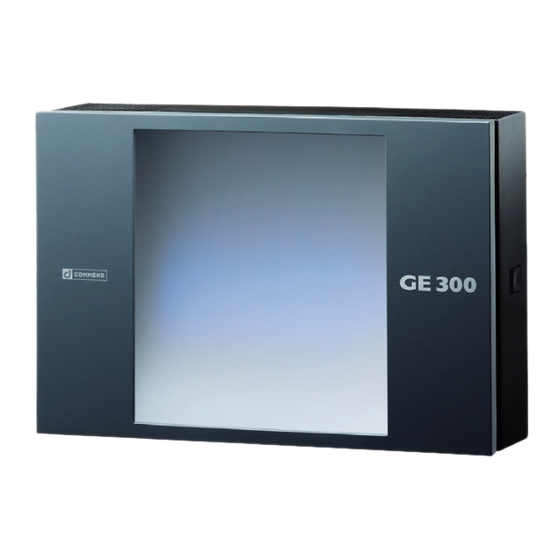

GE 300
MANUAL VERSION 3.3/0518

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GE 300 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Commend GE 300

Summary of Contents for Commend GE 300

  • Page 1 PRODUCT MANUAL ENGLISH GE 300 MANUAL VERSION 3.3/0518...
  • Page 2 GE 300 Manufacturer's Reference: This device complies with the European directives listed below by fulfilling corresponding standards:  Electromagnetic compatibility (directive 2014/30/EU)  Electrical equipment designed for use within certain voltage limits (directive 2014/35/EU)  The restriction of the use of certain hazardous substances in electrical and electronic equip-...

  • Page 3: Table Of Contents

    Standard call numbers Available product variants Maximum number of conversations Additional housing Technical data 2. Additional components Intercom Server GE 300 / GE 300WR General Expansion housing GEZ 300 Interface housing GEI 300 3. Assembly of components Remove housing cover...

  • Page 4: General Information

    This information box provides background knowledge which helps understand the basic principles behind different configurations and the application itself. Legend of requirements In the left-hand margin, requirements for the respective features are displayed as follows: Symbol Requirement Required firmware version for the Intercom Server GE 300. 3.3/0518...

  • Page 5: Quick Start

    Quick start Intercom Server GE 300 The Intercom Server GE 300/GE 300WR has been designed to meet the internal communication de- mands of small and middle sized companies and organisations. Different functions of modern internal communication such as Intercom, information and control can be integrated into a single system. By means of subscriber cards with different feature levels and additional interfaces the Intercom Server can be adapted to the individual needs with ease.

  • Page 6: Ge 300 Variants

    1. GE 300 variants GE 300 1. GE 300 variants The GE 300 is available in different versions, which mainly differ in their extent of supply. All variants of the GE 300 include the following functions:  Intercom Server with five plug-in slots ...
  • Page 7 GE 300 1. GE 300 variants GE 300 without power supply unit Illustration of GE 300 without power supply unit  Delivery without power supply unit.  Free choice of power supply unit possible (e.g. „PA60W24V“). GE 300WR Illustration of GE 300WR ...

  • Page 8: Additional Housing

    (see page 23). Example: If an Intercom Server GE 300 is operated with an 60 W power supply unit, it is possible to supply max. 36 subscribers via the Intercom Server using an Intercom Server with an expansion hous- ing.

  • Page 9: Additional Components

    GE 300 2. Additional components 2. Additional components General In addition to the Intercom Server, for start up of the system the following components are required:  Subscriber cards: Subscriber cards handle the speech communication as well as subscriber specific functions. For connection of IP-based, digital and analogue subscribers, various cards are available in four feature levels (B, C, D and P).

  • Page 10: Assembly Of Components

    3. Assembly of components GE 300 3. Assembly of components ATTENTION: Exchanging cards Exchanging the cards may only be carried out while the power is switched off! Remove housing cover Press here to remove the housing cover GE 300 Attention Achtung: Darf nur durch geschultes Personal geöffnet werden...

  • Page 11: Plug-In Positions Of The Cards

    The plug-in cards can be inserted in the following slots: GE 300 GEI 300 Maximum number of cards GEZ 300 Card type 10 11 12 per GE 300 per GEZ 300 per GEI 300      ...

  • Page 12: Connection Of Interface Housing Gei 300

    Connection of interface housing GEI 300 For plug-in cards in Euro format an interface housing GEI 300 is required (one GEI 300 per GE 300 In- tercom Server, the GEI 300 offers place for two interface cards). The interface housing GEI 300 is con-...

  • Page 13: Cabling

    For further information page Cable Cable bearer Cable clamp NAK 100 140 cm (55.1 in) Analogue RJ11/RJ45 socket 24 VAC Digital supply Digital Overview mounting and cable run GE 300, GE 300WR, GEZ 300, GEI 300 3.3/0518...

  • Page 14: Ge 300 Mounting With Protection Against Contact

     Plug in the cable clamp NAK 100. ATTENTION: Mounting of snap ferrite  When installing the snap ferrite, make sure that the components between the housings of GE 300 and GEZ 300 will not be damaged (e.g. in case of vibrations)! ...

  • Page 15: Connection Diagram

    ATTENTION: Installation GE 300, GE 300WR and GEZ 300  For DC power supply of the combination of a GE 300 and GEZ 300, one of the components must be supplied via an additional galvanically isolated DC/DC power supply. This does not apply to the com- bination of a GE 300WR and GEZ 300, as the GE 300WR comes with a built-in galvanically isolated DC/DC power supply.

  • Page 16: Connection To The Network

    4. Cabling GE 300 Connection to the network GE 300 LED1 Uplink Connection to network / switch G3-GEM Connection of the Intercom server to the network Connection subscriber cards  Digital and analogue Intercom terminals are connected directly to the subscriber cards.

  • Page 17: Connection Of Input/Output Cards

    GE 300 4. Cabling 2-wire subscriber cards G3-GED-4 blue green Status LEDs Overview 2-wire subscriber card G3-GED-4 Connection of input/output cards ATTENTION: No voltage at inputs No voltage may be connected to the inputs! Only FLOATING CONTACTS like e.g. relay contacts,...
  • Page 18 4. Cabling GE 300 Output card G3-16A Status indication Status LEDs output card for S1 - S8 Overview output card G3-16A Input card G3-16E Status indication Status LEDs input card for IN1 - IN8 Overview input card G3-16E 3.3/0518...

  • Page 19: Configuration Cct 800

    5. Configuration CCT 800 5. Configuration CCT 800 Configuration via IP or RS-232 Configuration of GE 300 Intercom Servers can be carried out via a RS-232 or standard network cable. NOTES: Configuration  It is not recommended to use RS-232 to USB adapters.

  • Page 20: Start-Up Of A Networked System

    5. Configuration CCT 800 GE 300 Start-up of a networked system In networked systems each Intercom Server housing must be advised a unique number (server ID). Setting the numbers with DIP switches 1. Initialise each housing with the desired number (1 to 14): ...
  • Page 21 Dialogue “New Intercom Server” 2. In the server area, right-click and select “add Intercom Server”. 3. Activate the radio button GE 300. 4. In the field Server-ID, enter the desired server ID and click on OK. Repeat this steps for all further housings.
  • Page 22 5. Configuration CCT 800 GE 300 Configuration of IP network settings Auto-configuration of the network When a GE 300 is initialised an IP address is automatically generated for the motherboard G3-GEM: Server ID G3-GEM 10.10.1.1 10.10.2.1 10.10.3.1 Configuration CCT 800 1.

  • Page 23: Configuration Power Management

    Configuration power management By default, the Intercom Server GE 300 is powered with a 30 W power supply unit, whereby the number of usable digital subscribers is limited. With using a 60 W (with PRO 800 6.0 or higher) or 70 W power supply unit, the number of usable digital subscribers can be increased.

  • Page 24: General Information

    General information GE 300 General information Expansion Basic expansion Max. expansion Subscribers Outputs For further information see page 11 Inputs Line length subscribers IP stations The maximum line length of Cat.5 cables may not surpass 100m (e.g.: from switch to the ET 908H).

  • Page 25: Standard Call Numbers

    GE 300 General information Standard call numbers ATTENTION: Changing automatic allocated calling numbers The standard calling numbers, that are automatically allocated to the housings (see page 25), must be changed if more than 9 housings are connected! Otherwise, three- and four-digit numbers begin with the same numerical sequence (e.g.

  • Page 26: Maximum Number Of Conversations

    General information GE 300 Maximum number of conversations Conversations within an Intercom Server GE 300 In the following table, the max. number of simultaneously call types within an Intercom Server GE 300 are listed: Call type Max. number All Call/radio conference/music with 7 or 16 kHz 1) 2) All Call/radio conference/music with 3.5 kHz...
  • Page 27 GE 300 General information Transmission over GEP-LAN card (L3-LAN4) In the following table, the max. number of simultaneously call types per GEP-LAN card (L3-LAN4) over connections to other Intercom Servers are listed: Call type Max. number All Call/radio conference/music with 16 kHz (G.722) All Call/radio conference/music with 7 kHz (G.711)

  • Page 28: Technical Data

    Emergency power consumption: without cards: 200 mAh with cards see corresponding data sheet Power consumption: GE 300: depending on settings in CCT 800 max. 30 W, 60 W or 70 W GE 300WR: max. 30 W Frequency range: 50 HZ to 15 kHz (–3 dB) Total harmonic distortion: <...

  • Page 29: Interface Housing Gei 300

    GE 300 Technical data Interface housing GEI 300 Power supply: from GE 300 / GE 300WR or GEZ 300 Emergency power consumption: without cards: no power consumption with cards: see corresponding data sheet Operating temperature range: 0 °C to +50 °C (+32 °F to +122 °F) Storage temperature range: –30 °C to +60 °C (–22 °F to +140 °F)

  • Page 30: Led-Status Indication

    The LED of the expansion housing GEZ 300 is switched on permanently, and is not used as status in- dication, but rather only as an indication for the connected power supply. The GEZ 300 does not h its own ON/OFF-switch. It is switched with the ON/OFF switch of the Intercom Server GE 300. 3.3/0518...

  • Page 31: Ip-Network Card G3-Lan

    GE 300 LED-status indication IP-network card G3-LAN Network card to connect the Intercom Server GE 300 via Ethernet. Network card G3-LAN LED status indication “RUN” LED-status Description LED is blinking in a one The card is working correctly second rhythm...

  • Page 32: Voip Card G3-Iax

    LED-status indication GE 300 VoIP card G3-IAX Interface card to integrate VoIP standards via an IAX-capable VoIP Server. The card thereby offers a flexible VoIP interface for IAX connections, e.g. to G8-VOIP-SERV. VoIP card G3-IAX LED status indication “RUN” LED-status...

  • Page 33: Subscriber Cards

    IP-DSP-subscriber card to connect up to 8 IP subscribers via Ethernet (LAN/WAN). Up to 5 G3-IP cards can be used in one Intercom Server GE 300. The card is available in the feature levels B, C, D and P. The number of subscribers and the individual features can also be activated with a licence key.

  • Page 34: Input/Output Cards

    LED-status indication GE 300 Input/output cards Input/output card G3-8E8A Plug-in card with 8 inputs for floating contacts and 8 outputs, 4 of which are normally open contacts, normally closed contacts or switches and 4 of which are normally open contacts.
  • Page 35 GE 300 LED-status indication LED status indication “input/output card” LED-status Description LED is blinking in a one The card is working correctly second rhythm LED is permanently off No power, warm start or hardware fault LED is permanently on Waiting for connection to the main processor (during initialisation)

  • Page 36: Interface Cards

    2 9-pin D-Submin jacks for the connection to RS-232 (to link third-party systems, e.g. video switch, access control systems or control computers, via IP networks or RS-232 following the Commend Standard protocol to link an Intercom Server). S1 S2 Interface card G3-IF LED status indication “RUN”...
  • Page 37 GE 300 LED-status indication G3-S0-I Network cards to link the Intercom Server to ISDN (Integrated Services Digital Network). This card en- ables a connection to up to 100 Intercom Servers. Status-LEDs: Interface card G3-S0-I LED status indication “RUN” LED-status Description...

  • Page 38: Technical Support

    Technical Support GE 300 Technical Support For more information about our products and services, visit: www.commend.com 3.3/0518...
