System settings
The current settings of the system are displayed on the monitor at the bottom left.
As soon as the mouse is moved, the monitor displays the available settings and with which element of the mouse the
setting can be changed.

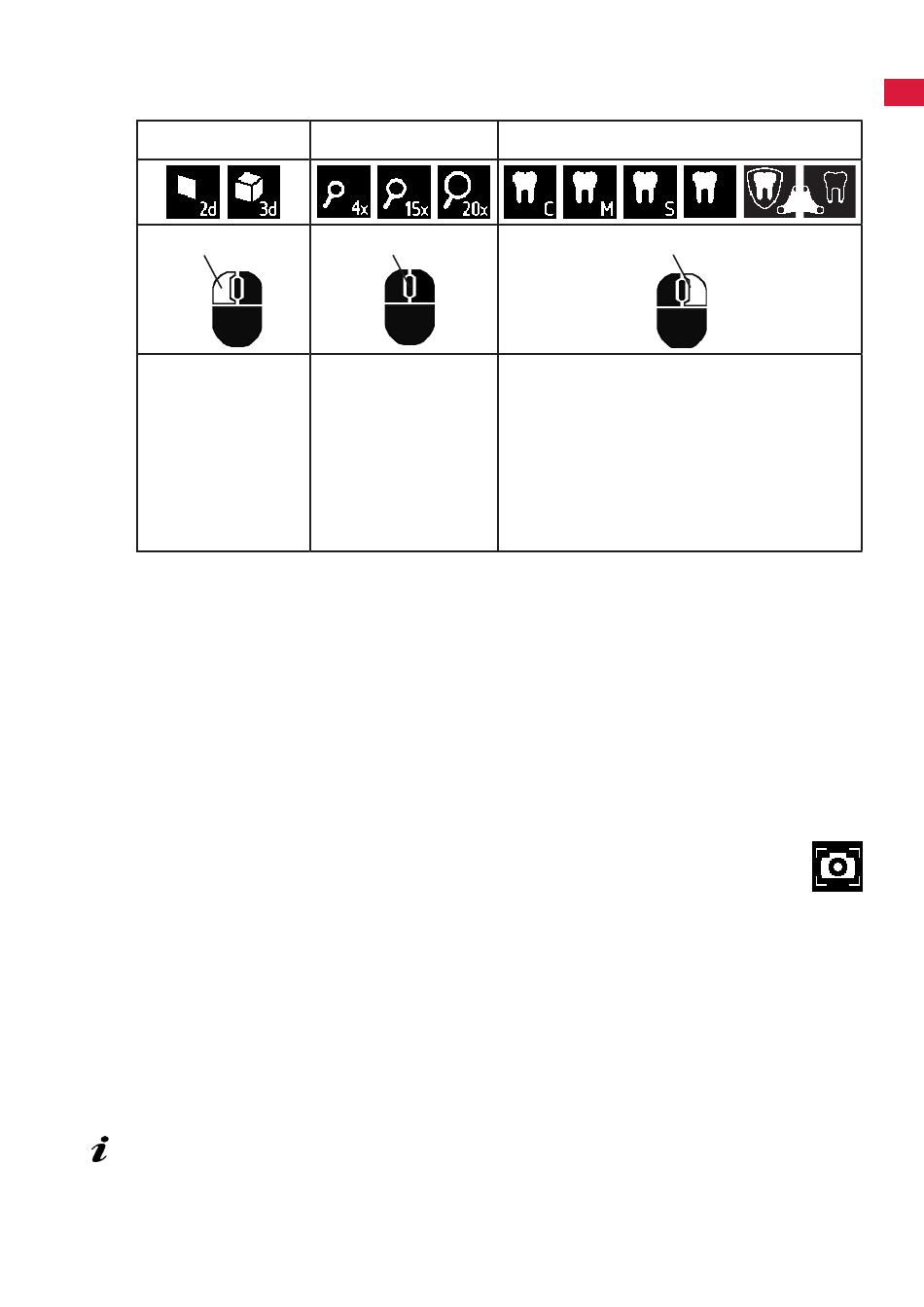

2D / 3D representation
A
⇒ Left mouse button (A)
♦ Switch between 2D
and 3D display
Screen shot / still image
Using the foot switch, the monitor image can be frozen (still image) or also stored on the USB memory stick (screen
shot).
Still image
⇒ Press the foot switch for more than 1 sec.
♦ The still image is displayed, meaning the monitor image is frozen.
While the still image is displayed, the following actions can be performed:
⇒ Briefly press the foot switch.
♦ The screen contents are saved to the USB stick as a screen shot.
⇒ Press the foot switch for more than 1 sec.
♦ Switch back to the live image.
Saving a screen shot
Screen shots are only saved as 2D images.
⇒ Briefly press the foot switch.
♦ The screen contents are saved to the USB stick as a screen shot.
♦ The screen shot icon appears on the monitor.
♦ The file name is displayed on the monitor during the save operation.
♦ No other actions are possible during the save operation (approx. 5 sec.).
The file name has the following format:
• IMGxxx.jpg
• xxx = sequential counter 000 to 999
If the USB memory stick is then connected to a PC, the file names can be changed as usual, for example, to assign
them to a customer.
Accessing the USB stick via a network
If the EASY view+ 3D head is connected to a local network via the network port (25,) and the network extension cable
(already inserted in the cable channel), the images (screen shots) of the USB stick in the head can be accessed over
the network. Details can be found in the instructions for use in the internet.
Working with 3D
When working in 3D mode, the 3D goggles must be worn.
The 4x magnification does not allow for a 3D illustration.
Magnification
(4 x, 15 x, 20 x)
B
⇒ Mouse wheel (B) rotation
forward / backward
♦ Switch of magnification
between 4 x, 15 x and
20 x
⇒ Press / rotate the mouse
wheel (B)
♦ Adjust the brightness
of an object mode (see
instructions for use on
the internet).
- 5 -
Object mode (ceramic, metal, standard, neutral)
C
⇒ Right mouse button (C)
♦ Switch object modes
