Renfert EASY view+ Quick Start Manual page 10

Specific information
► Do not look into the lighting.
► As with all optical magnification systems, working with the system for long periods can lead to symptoms of
en
fatigue. Take breaks regularly.
► The 3D goggles do not replace protective eye equipment in any way.
Safety instructions for the monitor can be found in the instructions for use in the internet.
When using your own monitor, please follow its safety instructions!
Approved personnel
The appliance may only be operated and serviced by trained personnel.
Product description
General description
The EASY view+ 3D system consists of a head with two cameras, lighting and the image processing unit, as well as
a 3D-capable monitor including 3D goggles.
The product contains light sources of energy efficiency class F.
Assemblies and functional elements
See Fig. 1 (on inside cover)
1 Head
2 Support arm with base
3 Monitor
4 EASY view 3D power supply
5 Monitor power supply
6 Height adjustment (focus)
7 EASY view+ 3D power switch
Connections
See Fig. 2 (on inside cover)
20 Power supply
21 HDMI output
22 USB port for USB memory stick
23 Foot switch
Accessories
Accessories and their use are described in the instructions for use in the internet.
Commissioning
Setup
⇒ Place the desk pad (12) on the work table.
Mounting the support arm
The support arm should preferably be mounted on the back or side of the table top, at least 400 mm away
from the front edge.
This makes it possible to optimally utilize the entire swiveling range of the support arm.

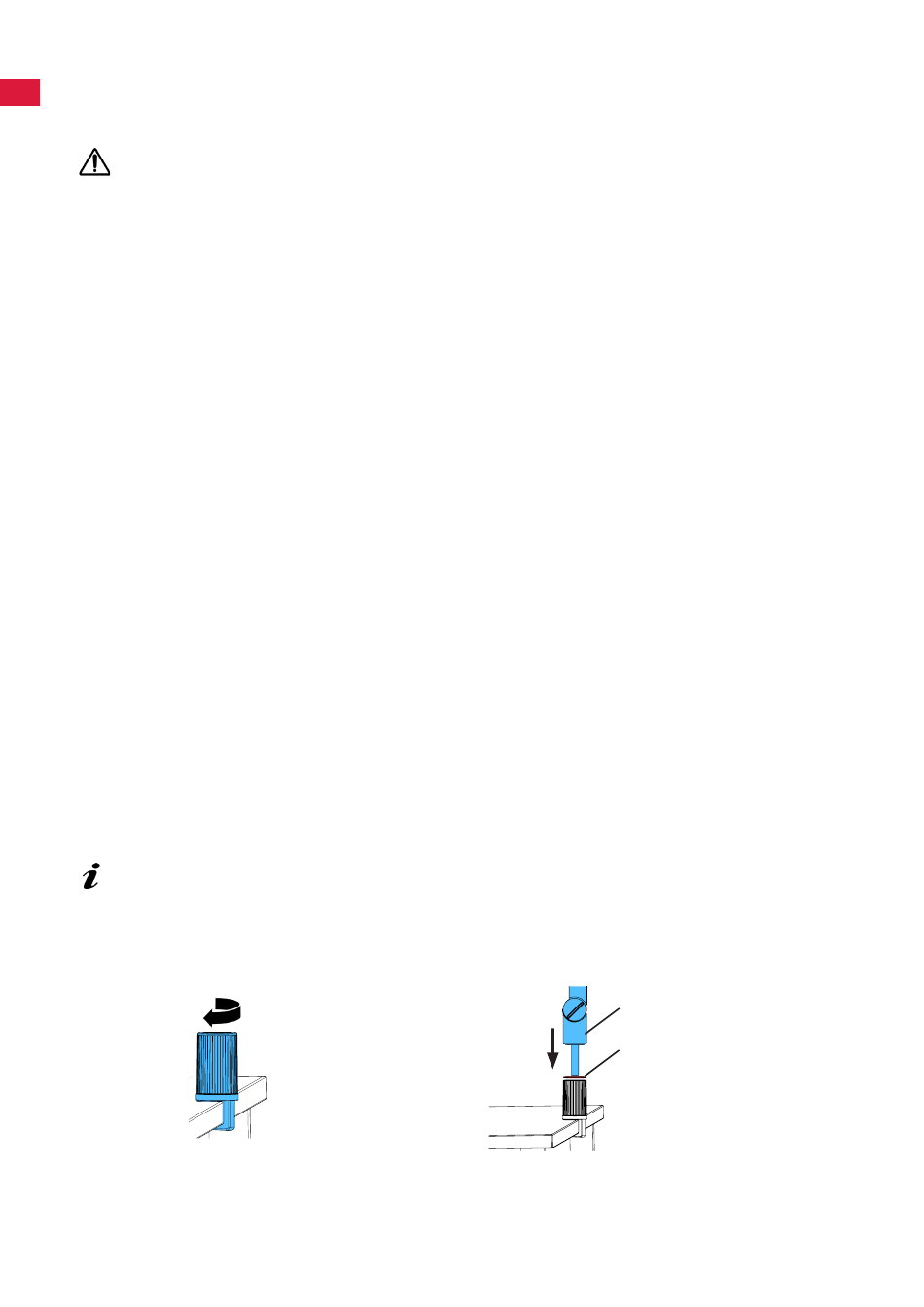

⇒ A: Mount the base with the universal clamp on the back or side of the work table.
⇒ B: Insert the support arm (2) into the base. Make sure that the red plastic disc (30) is placed between the base
and the support arm.
A
⇒ Place the mouse (11) next to the desk pad.
⇒ Place the foot switch (10) under the table and insert the cable for the foot switch into the foot switch.
8 Monitor power switch
9 Tool for clamping force adjustment (Allen key)
10 Foot switch
11 Mouse
12 Desk pad
13 3D goggles
14 USB memory stick
24 USB port for mouse
25 Network
26 Renfert CONNECT interface
B
30
