4 Connecting the Router
4.1.3 Connecting
4.1.4 Disconnecting
4.2 Data Connections
The Regesta Smart v2 Nessum offers the following data connections.
4.2.1 LAN1 and LAN2 Connection
The Regesta Smart v2 Nessum is equipped with two 10/100/1000 Base-T Gigabit Ethernet ports, which support
automatic MDI/MDIX for seamless connection to a local area network (LAN).
Make sure to carefully read the labels on these ports to differentiate them from other types of connections:

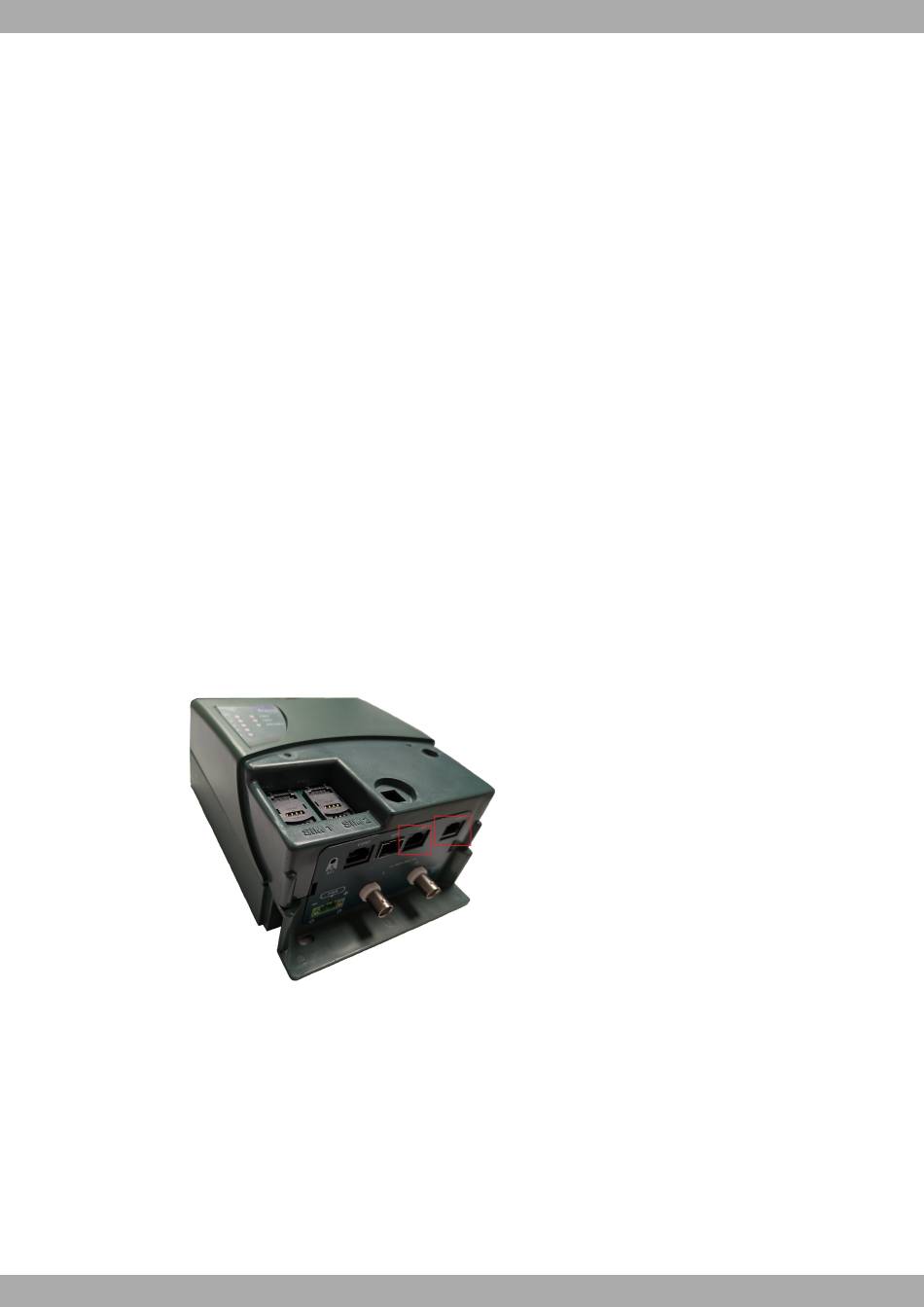

LAN1 and LAN2 Ports
Fig. 16:
4.2.2 SFP/LAN3 Connection
The Regesta Smart v2 Nessum includes a dedicated Gigabit Ethernet interface for LAN connections, featuring an
SFP socket for optical links.
Be mindful of the port labeling to avoid confusion with other interfaces:
20
• Ensure that the power supply is NOT connected to either the electricity outlet
or the router.
• First, connect all data cables.
• Next, connect the power supply cable to the device.
• Install the protective case over the connectors.
• Finally, plug the power supply cable into the electric outlet.
• Disconnect the power supply from the electricity supply.
• Remove the protective case.
• Disconnect the power supply from the router.
• Disconnect the data cables.
