3 Installing the Router

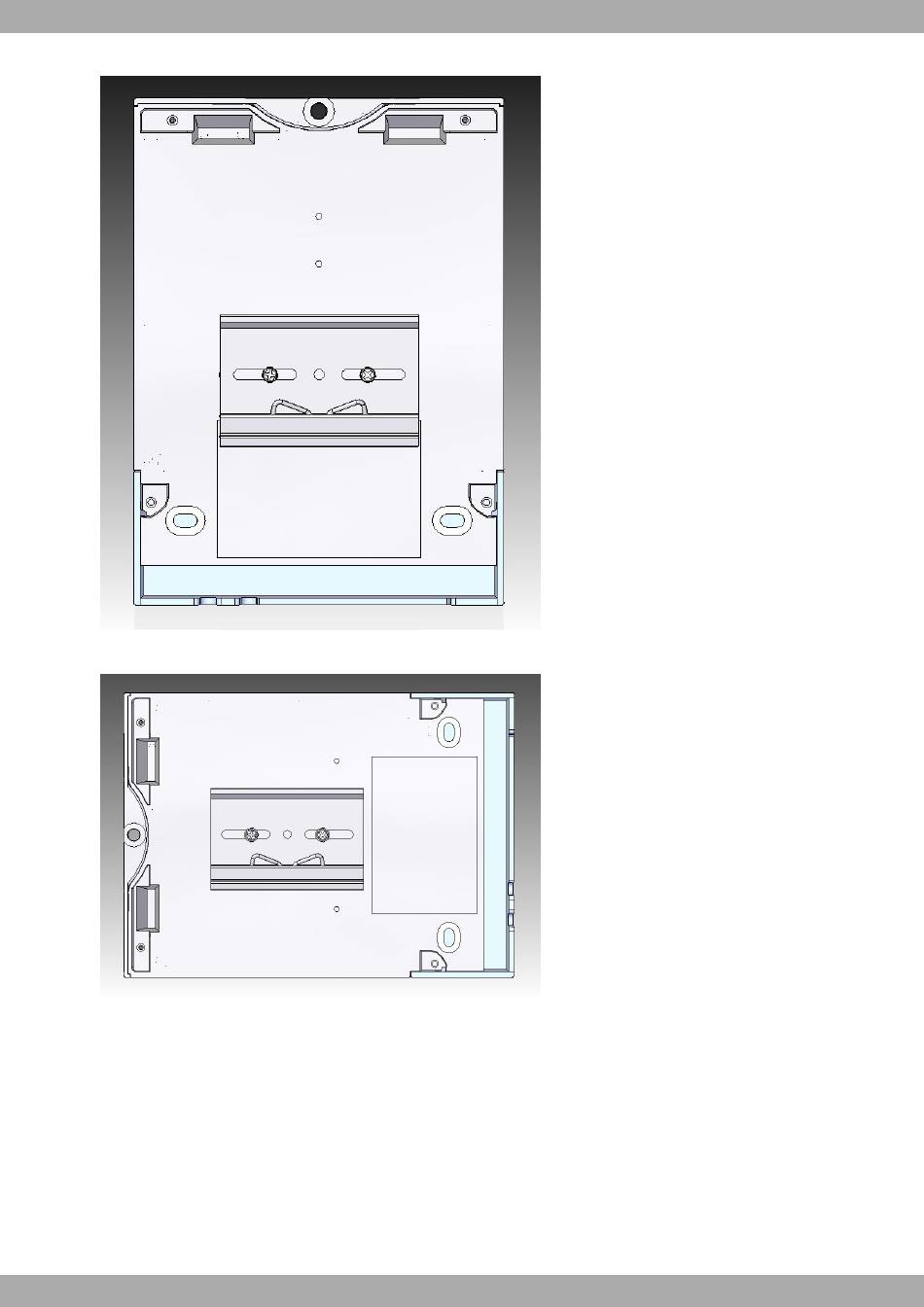

DIN Rail Mount: Position 1
Fig. 11:
DIN Rail Mount: Position 2
Fig. 12:
3.4 Wall Mounting
For wall mounting, the Regesta Smart v2 Nessum comes with three dedicated mounting holes. To ensure a secure
installation, screws should be inserted into these holes. Before attaching the device to the wall, make sure to remove
the protective casing.
For precise details on the placement of the fastening holes, please refer to the image below:
16
