2 Product Overview
Front Panel

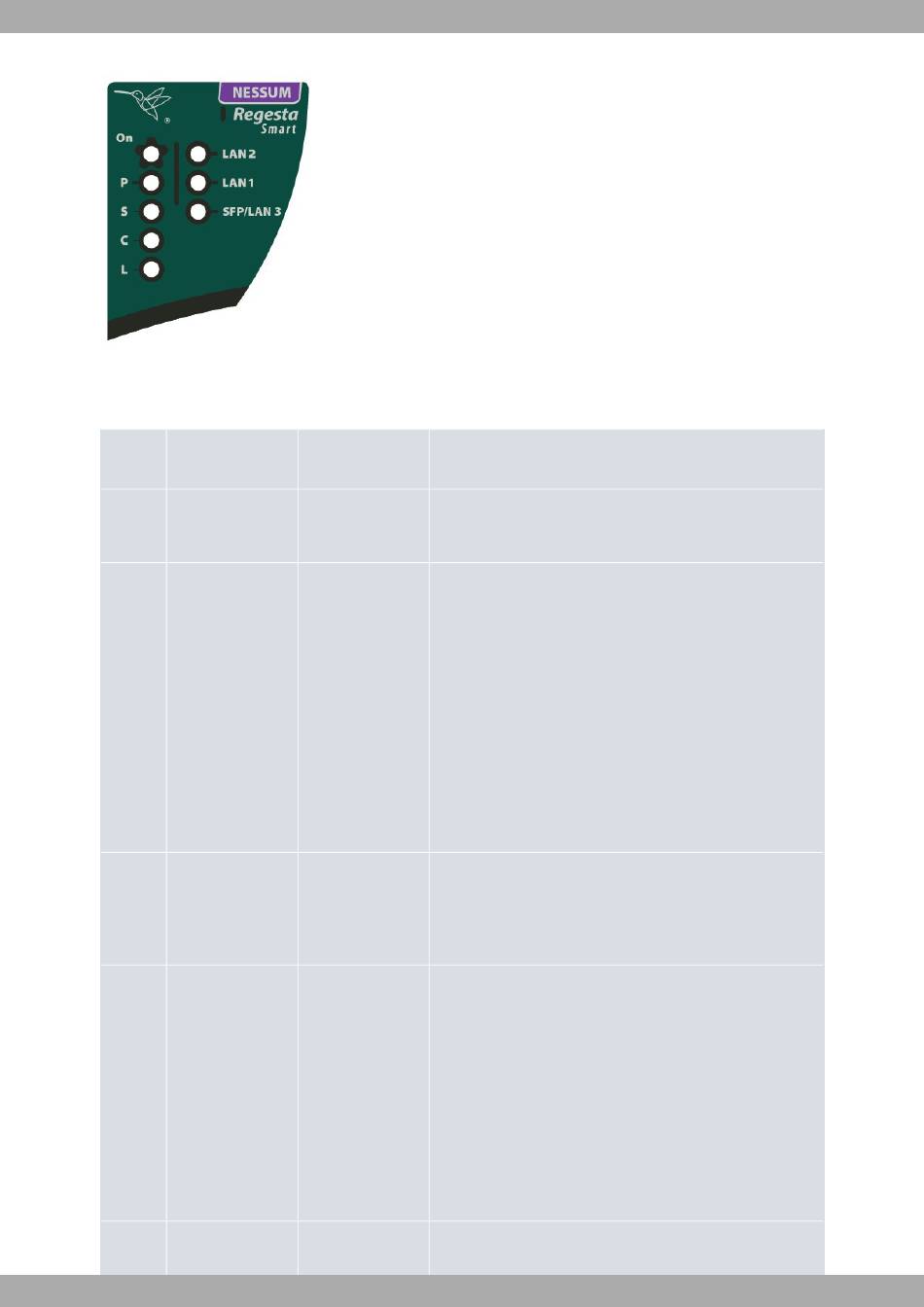

Fig. 4:
During startup, LED L will light up in green. Once the device has booted, the LEDs will indicate the following:
LEDs
LED Associated Inter-
face
Power
ON
Nessum interface
P
Cellular interface
S
Cellular interface
C
Cellular interface
L
corresponding to
8
Status Description
Off Device is not powered on.
Green Device is powered on.
Off Nessum interface is disabled, unavailable, or not installed.
Nessum is operating in TERMINAL mode but is notconnected
Red
or registered to any Master device.
Nessum is operating in MASTER mode with no registered ter-
Amber
minals.
Nessum is operating in MASTER or TERMINAL mode with an
Green
establishedconnection. Data traffic can be transmitted
throughthe Nessum interface.
• Steady: No data transfer is occurring.
• Flashing: Data is being transferred.
Green SIM1 operating SIM. This indicates that traffic is being pro-
cessed through the carrier for the SIM installed in this slot.
Amber
SIM2 operating SIM. This indicates that traffic is being pro-
cessed through the carrier for the SIM installed in this slot.
Red Cellular interface status: Unavailable, not installed, or not re-
gistered.
Amber
The device is registered in the network and is establishing the
PDP connection.
Green
The device is registered, the PDP connection is established,
and IP traffic can be transmitted through the CELLULAR inter-
face.
• Steady: No data transfer is occurring.
• Flashing: Data is being transferred.
Off Cellular interface is not active.
