Innova IGZDUP35V2NI-1 Owner's Manual page 14

Dimensions
Model
IGZDUP85V2NI-1
IGZDUP100V2NI-1
IGZDUP125V2NI-1
IGZDUP140V2NI-1
IGZDUP160V2NI-1
Drilling of ceiling opening and installation of air conditioner must be performed by
professionals!

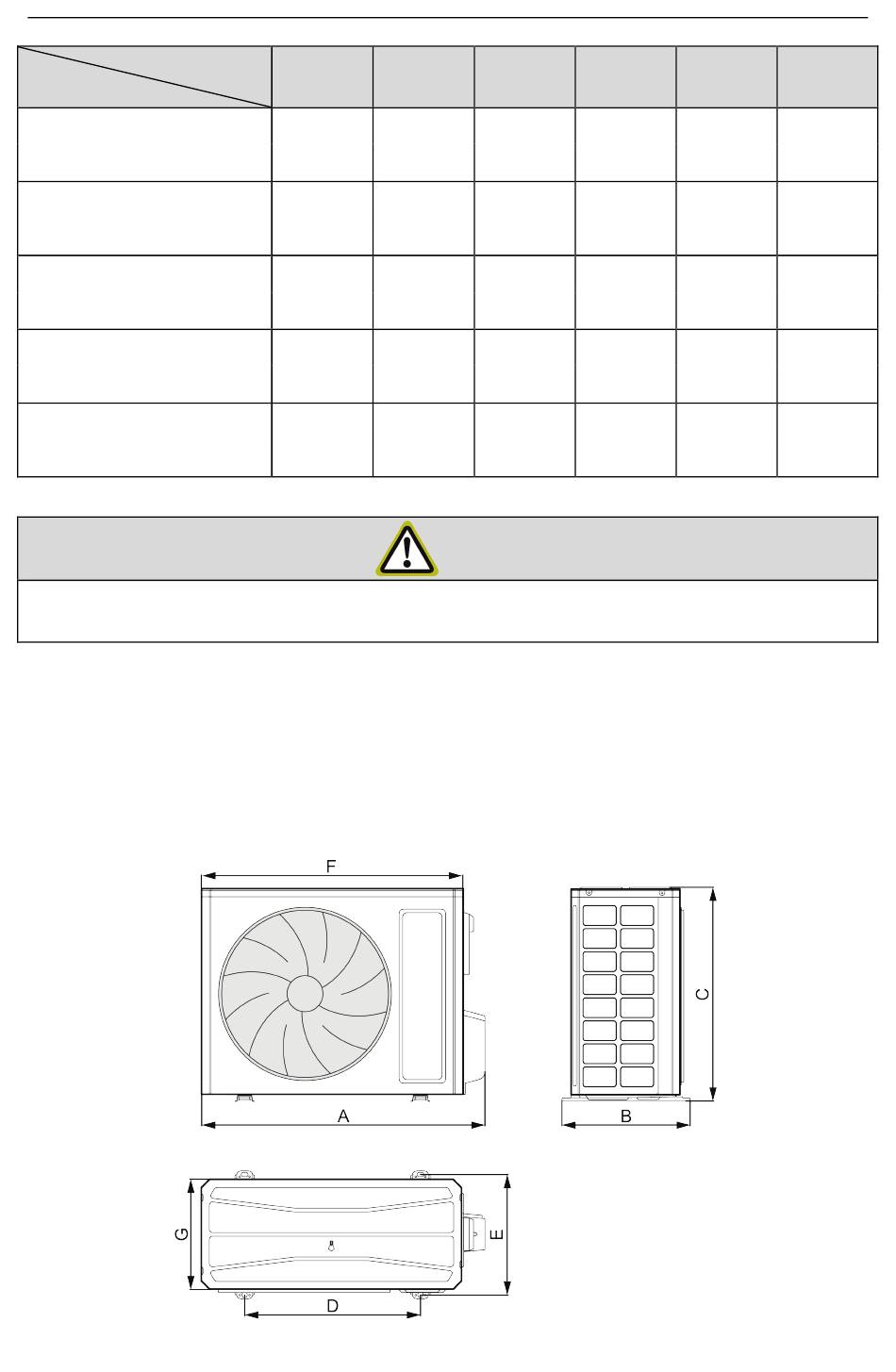

(2) Outdoor Unit
IGZPAC35V2NO-1,IGZPAC50V2NO-1,IGZPAC71V2NO-1, IGZPAC85V2NO-1,
IGZPAC100V2NO3-1,IGZPAC125V2NO3-1, IGZPAC140V2NO3-1,
IGZPAC160V2NO3-1
A B
942 590
1381 585
1381 585
1440 500
1440 500
NOTE!
10
C D
900 260
1340 260
1340 260
1400 300
1400 300
E F
655 692
655 697
655 697
700 754
700 754
