(1) Before working, please check whether the indoor and outdoor units are
powered on.
(2) Match the terminal numbers and wire colors with the colors indicated in the
indoor unit.
(3) Wrong wire connection may burn the electrical components.
(4) Connect the wires firmly to the wiring box. Incomplete installation may lead to
fire hazard.
(5) Please use wire clamps to secure the external covers of connecting wires.
(Insulators must be clamped securely; otherwise, electric leakage may occur.)
(6) Ground wire should be connected.

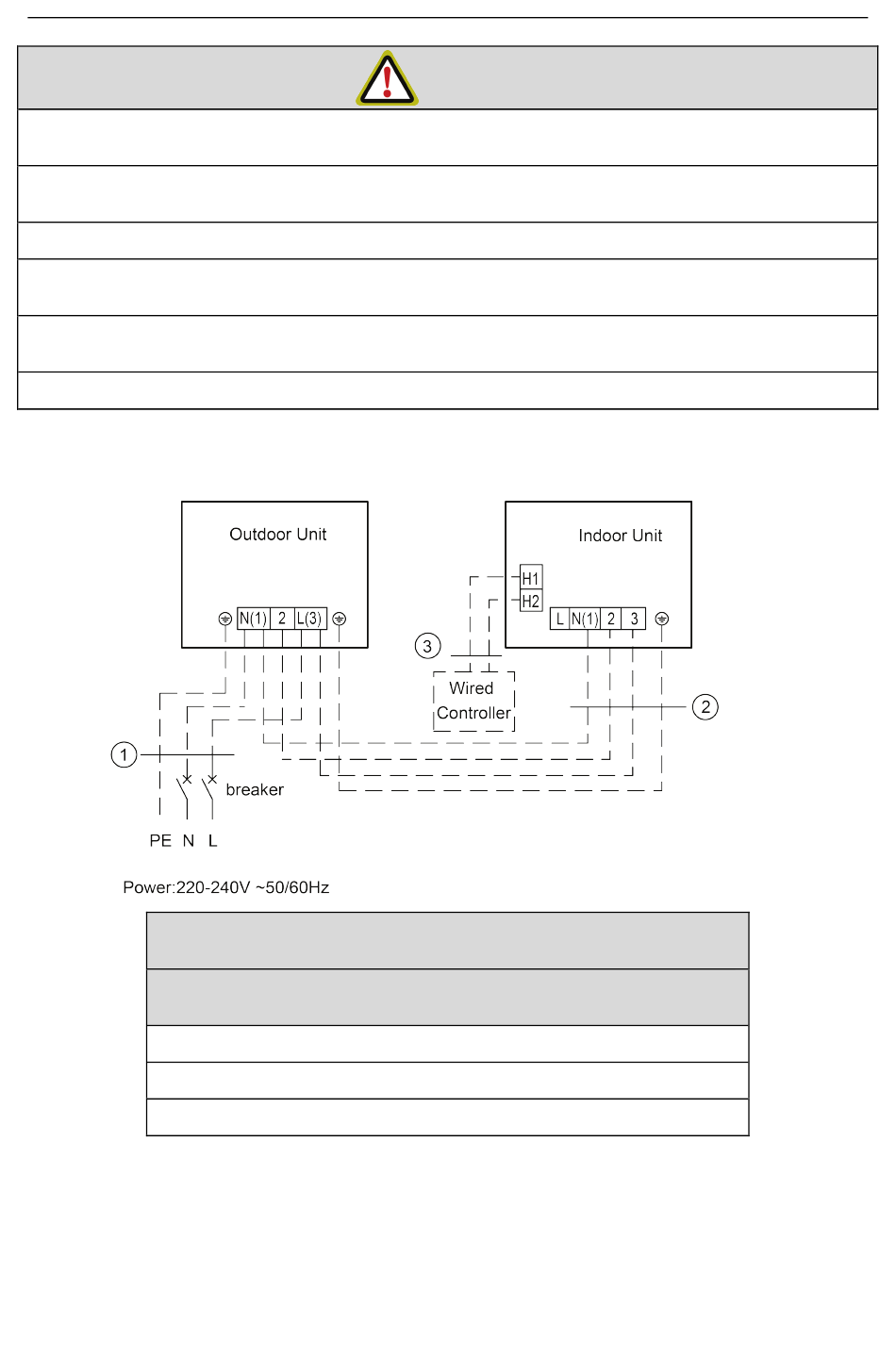

(4) Wire between indoor and outdoor units.
Single-phase unit: IGZPAC35V2NO-1, IGZPAC50V2NO-1
IGZDUP35V2NI-1+IGZPAC35V2NO-1
IGZDUP50V2NI-1+IGZPAC50V2NO-1
①.
②.
③.
Power cords 3×1.5mm
Power cords 4×1.0mm
Communication cords 2×0.75mm
WARNING!
2
2
2
