Three-phase unit: IGZPAC100V2NO3-1, IGZPAC125V2NO3-1,
IGZPAC140V2NO3-1, IGZPAC160V2NO3-1
IGZDUP100V2NI-1+IGZPAC100V2NO3-1
IGZDUP125V2NI-1+IGZPAC125V2NO3-1
IGZDUP140V2NI-1+IGZPAC140V2NO3-1
IGZDUP160V2NI-1+IGZPAC160V2NO3-1
①.
②.
③.

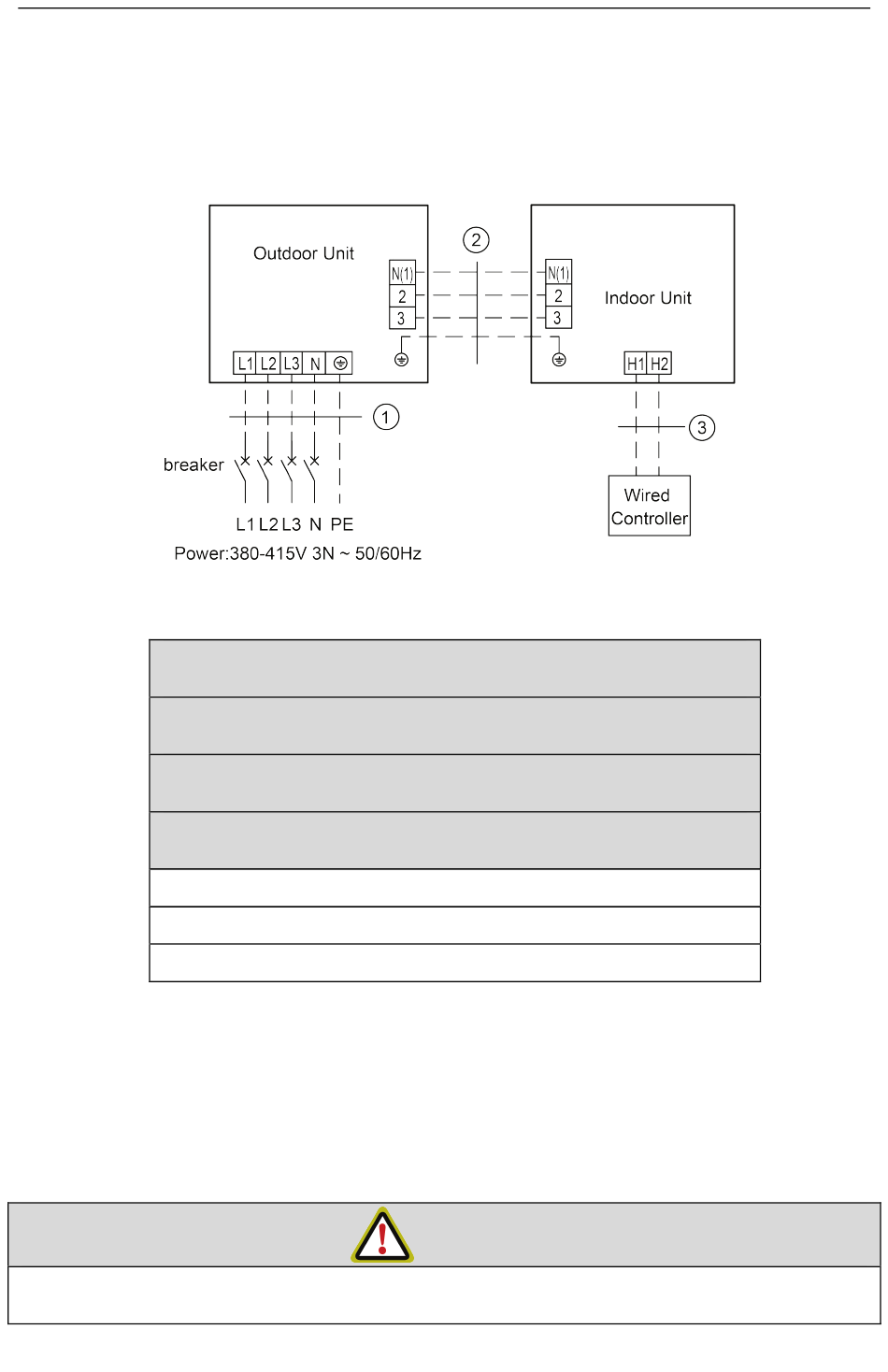

(5) Electrical wiring of indoor unit and outdoor unit.
(1) High and low voltage wires should be led through different rubber rings of the
electric box cover.
Power cords 5×1.5mm
Power cords 4×1.0mm
Communication cords 2×0.75mm
2
2
2
WARNING!
42
