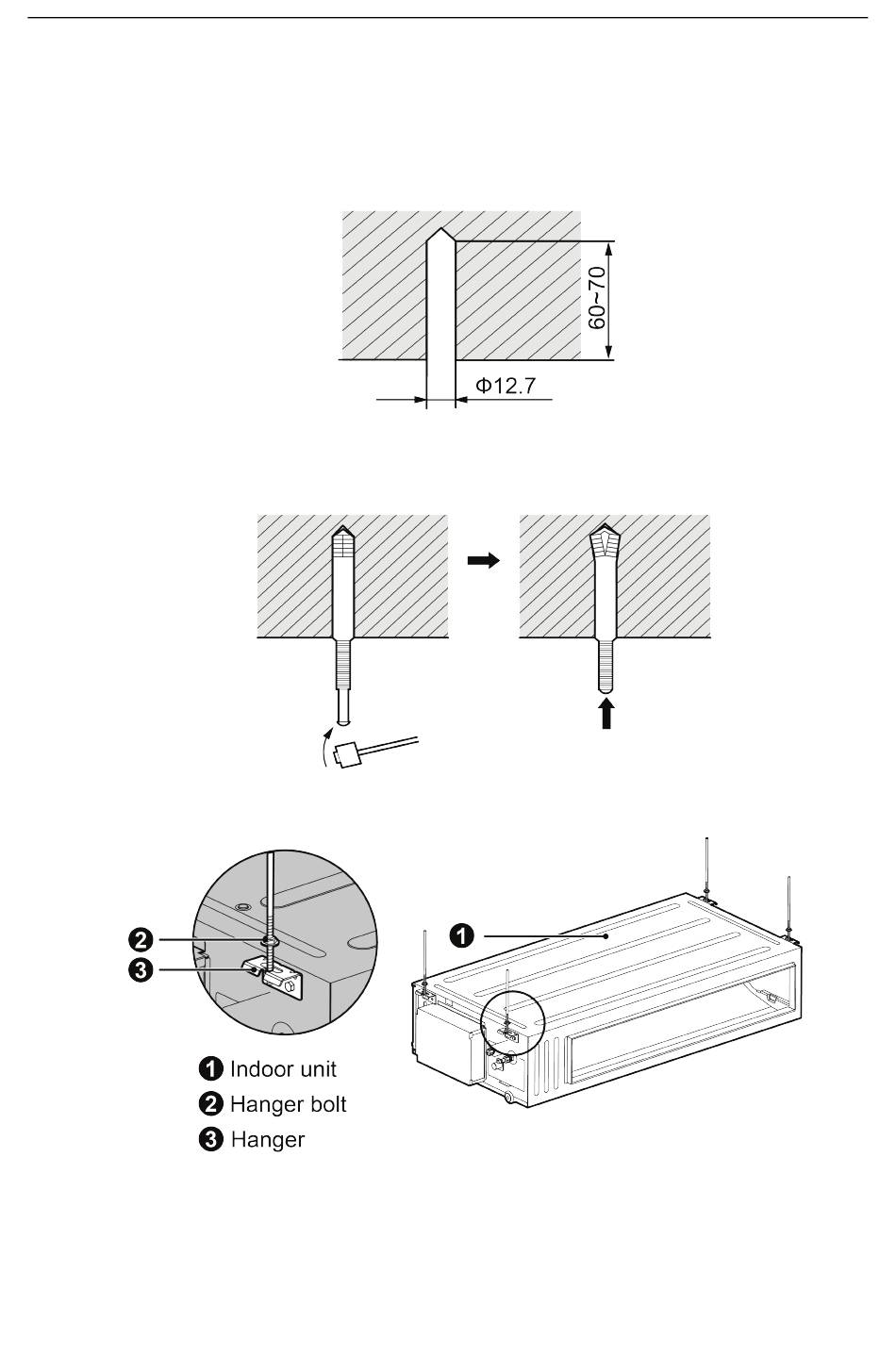

(1) Install the bolts to the ceiling at a place strong enough to hang the unit.
Mark the bolt positions from the installation template. With a concrete drill
for 12.7mm diameter holes. See the following figure.
(2) Insert the anchor bolts into the drilled holes, and drive the pins completely
into the anchor bolts with a hammer. See the following figure.
(3) Install the hanger to the unit. See the following figure.
15
