2)
Outdoor side
Remove the big handle/front panel of the outdoor unit and insert one
end of the communication cord and the power cord to the terminal
board.

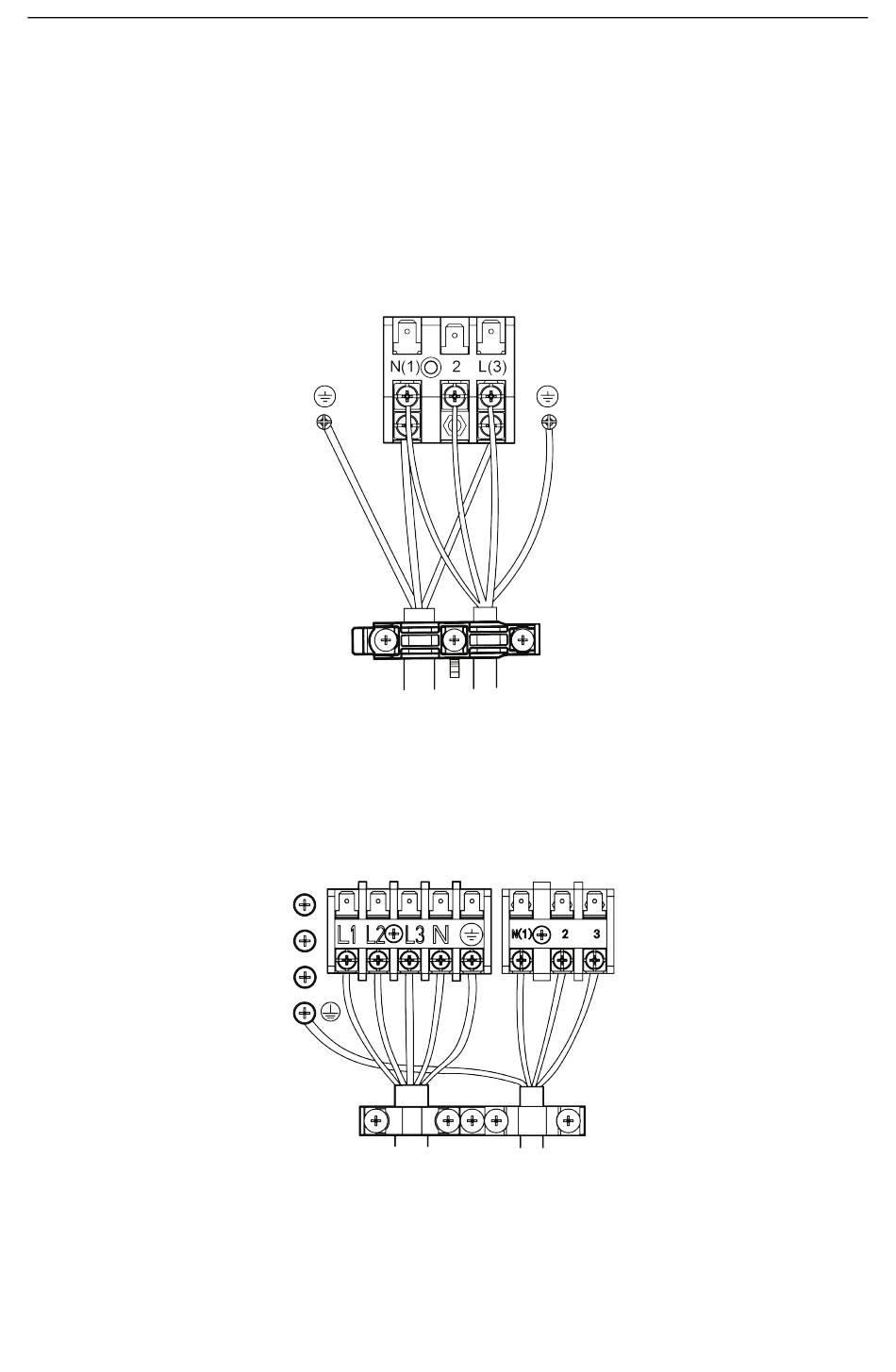

Wire routing of outdoor unit:
IGZPAC35V2NO-1,IGZPAC50V2NO-1,IGZPAC71V2NO-1,
IGZPAC85V2NO-1
Three-phase unit: IGZPAC100V2NO3-1,IGZPAC125V2NO3-1,
IGZPAC140V2NO3-1,IGZPAC160V2NO3-1.
