Innova IGZDUP35V2NI-1 Owner's Manual page 33

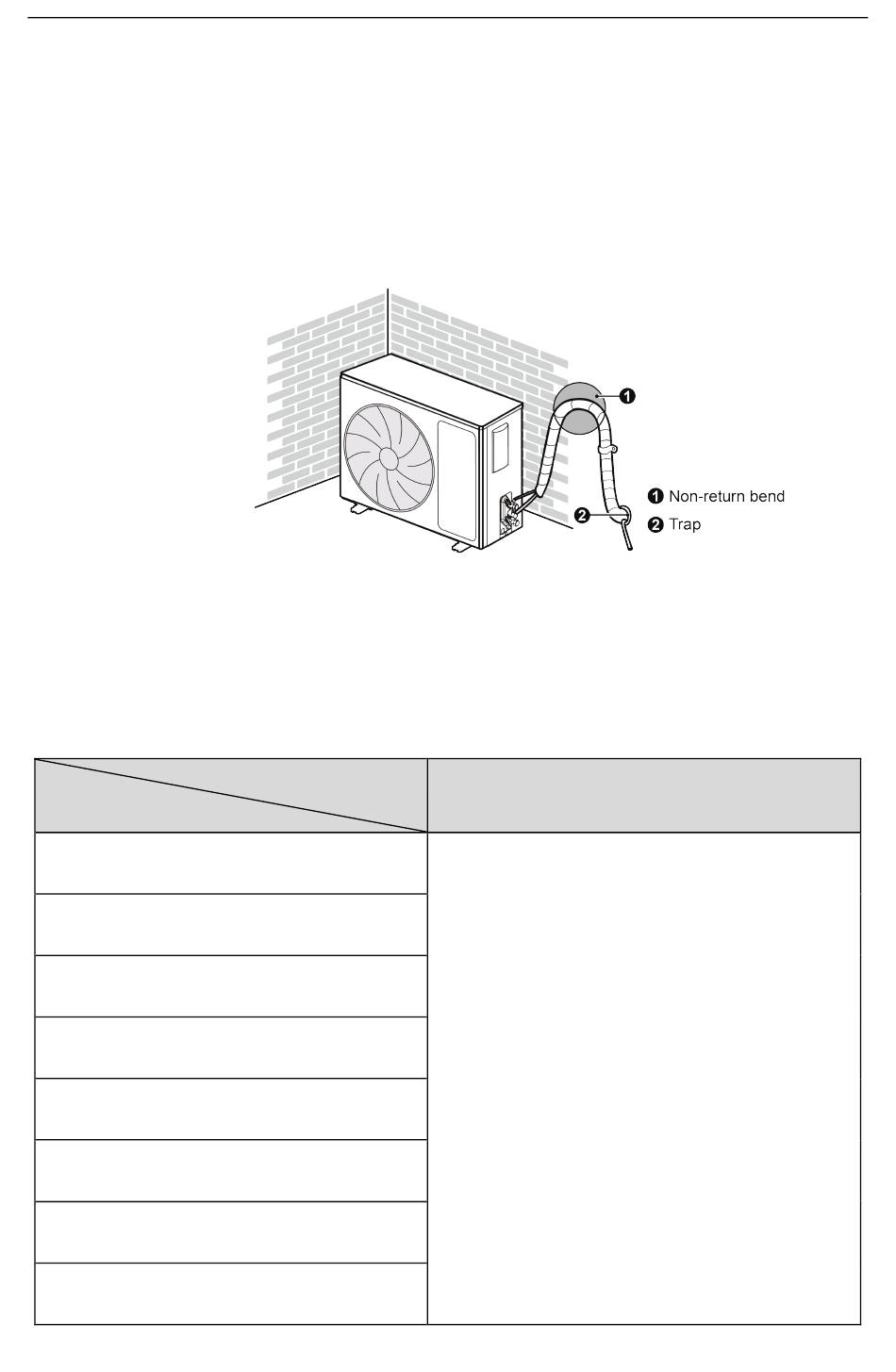

(2) If the outdoor unit is above the indoor unit, arrange the pipeline according
to the following diagram.
1) Wind the insulating tape from bottom to top.
2) The whole pipeline should be wound together to avoid water returning
to the room.
3) Use saddles to fix the whole pipeline onto the wall.
2.2.6.3 Drain Riser with Pump Unit Considerations
(1) For the unit with the condensate pump, only one drain port at the side
close to the electric box is prepared and only through it the drain hose can
be connected.
Model
IGZDUP35V2NI-1
IGZDUP50V2NI-1
IGZDUP71V2NI-1
IGZDUP85V2NI-1
IGZDUP100V2NI-1
IGZDUP125V2NI-1
IGZDUP140V2NI-1
IGZDUP160V2NI-1
Item
(inside dimension)(mm)
29
Drain pipe
Ф26
