System Fan - HP 510B - Minitower PC Maintenance And Service Manual

System Fan

1. Prepare the computer for disassembly
2. Remove the access panel
3. Lay the computer on its side with the rear facing toward you.
4. Disconnect the cable that connects the system fan to the system board.
5. Remove the four Phillips screws that secure the fan to the chassis, rotate the top of the fan
forward, and then remove the fan from the chassis.

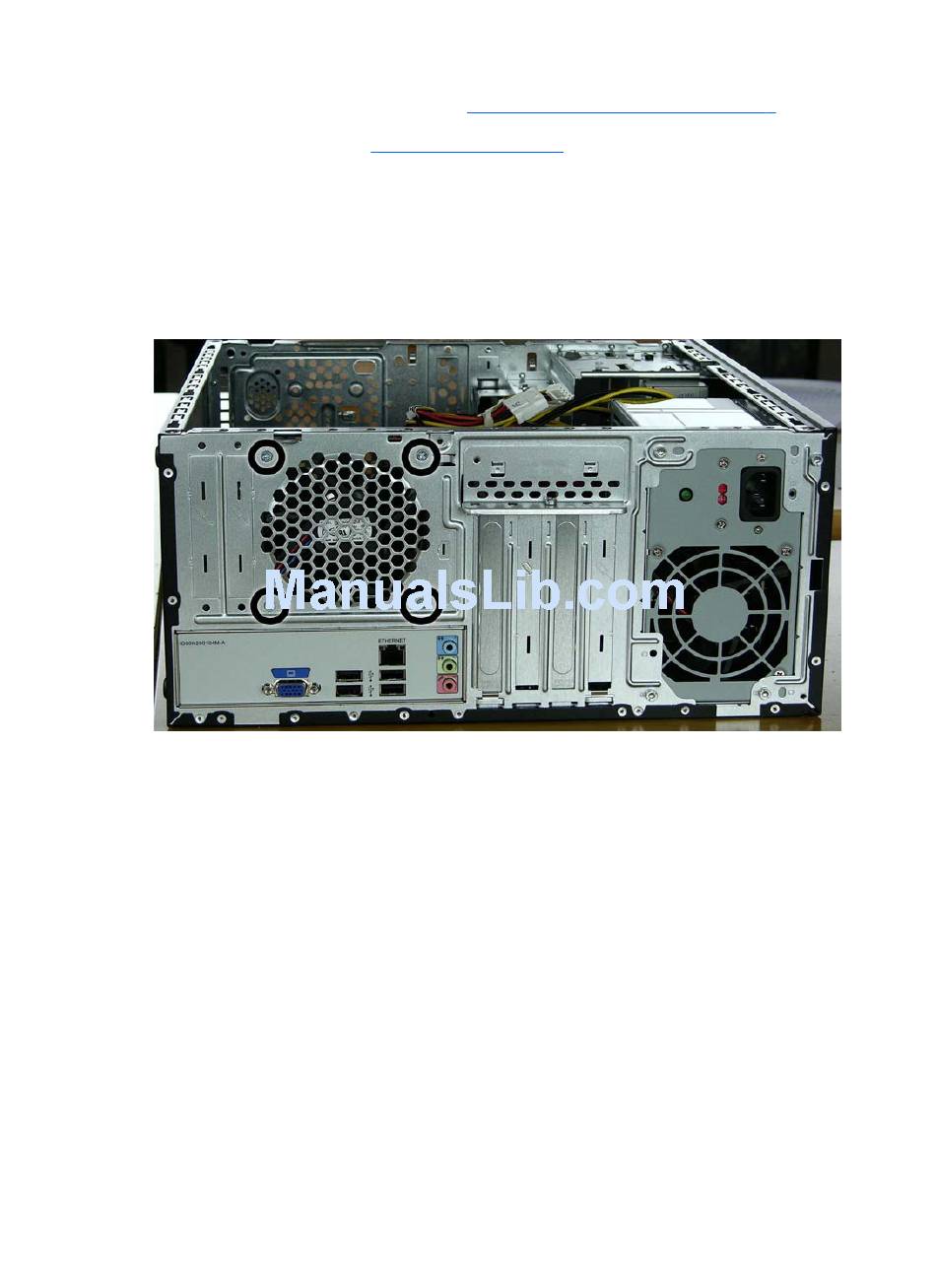

Figure 2-45
To install the fan, reverse the removal procedures.
(Access Panel on page
Removing the system fan
(Preparation for Disassembly on page
5).
4).
System Fan
35
