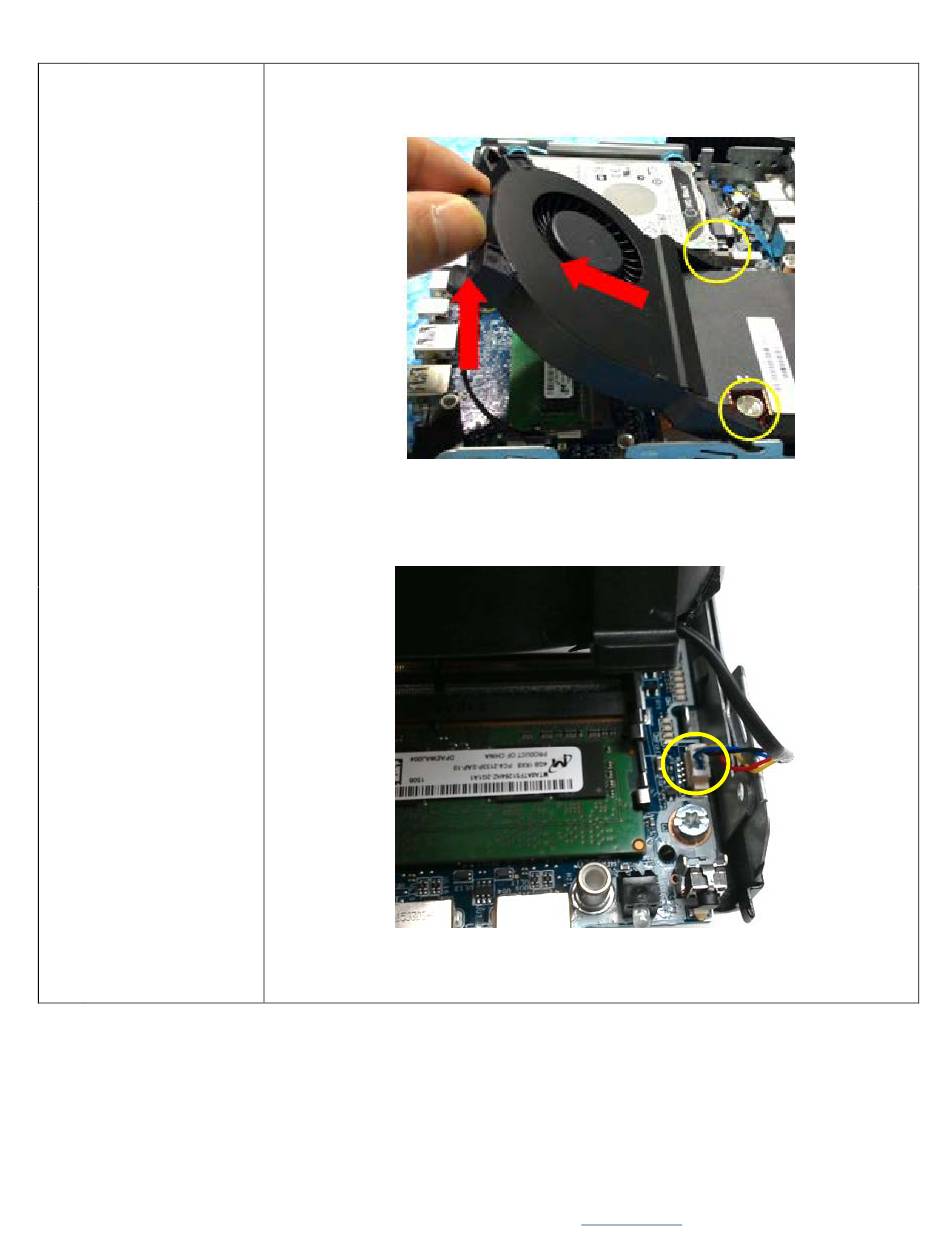

3. Remove system fan

1
Lift system fan up
then remove it as
photo1 shown
2.
Remove system fan
cable from M/B as
photo2 shown
EL-MF877-00
Template Revision B
PSG instructions for this template are available at
EL-MF877-01
Page 6
