Front I/O and USB Panel Housing Assembly

1. Prepare the computer for disassembly
2. Remove the access panel
3. Lay the computer on its side with the front facing toward you.
4. Remove the front bezel
5. Unplug the four cables that connect the assembly to the system board.
6. Remove the screw (1) that secures the housing to the chassis, slide the housing up (2), and then
pull the assembly away from the chassis while guiding the cables through the hole in the
chassis.

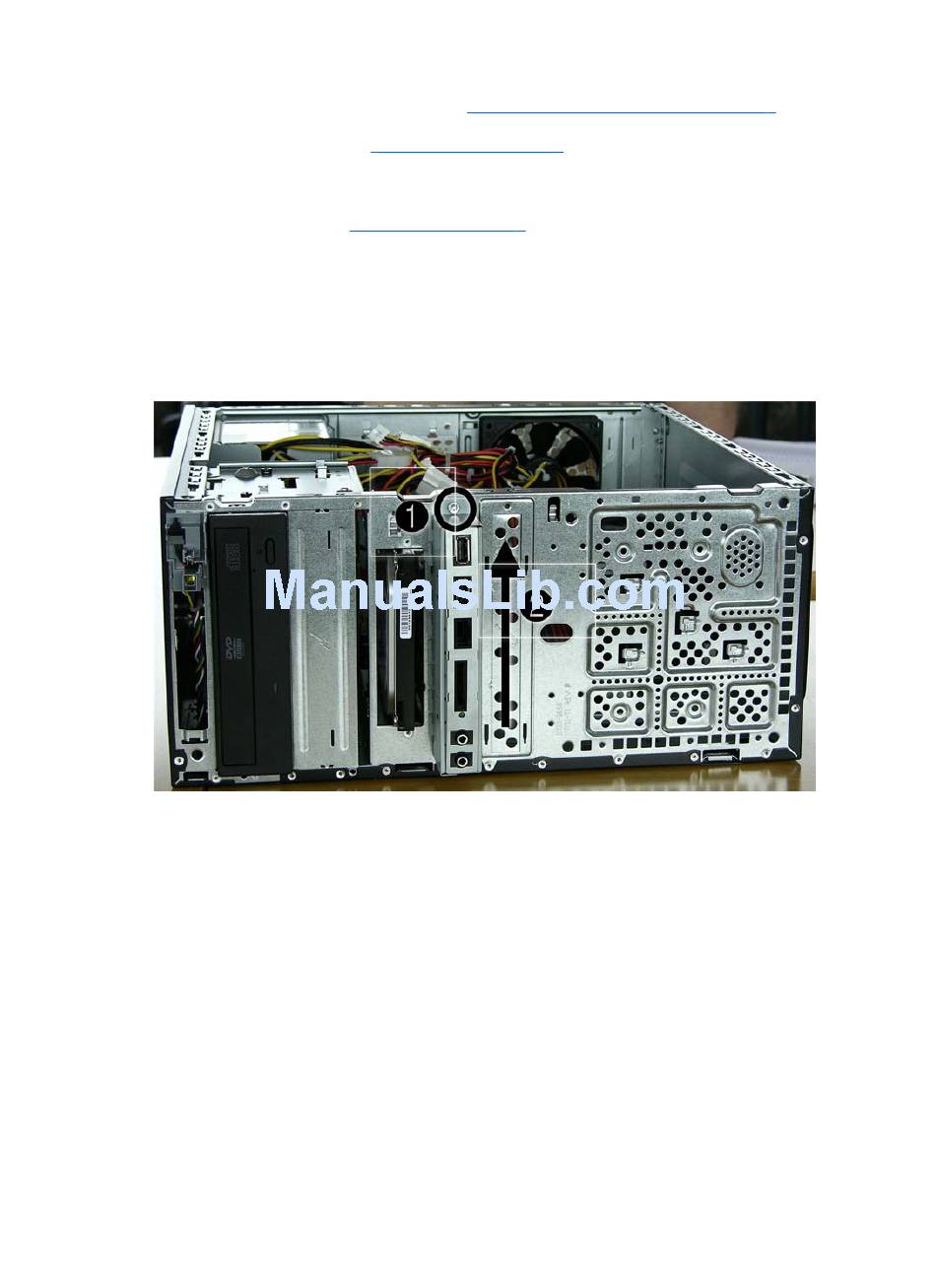

Figure 2-43
To install the housing assembly, reverse the removal procedures.
