Section 6 - Controls & Components; Component Locations - Mec Micro26-XD Operator's Manual

Section 6 - Controls & Components
12
13
14
15
14
16
10
9
2
4
6
5
ILLUSTRATION No.
ART_5008
Page 15

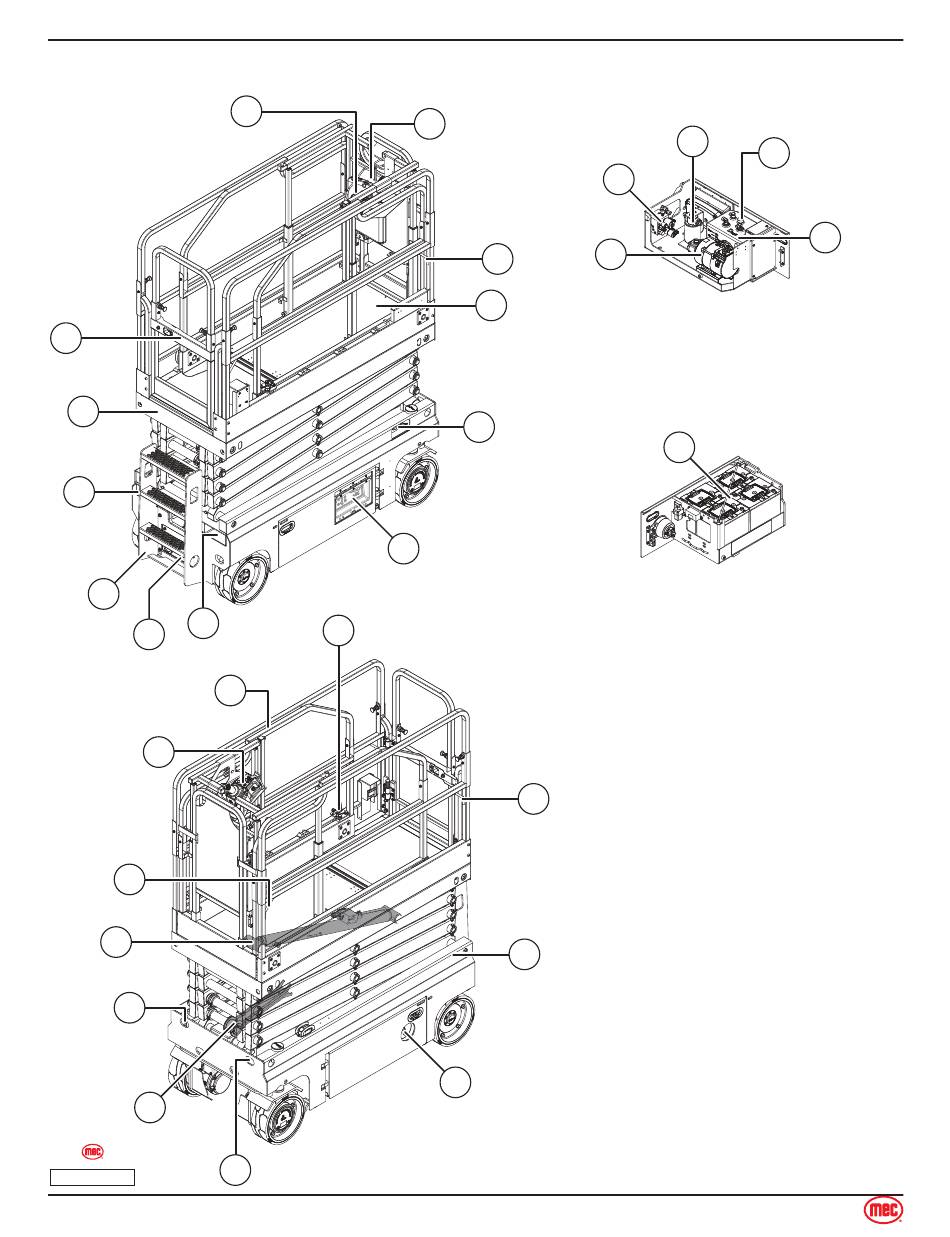

Component Locations

Component Locations
1
19
11
6
Micro26 - XD - Operator's Manual - 96493
17
2
3
20
2
7
8
23
22
21
25
CONTROL MODULE
BATTERY MODULE
18
1) Manuals Case
2) Lanyard Anchorage
3) Deck Extension
4) Lift Cylinders
5) Maintenance Lock
6) Tie-Down/Lift Points
7) Chassis
8) Main Power Switch
9) Platform Controls
10) Guard Rails
11) Deck Extension Release
12) Entry Gate
13) Main Platform
14) Forklift Pockets
15) Entry Ladder
16) Battery Charger
17) Xtra Step
18) Batteries
19) Lower Controls
20) Emergency Lowering Handle
21) Hydraulic Manifold
22) Breather Cap
23) Hydraulic Filter
24) Hydraulic Reservoir
25) Hydraulic Pump & Motor
October 2024
24
