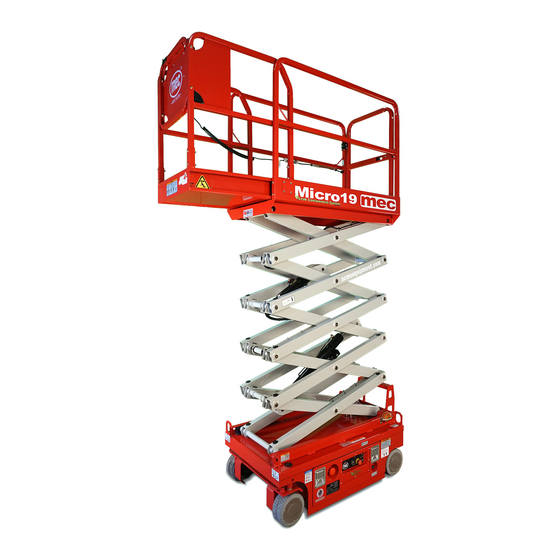

Mec Micro 19 Service & Parts Manual
  1. Manuals
  2. Brands
  3. Mec Manuals
  4. Scissor Lifts
  5. Micro 19
  6. Service & parts manual

Mec Micro 19 Service & Parts Manual

Serial number range 16900000 - up
Hide thumbs Also See for Micro 19:
Table of Contents

Advertisement

Quick Links

Service & Parts Manual
Micro 19
Art 5525
Serial Number Range
Part # 94554 R3
16900000 - Up
November 2019

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Micro 19 and is the answer not in the manual?

Questions and answers

Related Manuals for Mec Micro 19

Summary of Contents for Mec Micro 19

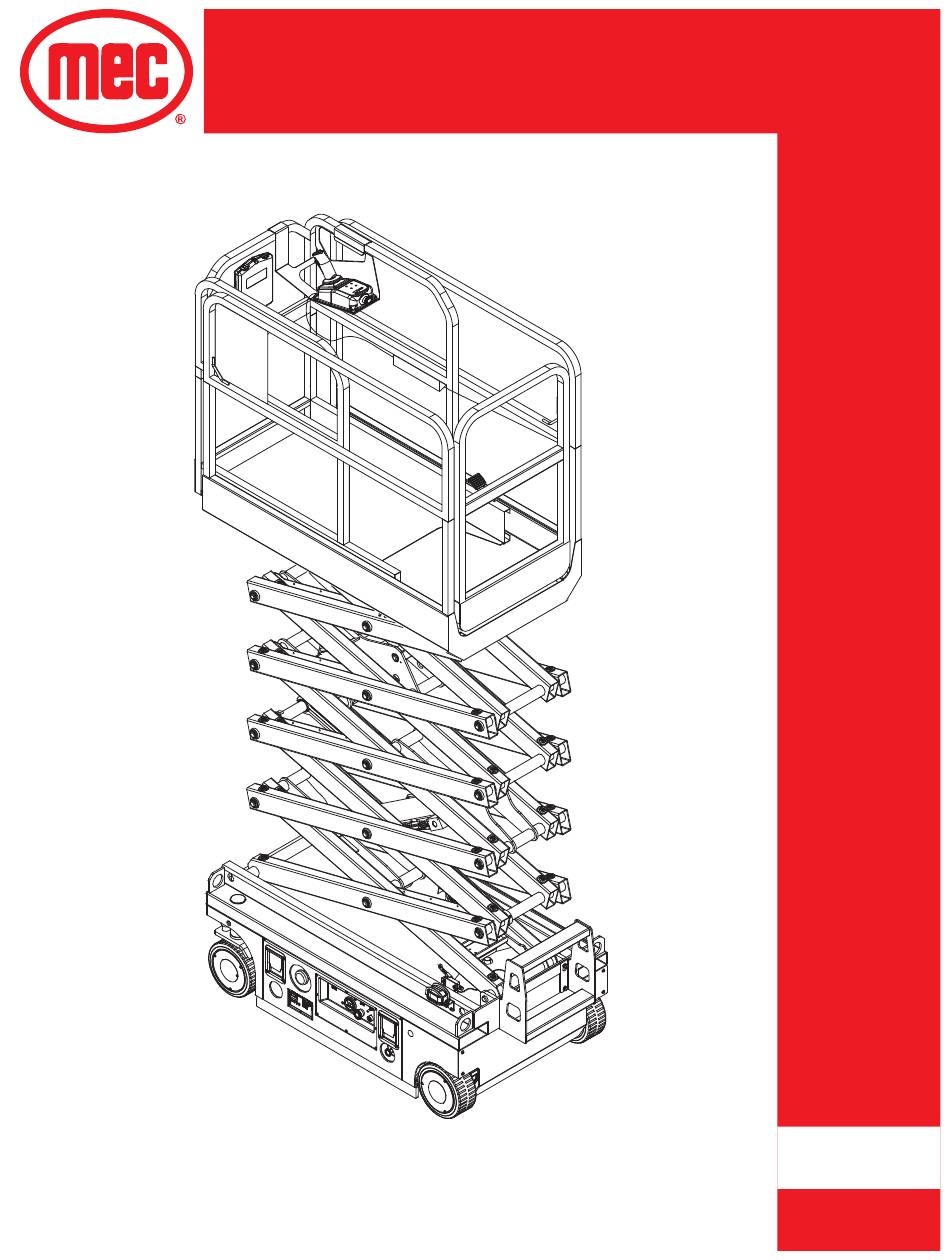

  • Page 1 Service & Parts Manual Micro 19 Art 5525 Serial Number Range Part # 94554 R3 16900000 - Up November 2019...
