Mec Micro26-XD Operator's Manual

Hide thumbs

Advertisement

Quick Links

Download this manual

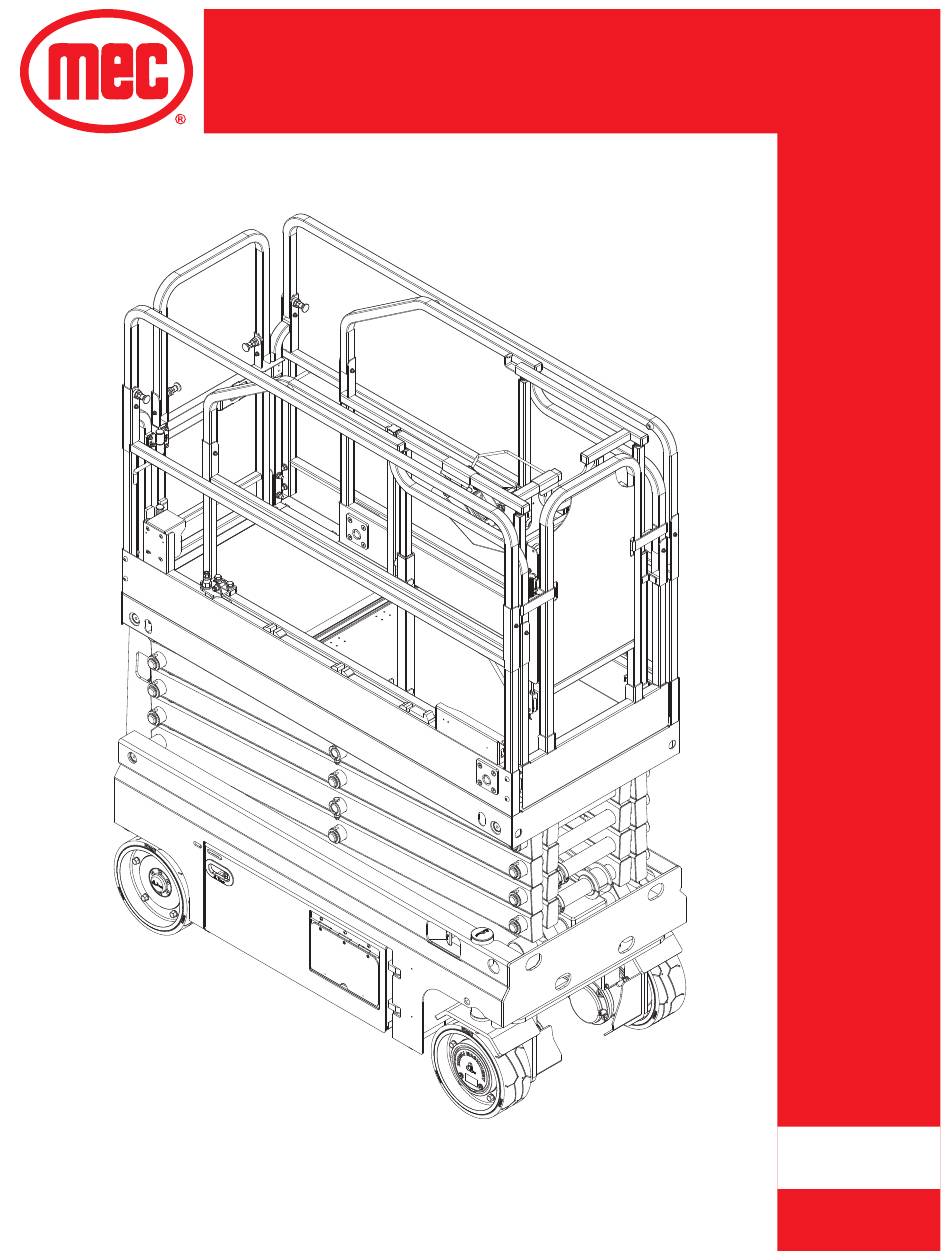

Operator's Manual
Micro26 - XD
ART_5484
Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019.
Part # 96493
October 2024
Serial Number Range 19900025 - Up

Advertisement

loading
Need help?

Need help?

Do you have a question about the Micro26-XD and is the answer not in the manual?

Questions and answers

Related Manuals for Mec Micro26-XD

Summary of Contents for Mec Micro26-XD

  • Page 1 Operator’s Manual Micro26 - XD ART_5484 Meets requirements of ANSI A92.20-2020 and CSA B354.6-2019. Part # 96493 October 2024 Serial Number Range 19900025 - Up...
  • Page 2 October 2024 Revision History Date Reason for Update April 2024 New Release MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com Page i Micro26 - XD - Operator’s Manual - 96493...
  • Page 3 October 2024 Table of Contents Section 1 - Introduction . Introduction � � � � � � � � � � � � � � � � � � � � � Section 2 - Safety Safety � � � �...
  • Page 4 October 2024 Section 13 - Transport and Lifting Instructions . 41 Transport and Lifting Instructions � � � � � � � � � � � � � � � � 41 Page iii Micro26 - XD - Operator’s Manual - 96493...
  • Page 5 Your MEC Aerial Work Platform has been designed, built, and tested to provide safe, dependable service. Only authorized, trained and qualified personnel shall be allowed to operate or service the machine.
  • Page 6 For your safety and the safety of those around you, you must operate your machine as instructed in this manual. MEC designs aerial work platforms to safely and reliably position personnel, along with their necessary tools and materials, at overhead work locations. The owner/user/operator of the machine should not accept responsibility for the operation of the machine unless properly trained.
  • Page 7 Section 2 - Safety October 2024 Safety Alert Symbols & Fall Protection MEC manuals and decals use symbols, colors and signal words to help you recognize important safety, operation and maintenance information. ART_6091 RED and the word DANGER – Indicates an imminently hazardous DANGER situation which, if not avoided, will result in death or serious injury.
  • Page 8 Section 3 - Specifications October 2024 Specifications Specifications Indoor 31.5ft 9.6m Height, Working Maximum* Outdoor 23ft 7.0m Indoor 24.9ft 7.6m Height, Platform Maximum Outdoor 16.4ft 5.0m Rails Up 91.3in 2.32m Height, Stowed Maximum Rails Folded 78.3in 1.99m Width 31.9in 0.81m Retracted 74in 1.88m...
  • Page 9 Section 4 - Hazards October 2024 Electrocution Hazard Electrocution Hazard ELECTROCUTION HAZARD! THIS MACHINE IS NOT INSULATED! DEATH OR SERIOUS INJURY will result from contact with or inadequate clearance from any electrically charged conductor. ART_6091 DANGER You must maintain a CLEARANCE OF AT LEAST 10 FEET (3.05 m) between any part of the machine, or its load, and any electrical line or apparatus carrying over 300 Volts up to 50,000 Volts.
  • Page 10 Section 4 - Hazards October 2024 5000 V Max. volts Higher voltage 20000 V Min. volts 15000 V 10000 V 5000 V Lower voltage Min. volts (b) Avoid simultaneous contact across (a) Affected area areas of high potential difference CLEARANCES FROM LIVE AERIAL CONDUCTORS Spotter required No go zone...
  • Page 11 Section 4 - Hazards October 2024 When working in the area of energized conductors the user shall direct and the operator shall comply with the requirements to: 1) Stay at least 10 feet (3.05 meters) away from power lines with any part of their body, conductive object or any part of the MEWP (Mobile Elevating Work Platform).
  • Page 12 Section 4 - Hazards October 2024 Tip-over Hazards DO NOT exceed the maximum platform capacity. The weight of options and accessories will reduce the rated platform capacity and must be factored into the total platform load. Refer to the decals on the options. DO NOT elevate the platform when the machine is on a surface that is soft and/or on a slope.
  • Page 13 NEVER replace any part of the machine with items of different weight or specification. NEVER modify or alter the work platform without written permission from MEC. NEVER place ladders or scaffolds in the platform or against any part of the machine.
  • Page 14 Section 4 - Hazards October 2024 Fall & Collision Hazards Fall Hazards DO NOT sit, stand or climb on the platform guard rails. Maintain a firm footing on the platform floor at all times. DO NOT exit the platform when elevated. DO NOT climb down from the platform when elevated.
  • Page 15 Section 4 - Hazards October 2024 Keep hands and limbs out of scissors. Use common sense and planning when operating the machine with the controller from the ground. Maintain safe distances between the operator, the machine and fixed objects. Micro26 - XD - Operator’s Manual - 96493 Page 11...
  • Page 16 Section 4 - Hazards October 2024 Additional Safety Hazards Explosion and Fire Hazards DO NOT operate the machine in hazardous locations or locations where potentially flammable or • explosive gases or particles may be present. Damaged Machine Hazards • Conduct a thorough pre-start inspection of the machine and test all functions before each work shift to check for damage, malfunction and unauthorized modification.
  • Page 17 Section 5 - Xtra Deck Instructions October 2024 Xtra Deck Guardrail Instructions Xtra Deck Guardrail Instructions ART_6091 WARNING Only 1 person is allowed on the machine when the Xtra Deck is deployed. IMPORTANT: Maximum capacity - 1 person - 250lbs (113kg) The control box may be placed on the upper telescopic guardrail and the machine controlled as instructed in this manual.
  • Page 18 Section 5 - Xtra Deck Instructions October 2024 2. Lift the LH (Left Hand) inner rail followed by lifting the RH (Right Hand) inner rail. 3. While still on the ground, lift the Yellow Telescopic Rails and insert the front 2 Platform Floor Pins (see image for location) near the floor.
  • Page 19 Section 6 - Controls & Components October 2024 Component Locations Component Locations CONTROL MODULE BATTERY MODULE 1) Manuals Case 2) Lanyard Anchorage 3) Deck Extension 4) Lift Cylinders 5) Maintenance Lock 6) Tie-Down/Lift Points 7) Chassis 8) Main Power Switch 9) Platform Controls 10) Guard Rails 11) Deck Extension Release...
  • Page 20 Section 6 - Controls & Components October 2024 Platform Controls ILLUSTRATION No. ART_5806 ART_6091 ALWAYS be aware of the machine’s position and of your surroundings WARNING before activating any control function. Control Description Squeeze the Function Enable Switch to enable Lift & Drive & Steer functions from 1 Function Enable Switch Control Handle.
  • Page 21 Section 6 - Controls & Components October 2024 Lower Controls ILLUSTRATION No. ART_5804 ART_6091 ALWAYS be aware of the machine’s position and of your surroundings WARNING before activating any control function. Control Description Menu Escape Button Press this button to exit the Menu screen. LED Display Indicates the state of battery charge and displays diagnostic codes when necessary.
  • Page 22 Section 7 - Workplace Inspection October 2024 Workplace Inspection Workplace Inspection DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section. Inspect the workplace and determine whether the workplace is suitable for safe machine operation.
  • Page 23 Section 8 - Operating Instructions and Function Tests October 2024 Functions Tests Functions Tests DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section. This section provides instructions and tests for each function of machine operation.
  • Page 24 Section 8 - Operating Instructions and Function Tests October 2024 platform controls. ART_5015 2. Turn the Key Switch to the ground control. 3. Observe the diagnostic LED readout on the ECU window located at the Platform Controls. • Result: The LED should look similar to the picture right. Test the Emergency Stop Function 1.
  • Page 25 Section 8 - Operating Instructions and Function Tests October 2024 Test the Emergency Stop Function 1. Push in the ground red Emergency Stop switch to the Off position ART_5231 (pushed in). • Result: No functions should operate. 2. Pull out the ground red Emergency Stop switch to the On position (pulled Main Power/ Lower Emergency Stop Switch out).
  • Page 26 Section 8 - Operating Instructions and Function Tests October 2024 control panel. 4. Depress the thumb rocker switch in the direction identified by the yellow right arrow on the control panel. • Result: The steer wheels should turn in the direction that the yellow right arrow points on the control panel.
  • Page 27 Section 8 - Operating Instructions and Function Tests October 2024 Operating Instructions ART_6091 Check the area above and around the machine for obstructions and WARNING electrical power lines before operating the machine. Emergency Stop Push in the red Emergency Stop button to the Off position (pushed ART_5231 in) at the ground controls or the platform controls to stop all machine functions.
  • Page 28 Section 8 - Operating Instructions and Function Tests October 2024 Operation from Ground Drive and steer functions are not available from the ground controls. 1. Turn the Key Switch to ground control. 2. Pull the red Emergency Stop button out to the On position (pulled out) at both the ground and platform controls.
  • Page 29 Section 8 - Operating Instructions and Function Tests October 2024 To Drive 1. Press the drive function select button. 2. Press and hold the Function Enable Switch on the control handle. Increase speed: Slowly move the control handle off center. •...
  • Page 30 Section 8 - Operating Instructions and Function Tests October 2024 of wood is level. While holding the piece of wood level, measure the distance from the bottom of the piece of wood to the ground. Divide the tape measure distance (rise) by the length of the piece of wood (run) and multiply by 100. Example: •...
  • Page 31 Section 8 - Operating Instructions and Function Tests October 2024 Maintenance Lock DEATH OR SERIOUS INJURY HAZARD! NEVER perform work or inspection on the machine with the platform elevated without first blocking the scissor assembly with the ART_6091 WARNING Maintenance Lock. DO NOT engage the Maintenance Lock unless the platform in empty of tools and material.
  • Page 32 Section 8 - Operating Instructions and Function Tests October 2024 How to fold down the Guardrails The platform railing system consists of three fold down rail section for the deck extension and three sections for the main deck. All sections are held in place by spring pins.
  • Page 33 Section 8 - Operating Instructions and Function Tests October 2024 Error Indicator Readout The Error Indicator Readout is located at the Upper Controls station. Consult the Service & Parts Manual for Alarm Code descriptions. Manuals are available free online at www.MECawp.com. If a load in excess of the rated load is detected the lift or lower will be restricted.
  • Page 34 Charge the battery in a well-ventilated area. Use proper AC input voltage for charging as indicated on the machine. ART_6091 CAUTION Use only MEC authorized batteries and chargers. The charger will indicate the status of the charge cycle. ILLUSTRATION No. ART_6199...
  • Page 35 Section 10 - Maintenance October 2024 Maintenance Maintenance DO NOT operate this machine until you have read and understood this manual, have performed the Workplace Inspection, Pre-Start Inspection and Routine Maintenance, and have completed all the test operations detailed in the Operating Instructions section. The operator must conduct a Pre-Start Inspection of the machine and test all functions before each work shift to check for damage, malfunction and unauthorized modification.
  • Page 36 Section 10 - Maintenance October 2024 Always clean the surrounding area before opening hydraulic systems. Use only recommended lubricants. Improper lubricants or incompatible lubricants may cause as much damage as no lubrication. ART_6091 CAUTION Watch for makeshift “fixes” which can jeopardize safety as well as lead to more costly repair.
  • Page 37 Section 10 - Maintenance October 2024 Lubrication Operator may perform routine maintenance only. Lubrication listed as Scheduled Maintenance must be performed by a qualified service technician. FULL Controls Tray Breather Cap Hydraulic Filter Hydraulic Reservoir Hydraulic Pump & Motor ART_5181 Specification Item Frequency...
  • Page 38 Section 10 - Maintenance October 2024 Pre-Start Inspection Checklist The operator must conduct a Pre-Start Inspection of the machine before each work shift. DO NOT use a damaged or malfunctioning machine. Be sure that the operator’s manual are complete, legible and in the storage container located in the platform.
  • Page 39 Section 10 - Maintenance October 2024 Frequent Inspection Checklist This checklist must be used at 3-month intervals or every 150 hours of ART_6091 machine use, whichever occurs first. Failure to do so could result in WARNING death or serious injury. Frequent Maintenance Inspections should be conducted by qualified service technicians only.
  • Page 40 Section 10 - Maintenance October 2024 Maintenance Inspection Report SE & MICRO Series Scissors Fleet Equipment Number Date Inspector Name Inspector Co. Model Number Address Serial Number Hour Meter Signature Machine Owner & address Maintain all service records in accordance with ANSI A92.24-2019 * If an inspection receives an “N”, remove from service.
  • Page 41 Section 11 - Warning and Instructional Decals October 2024 Decals Decals 22 23 12 13 12 13 Battery Modue Control Modue *Opposite side also *Opposite side also Platform Deck Extended Xtra Deck Remove Page 37 Micro26 - XD - Operator’s Manual - 96493...
  • Page 42 Section 11 - Warning and Instructional Decals October 2024 47839 Qty. - 2 94114 Qty. - 2 41646 Qty. - 3 41748 Qty. - 3 95215 Qty. - 1 41641 Qty. - 1 41666 Qty. - 1 41642 Qty. - 1 94659 Qty.
  • Page 43 Section 11 - Warning and Instructional Decals October 2024 Serial Plate Serial Plate Location The serial plate is attached to the machine at the time of manufacture. Important information about the machine is recorded on the serial plate. ILLUSTRATION No. ART_5028 Serial Plate Description MODEL NUMBER: Identifies the machine.
  • Page 44 Wires disconnected, broken, or loose? • Diagnostic panel on? • Platform Control Box Fault Code present? • Contact MEC Technical Support or refer to service manual. Manuals are available free online at www.MECawp.com. Page 40 Micro26 - XD - Operator’s Manual - 96493...
  • Page 45 MEC machinery. Truck drivers are responsible for loading and securing machines, and should be properly trained and authorized to operate MEC machinery. ART_6091 WARNING Drivers are also responsible for selecting the correct and appropriate trailer according to government regulations and company policy.
  • Page 46 Section 13 - Transport and Lifting Instructions October 2024 Driving or Winching onto or off of a Transport Vehicle Always attach the machine to a winch when loading or unloading from a truck or trailer by driving. ART_6091 WARNING Read and understand all safety, control, and operating information found on the machine and in this manual before operating the machine.
  • Page 47 Section 13 - Transport and Lifting Instructions October 2024 Securing to truck or trailer for Transport Turn the Key Switch to off and remove the key before • transport. • Inspect the entire machine for loose or unsecured items. • Chock the wheels •...
  • Page 48 October 2024 Notes Page 44 Micro26 - XD - Operator’s Manual - 96493...
  • Page 49 October 2024 Notes Page 45 Micro26 - XD - Operator’s Manual - 96493...
  • Page 50 MEC Parts Order Form Phone: 559-842-1523 Fax: 559-400-6723 Email: Parts@mecawp.com Please Fill Out Completely: Date: Ordered By: Account: Your Fax No.: Bill to: Ship to: Purchase Order Number Ship VIA ** All orders MUST have a Purchase Order Number **Fed Ex shipments require Fed Ex account number...
  • Page 51 MEC Aerial Platform Sales Corp. and is found upon inspection by MEC Aerial Platform Sales Corp. to be defective in material and/or workmanship. MEC Aerial Platform Sales Corp. shall not be liable for any consequential, incidental or contingent damages whatsoever.
  • Page 52 MEC Aerial Work Platforms 1401 S. Madera Avenue, Kerman, CA 93630 USA Toll Free: 1-877-632-5438 Phone: 1-559-842-1500 Fax: 1-559-842-1520 info@MECawp.com www.MECawp.com...
