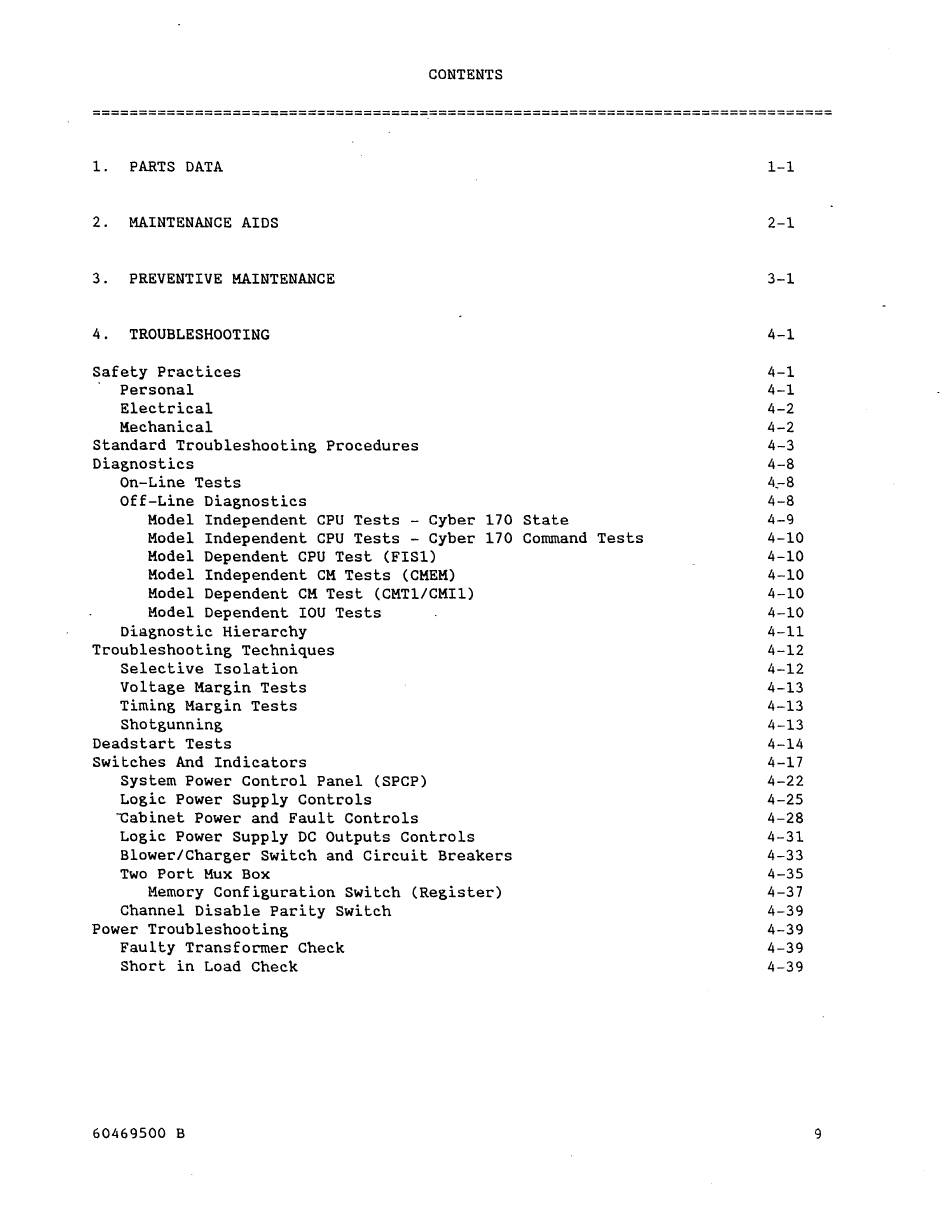

CONTENTS
===============================================================================
1.
PARTS DATA
2.
MAINTENANCE AIDS
3.
PREVENTIVE MAINTENANCE
4.
TROUBLESHOOTING
Safety Practices
Personal
Electrical
Mechanical
Standard Troubleshooting Procedures
Diagnostics
On-Line Tests
Off-Line Diagnostics
Model Independent CPU Tests - Cyber 170 State
Model Independent CPU Tests - Cyber 170 Command Tests
Model Dependent CPU Test (FISl)
Model Independent CM Tests (CHEM)
Model Dependent CM Test (CMTl/CMil)
Model Dependent IOU Tests
Diagnostic Hierarchy
Troubleshooting Techniques
Selective Isolation
Voltage Margin Tests
Timing Margin Tests
Shotgunning
Deadstart Tests
Switches And Indicators
System Power Control Panel (SPCP)
Logic Power Supply Controls
-Cabinet Power and Fault Controls
Logic Power Supply DC Outputs Controls
Blower/Charger Switch and Circuit Breakers
Two Port Mux Box
Memory Configuration Switch (Register)
Channel Disable Parity Switch
Power Troubleshooting
Faulty Transformer Check
Short in Load Check
60469500 B
1-1
2-1
3-1
4-1
4-1
4-1
4-2
4-2
4-3
4-8
4~-8
4-8
4-9
4-10
4-10
4-10
4-10
4-10
4-11
4-12
4-12
4-13
4-13
4-13
4-14
4-17
4-22
4-25
4-28
4-31
4-33
4-35
4-37
4-39
4-39
4-39
4-39
9
