SYSTEM POWER CONTROL PANEL (SPCP)
Figure 4-8 shows the controls and indicators of the optional wall-mounted
System Power Control Panel (SPCP).
These controls and indicators are
described in table 4-3.
4-22

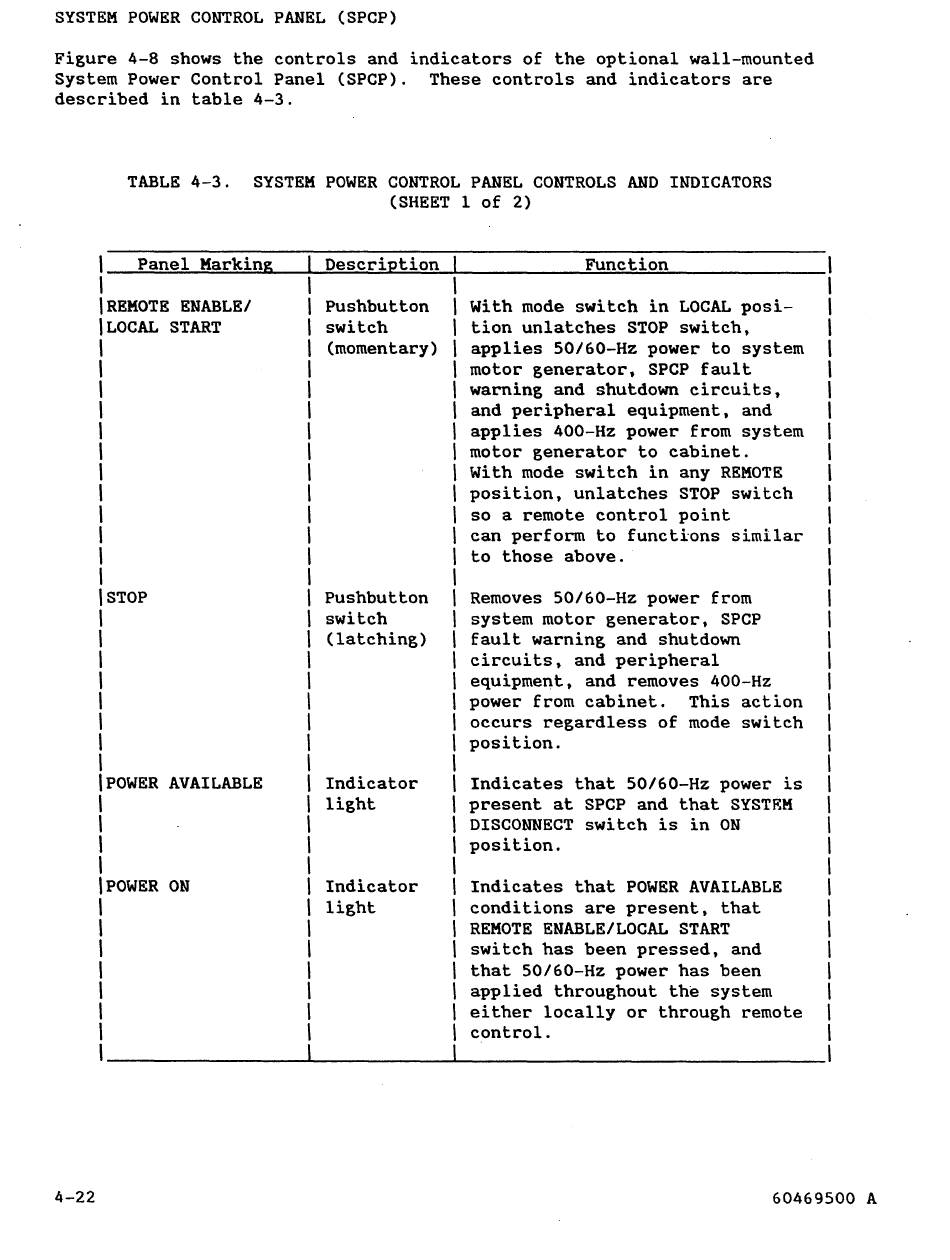

TABLE 4-3.
SYSTEM POWER CONTROL PANEL CONTROLS AND INDICATORS
(SHEET 1 of 2)
I
Panel Marking
I
IREMOTE ENABLE/
ILOCAL START
I
I
I
I
I
I
I
I
I
I
I
I
ISTOP
'
I
'
I
' '
'
'
IPOWER AVAILABLE
I
'
I
'
IPOWER ON
I
I
'
'
I
' '
Description
Pushbutton
switch
(momentary)
Pushbutton
switch
(latching)
Indicator
light
Indicator
light
Function
With mode switch in LOCAL posi-
tion unlatches STOP switch,
applies 50/60-Hz power to system
motor generator, SPCP fault
warning and shutdown circuits,
and peripheral equipment, and
applies 400-Hz power from system
motor generator to cabinet.
With mode switch in any REMOTE
position, unlatches STOP switch
so a remote control point
can perform to functions similar
to those above.
Removes 50/60-Hz power from
system motor generator, SPCP
fault warning and shutdown
circuits, and peripheral
equipment, and removes 400-Hz
power from cabinet.
This action
occurs regardless of mode switch
position.
Indicates that 50/60-Hz power is
present at SPCP and that SYSTRM
DISCONNECT switch is in ON
position.
Indicates that POWER AVAILABLE
conditions are present, that
REMOTE ENABLE/LOCAL START
switch has been pressed, and
that 50/60-Hz power has been
applied throughout the system
either locally or through remote
control.
'~~~~~~~~--~~~~~---~~~~~~~~~~~~~~--
60469500 A
