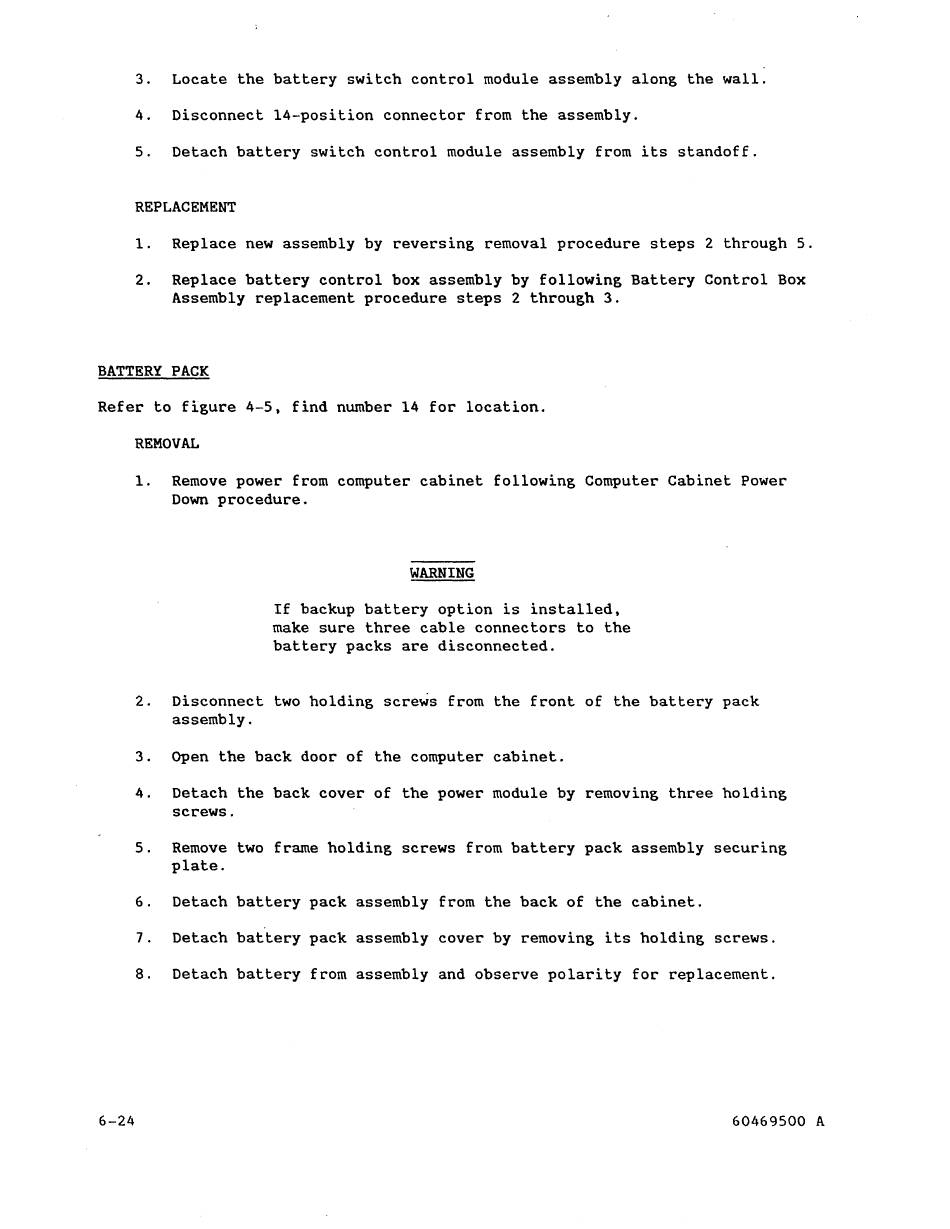

3. Locate the battery switch control module assembly along the wall.
4. Disconnect 14-position connector from the assembly.
5. Detach battery switch control module assembly from its standoff.
REPLACEMENT
1. Replace new assembly by reversing removal procedure steps
2
through
5.
2. Replace battery control box assembly by following Battery Control Box
Assembly replacement procedure steps
2
through
3.
BATTERY PACK
Refer to figure 4-5, find number 14 for location.
6-24
REMOVAL
1. Remove power from computer cabinet following Computer Cabinet Power
Down procedure.
WARNING
If backup battery option is installed,
make sure three cable connectors to the
battery packs are disconnected.
2. Disconnect two holding screws from the front of the battery pack
assembly.
3. Open the back door of the computer cabinet.
4. Detach the back cover of the power module by removing three holding
screws.
5. Remove two frame holding screws from battery pack assembly securing
plate.
6.
Detach battery pack assembly from the back of the cabinet.
7.
Detach battery pack assembly cover by removing its holding screws.
8.
Detach battery from assembly and observe polarity for replacement.
