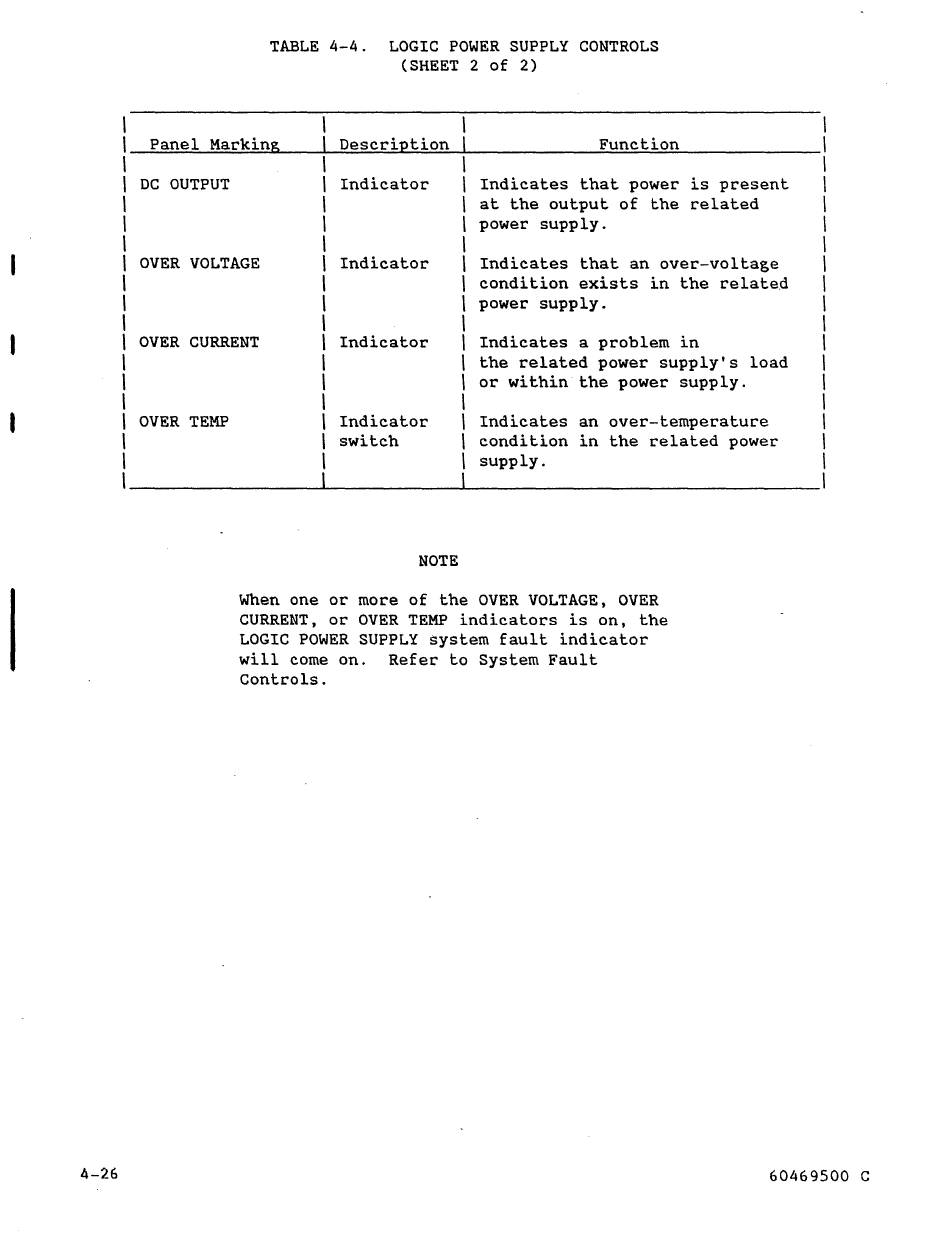

TABLE 4-4.
LOGIC POWER SUPPLY CONTROLS
(SHEET 2 of 2)
Panel Marking
Description
Function
DC OUTPUT
Indicator
Indicates that power is present
at the output of the related
power supply.
OVER VOLTAGE
Indicator
Indicates that an over-voltage
condition exists in the related
power supply.
OVER CURRENT
Indicator
Indicates a problem in
OVER TEMP
Indicator
switch
NOTE
the related power supply's load
or within the power supply.
Indicates an over-temperature
condition in the related power
supply.
When one or more of the OVER VOLTAGE, OVER
CURRENT, or OVER TEMP indicators is on, the
LOGIC POWER SUPPLY system fault indicator
will come on.
Refer to System Fault
Controls.
