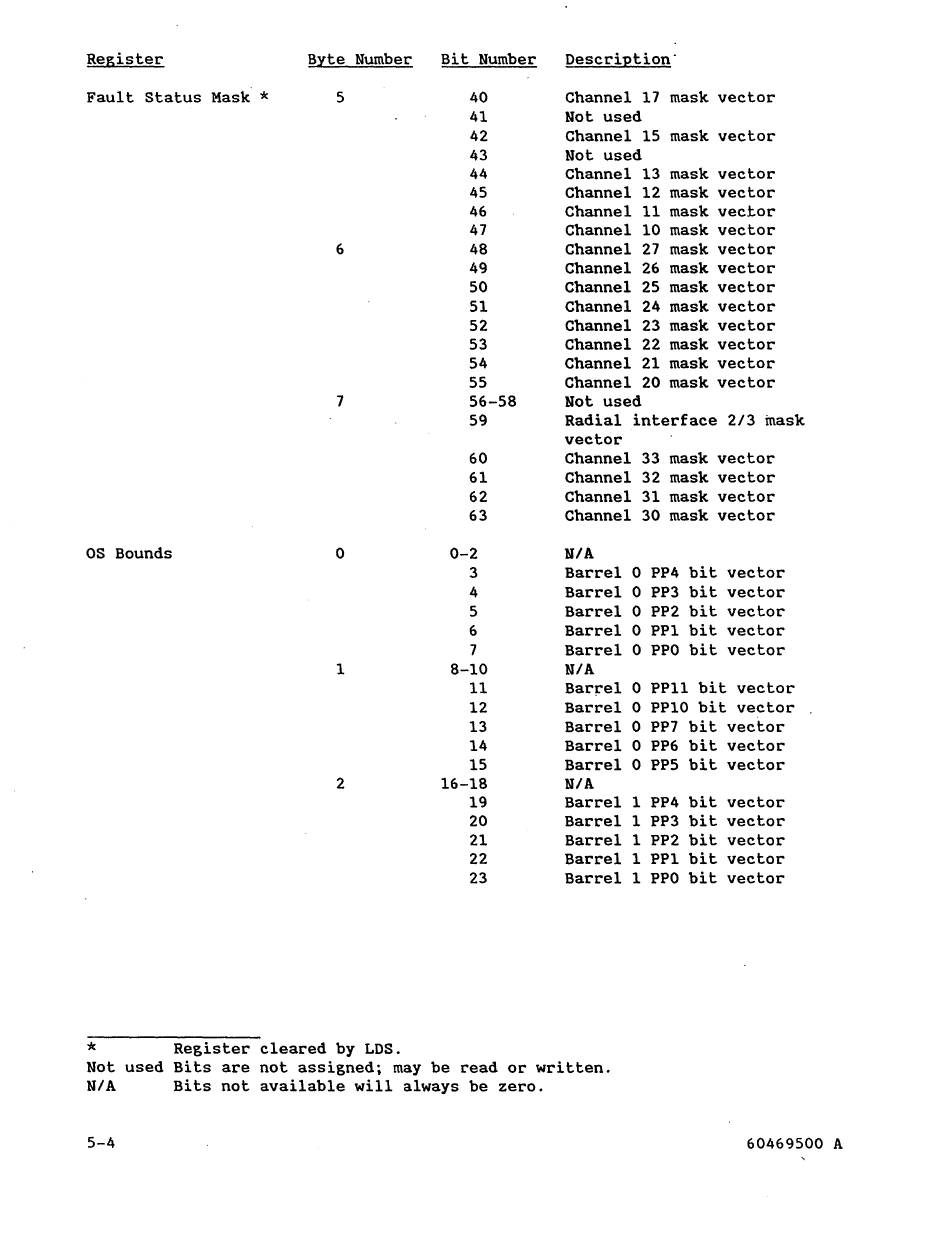

Control Data Corporation CYBER 180 810 Maintenance And Parts Manual page 80

Register Byte Number
Bit Number
Description·
Fault Status Mask
*
5 40 Channel 17 mask vector
41 Not used
42
Channel 15 mask vector
43
Not used
44
Channel 13 mask vector
45 Channel 12 mask vector
46 Channel
11
mask vector
47 Channel 10 mask vector
6 48 Channel 27 mask vector
49
Channel 26 mask vector
50
Channel 25 mask vector
51 Channel 24 mask vector
52 Channel 23 mask vector
53 Channel 22 mask vector
54 Channel 21 mask vector
55 Channel 20 mask vector
7 56-58
Not used
59
Radial interface 2/3 mask
vector
60 Channel 33 mask vector
61 Channel 32 mask vector
62 Channel 31 mask vector
63 Channel 30 mask vector
OS Bounds
0 0-2
N/A
3 Barrel 0 PP4 bit vector
4
Barrel 0 PP3 bit vector
5
Barrel 0 PP2 bit vector
6
Barrel 0 PPl bit vector
7 Barrel 0 PPO bit vector
1
8-10
N/A
11
Barrel 0 PPll bit vector
12
Barrel 0 PPlO bit vector
13 Barrel 0 PP7 bit vector
14 Barrel 0 PP6 bit vector
15 Barrel 0 PPS bit vector
2 16-18
N/A
19 Barrel 1 PP4 bit vector
20 Barrel 1 PP3 bit vector
21 Barrel 1 PP2 bit vector
22 Barrel 1 PPl bit vector
23 Barrel 1 PPO bit vector
*
Register cleared by LOS.
Not used Bits are not assigned; may be read or written.
N/A Bits not available will always be zero.
5-4 60469500 A
