I
THERMISTOR
TB1
TOP VIEW OF A CABINET
COLUMN WITH ACCESS PANEL OFF
Cll40
MOTOR
BLOWER
ASSEMBLY
BLOWER
MOUNTING
FRAME
AIR
OUTLET

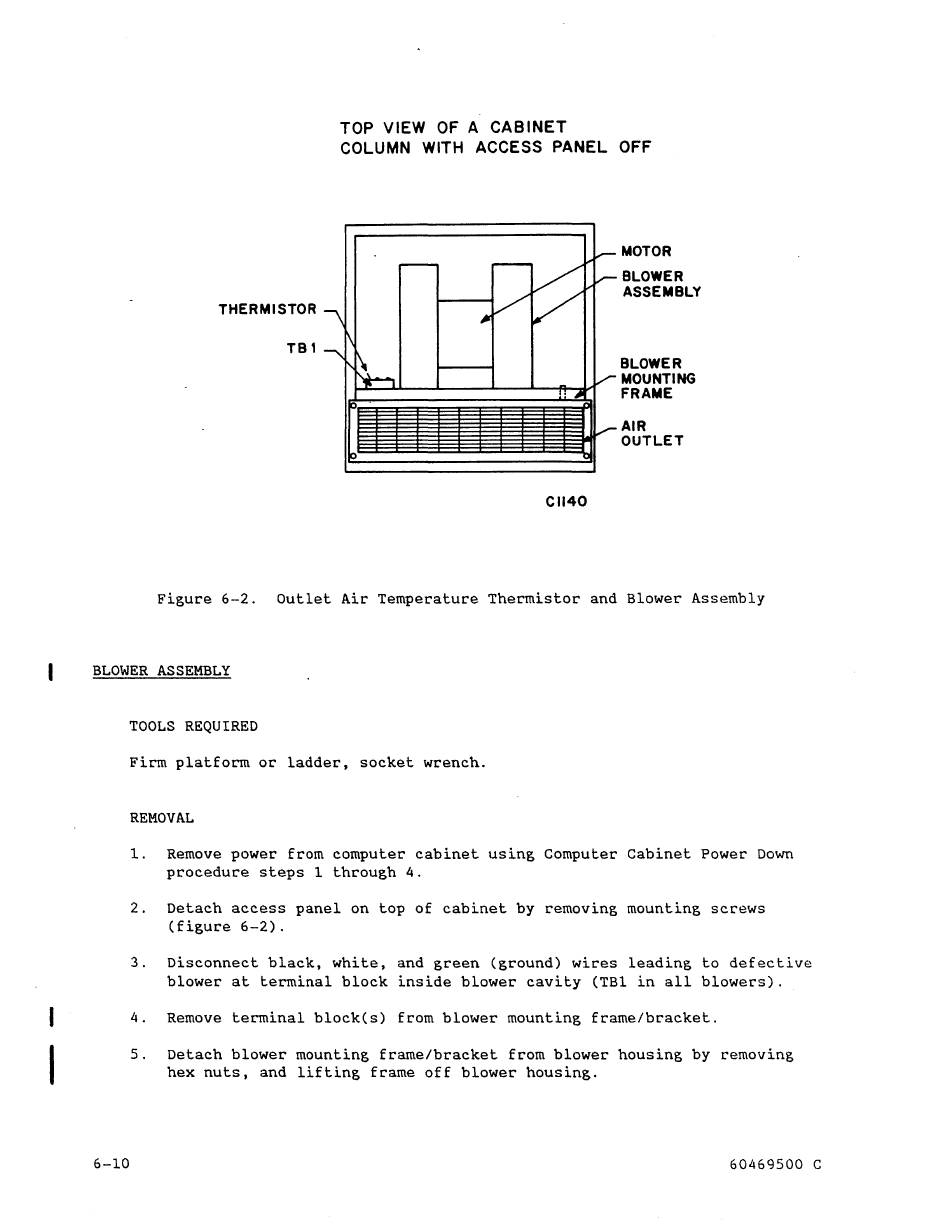

Figure 6-2.
Outlet Air Temperature Thermistor and Blower Assembly
BLOWER ASSEMBLY
6-10
TOOLS REQUIRED
Firm platform or ladder, socket wrench.
REMOVAL
1.
Remove power from computer cabinet using Computer Cabinet Power Down
procedure steps 1 through 4.
2.
Detach access panel on top of cabinet by removing mounting screws
(figure 6-2).
3.
Disconnect black, white, and green (ground) wires leading to defective
blower at terminal block inside blower cavity (TBl in all blowers).
4.
Remove terminal block(s) from blower mounting frame/bracket.
5.
Detach blower mounting frame/bracket from blower housing by removing
hex nuts, and lifting frame off blower housing.
60469500
c
