Control Data Corporation CYBER 180 810 Maintenance And Parts Manual page 109

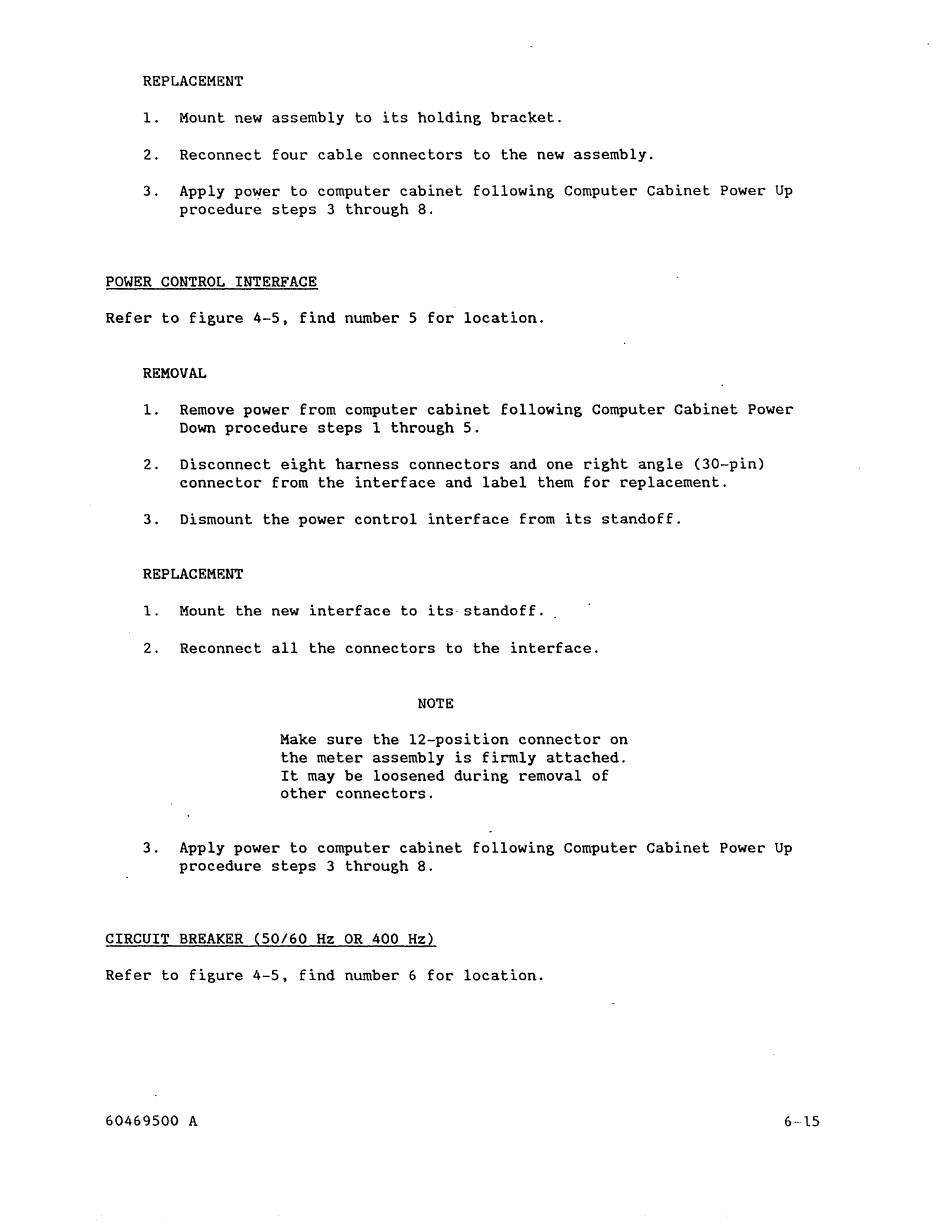

REPLACEMENT
1. Mount new assembly to its holding bracket.
2. Reconnect four cable connectors to the new assembly.
3. Apply po~er to computer cabinet following Computer Cabinet Power Up
procedure steps 3 through
8.
POWER CONTROL INTERFACE
Refer to figure 4-5, find number 5 for location.
REMOVAL
1. Remove power from computer cabinet following Computer Cabinet Power
Down procedure steps 1 through 5.
2. Disconnect eight harness connectors and one right angle (30-pin)
connector from the interface and label them for replacement.
3. Dismount the power control interface from its standoff.
REPLACEMENT
1.
Mount the new interface to its· standoff.
2. Reconnect all the connectors to the interface.
NOTE
Make sure the 12-position connector on
the meter assembly is firmly attached.
It may be loosened during removal of
other connectors.
3. Apply power to computer cabinet following Computer Cabinet Power Up
procedure steps 3 through 8.
CIRCUIT BREAKER (50/60 Hz OR 400 Hz)
Refer to figure 4-5, find number 6 for location.
