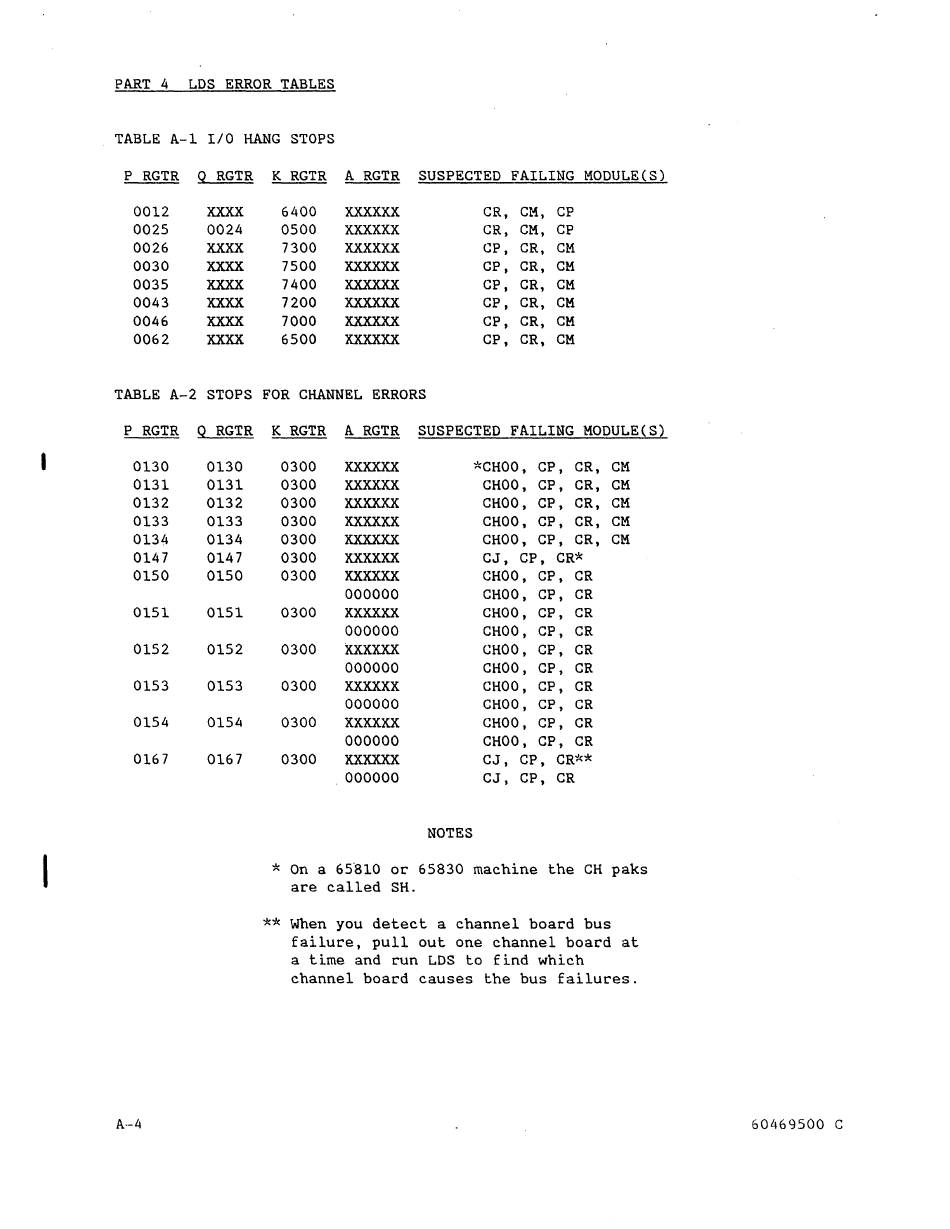

PART 4 LDS ERROR TABLES
TABLE A-1 I/0 HANG STOPS
P RGTR Q RGTR
K
RGTR A RGTR
SUSPECTED FAILING MODULE(S)
0012
xxxx
6400
xxxxxx
CR, CM, CP
0025 0024 0500
xxxxxx
CR, CM, CP
0026
xxxx
7300
xxxxxx
CP, CR, CM
0030
xxxx
7500
xxx.xxx
CP, CR, CM
0035
xxxx
7400
xxx.xxx
CP, CR, CM
0043
xxxx
7200
xxx.xxx
CP, CR, CM
0046
xxxx
7000
xxxxxx
CP, CR, CM
0062
xx xx
6500
xxx.xxx
CP, CR, CM
TABLE A-2 STOPS FOR CHANNEL ERRORS
P RGTR
Q
RGTR
K
RGTR A RGTR
SUSPECTED FAILING MODULE(S)
I
0130 0130 0300
xx.xxxx
*CHOO, CP, CR, CM
0131 0131 0300
xxxxxx
CHOO, CP, CR, CM
0132 0132 0300
xxxxxx
CHOO, CP, CR, CM
0133 0133 0300
xxxxx.x
CHOO, CP, CR, CM
0134
0134 0300
xx.xxxx
CHOO, CP, CR, CM
0147 0147 0300
xxxxxx
CJ, CP, CR*
0150 0150 0300
xx.xxxx
CHOO, CP, CR
000000 CHOO, CP, CR
0151
0151
0300
xxxxxx
CHOO, CP, CR
000000 CHOO, CP, CR
0152 0152 0300
xxxxxx
CHOO, CP, CR
000000 CHOO, CP, CR
0153 0153 0300
xxxxxx
CHOO, CP, CR
000000 CHOO, GP, CR
0154 0154 0300
xxxxxx
CHOO, CP, CR
000000
CHOO, CP, CR
0167 0167 0300
xxx.xxx
CJ, CP, CR**
000000
CJ, CP, CR
NOTES
I
*
On a 65810 or 65830 machine the CH paks
are called SH.
** When you detect a channel board bus
failure, pull out one channel board at
a time and run LDS
to
find which
channel board causes the bus failures.
A--4 60469500
