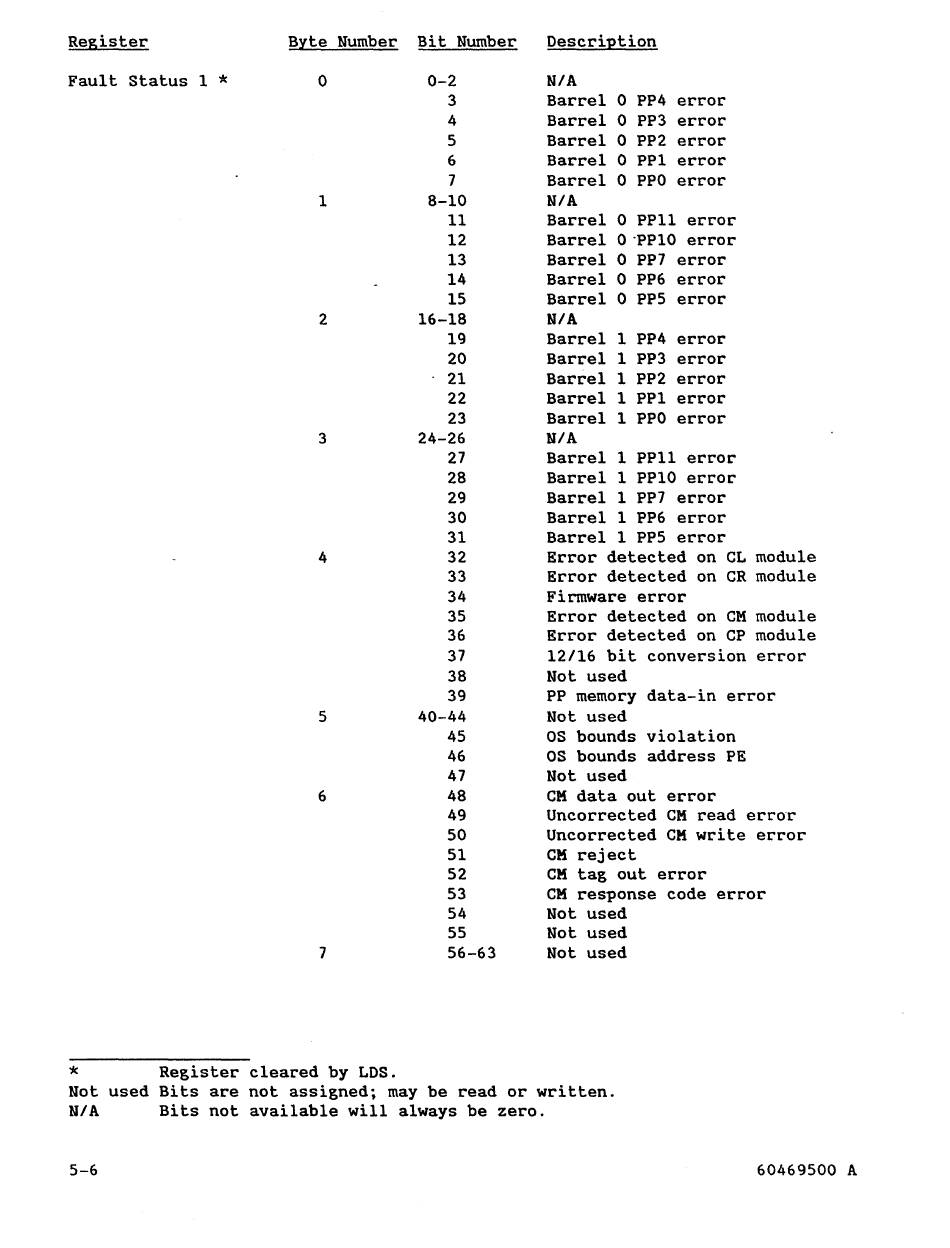

Control Data Corporation CYBER 180 810 Maintenance And Parts Manual page 82

Register
Byte Number
Bit Number
Description
Fault Status 1
*
0 0-2
N/A
3
Barrel 0 PP4 error
4
Barrel 0 PP3 error
5 Barrel 0 PP2 error
6 Barrel 0 PPl error
7
Barrel 0 PPO error
1 8-10
N/A
11
Barrel 0 PPll error
12 Barrel 0 ·PPlO error
13 Barrel 0 PP7 error
14 Barrel 0 PP6 error
15 Barrel 0 PPS error
2 16-18 N/A
19 Barrel 1 PP4 error
20 Barrel
1
PP3 error
21 Barrel
1
PP2 error
22
Barrel
1
PPl error
23 Barrel
1
PPO error
3
24-26
H/A
27 Barrel
1
PPll error
28 Barrel
1
PPlO error
29 Barrel
1
PP7 error
30
Barrel 1 PP6 error
31
Barrel
1
PPS error
4
32 Error detected on CL module
33
Error detected on CR module
34 Firmware error
35 Error detected on CM module
36 Error detected on CP module
37 12116 bit conversion error
38 Not used
39 PP memory data-in error
5
40-44
Not used
45
OS bounds violation
46 OS bounds address PE
47 Not used
6 48 CM data out error
49 Uncorrected CM read error
so
Uncorrected CM write error
51 CM reject
52 CM tag out error
53 CM response code error
54 Not used
SS Not used
7 56-63 Not used
*
Register cleared by LOS.
Not used Bits are not assigned; may be read or written.
N/A Bits not available will always be zero.
5-6 60469500 A
