Pureform P26
Optical Shield
NOTE:
• This instruction sheet refers to LEDgineIP66 fixtures.
•
There are configurations compatible with all LEDgineIP66, 40 LED products.
• Although illustration shows installation for one configuration, instructions
apply to all versions.
CAUTION : Shielding CAN ONLY BE USED up to a +25°C
ambient with the following configurations:
•
A12
•
A13
A
B
11/14/2024 page 2 www.lumec.com
Instructions d'Installation

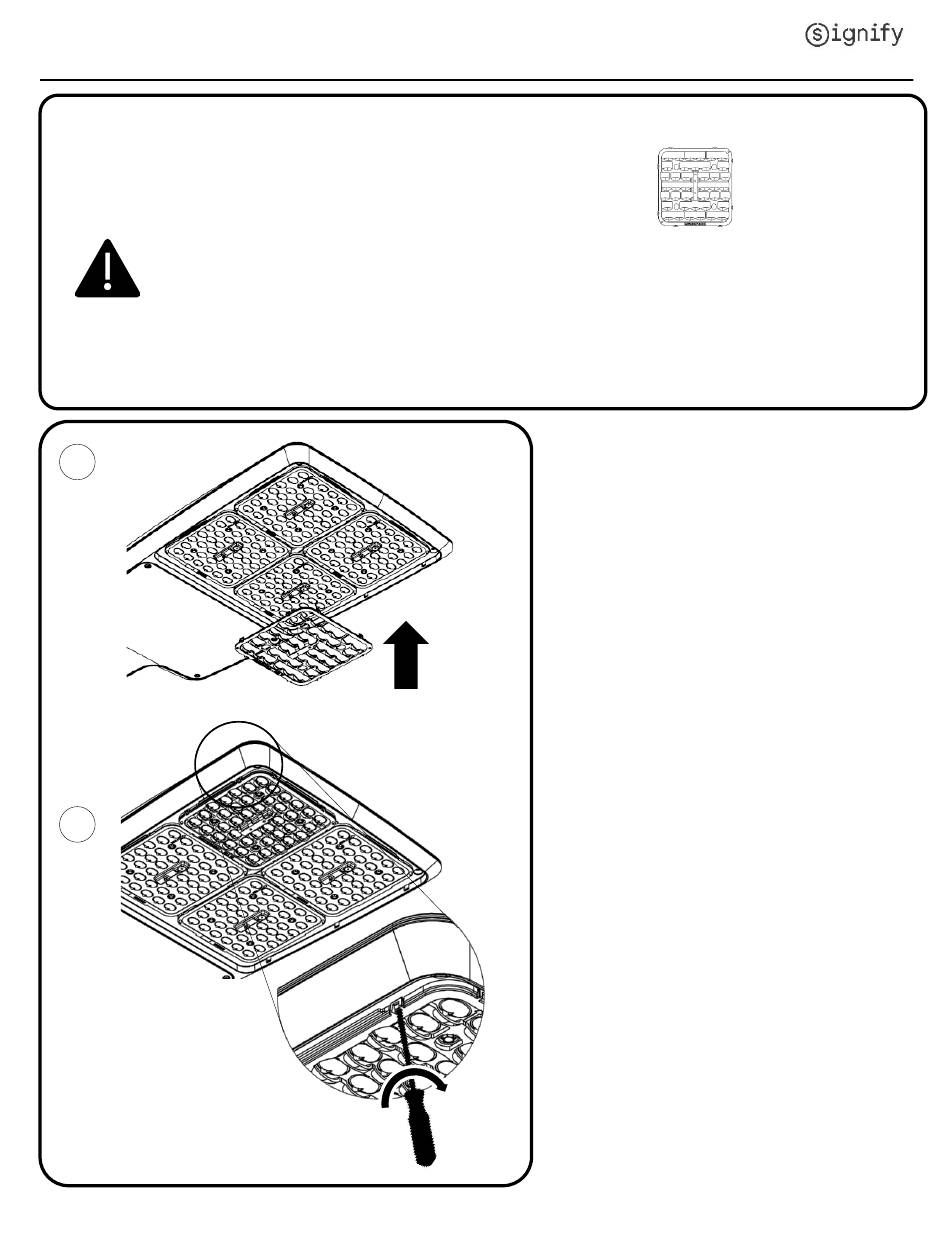

Shield installation (A):
To install, gently push the shields to snap into
the modules on the allocated features (All
snapping features need to be securely
snapped).
Shield removal (B)
In case of shield removal, use a small
screwdriver to remove the shield for each
snapping feature (Note : release the snapping
by slightly turning the screwdriver)
40LEDs Mini
HOUSE SIDE SHIELD
)
40LEDS IP66 (HSS
