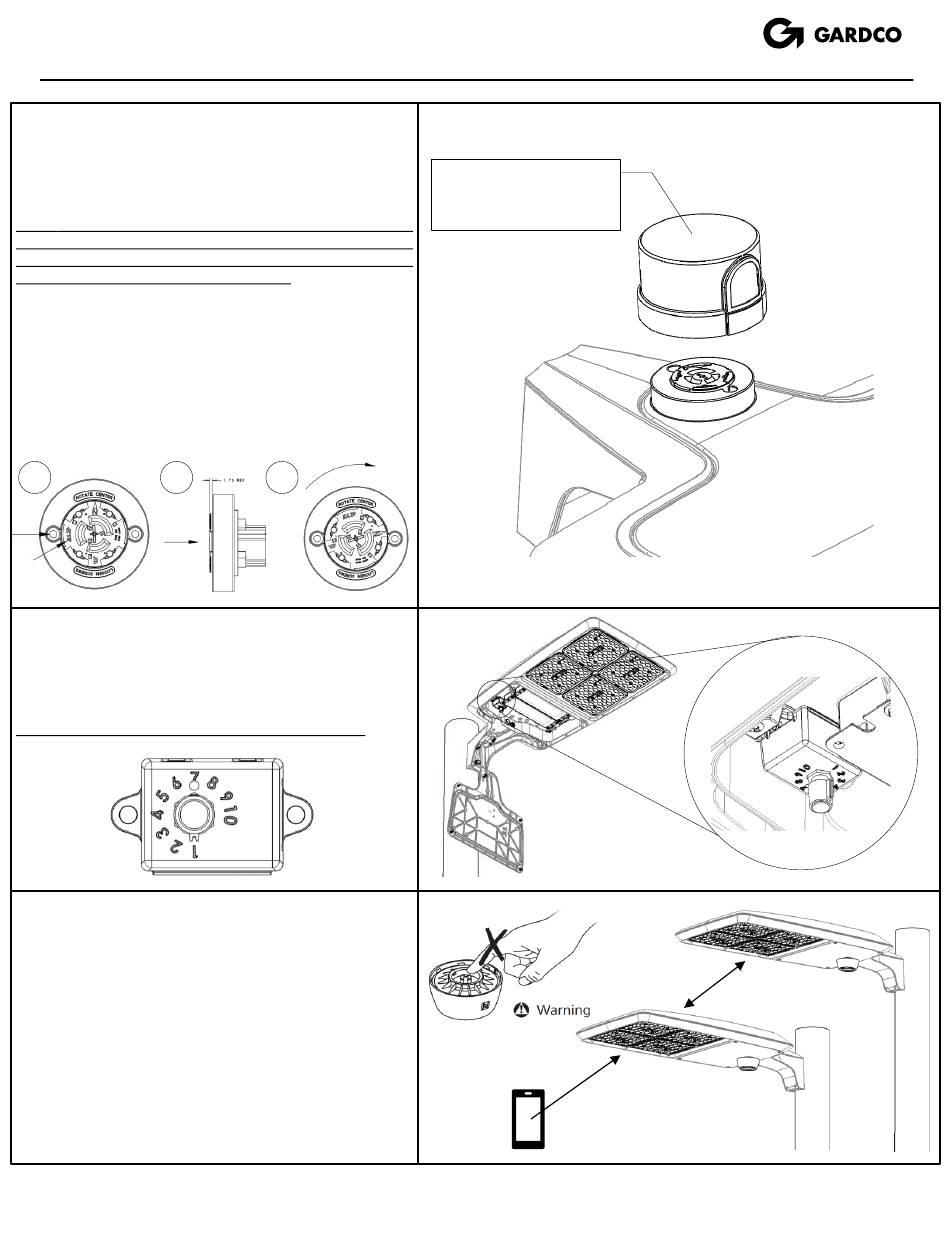

SIGNIFY Gardco Form Ten Series Installation Manual page 11

OPTION: RECEPTACLE
This option is adjustable. It is important to use a shorting cap,
photo control or another compatible device with this option.
NOTE: IF THE LOCK RING BECOME SEPARATED FROM THE INNER
HOUSING ASSEMBLY, FOLLOW THE THESE STEPS TO SNAP IT BACK
INTO PLACE TO ASSEMBLE THE LOCK RING ONTO THE INNER
HOUSING, THESE STEPS MUST BE FOLLOWED:
STEP 1: ALIGN THE TE LOGO WITH ONE OF THE SCREW HOLES ON
THE LOCK RING
STEP 2: SNAP THE LOCK RING ONTO THE INNER HOUSING
ASSEMBLY
STEP 3: TURN THE LOCK RING FULLY CLOCKWISE UNTIL IT STOPS
(THE NORTH INDICATOR WILL BE ADJACENT TO ONE OF THE
SCREW HOLES IN THE LOCK RING)
1 2
OPTION: FAWS
Open the luminaire door by unscrewing the four screws. Set FAWS
to position 10 if using other dimming or controls.
NOTE: DON'T FORGET TO REAPPLY THE 18 IN-LBS TORQUE
OPTION: Interact Pro Outdoor Parking Sensor
Stand-alone operation: In a stand-alone deployment, the
Multisensor works as application controller. The sensor can be
configured via the Philips Outdoor Multisensor configurator
mobile application available on GooglePlayStore.
Connected operation: In a
Multisensor works as input device. The sensor can be configured
via the mobile App and via the Interact City lighting management
system. The Multisensor works together with Signify's Type A D4i
certified control devices.
page
ARM MOUNT (AR)
3
connected deployment, the
A shorting cap, photo control
or another compatible device
must be installed.
Max. 15 m
(49 ft)
443560818790 Rev F
Max. 49 m
(160 ft)
