SIGNIFY HADCO I4 Installation Instructions

www.hadco.com
MOUND UP EARTH AROUND
FIXTURE FOR DRAINAGE
GROUND LEVEL
ANCHOR HOLE MAY
BE DRILLED IN RIBS
AS REQUIRED
WIRING
COMPARTMENT
MUST BE POTTED
(SEE CAUTION #2)
LIQUID-TIGHT
CONDUIT FITTING
(BY OTHERS)
(MAX. TORQUE
36 FT.-LBS.)
CAUTION:
1. The housing should not be installed in insulating materials such as bark, vermiculite, etc. for the full depth
of the housing. Surface use of these materials around BUT NOT ON TOP of the fixture is acceptable.
2. Conduit entry ways should be properly sealed around threads and duct seal should be used in the
conduit around the wires to prevent water entry through the conduit. Unused conduit entry ways
should be properly plugged and sealed. Two part epoxy must be used and wire compartment sealing
instructions must be followed. Failure to do so will void warranty.
3. The fixture should not be installed in low lying areas or where water may accumulate and stand for long
periods of time.
4. Soil should be mounded up around the fixture to promote drainage.
5. Do not install fixture within 10 feet (3 meters) of a pool, spa or fountain.
6. Some fixtures are supplied with Desi-Pak. If it is present, DO NOT remove. It will absorb moisture,
preventing internal condensation on the lens.
This fixture is intended for installation in accordance with the National Electrical Code and local code
specifications. Failure to adhere to these codes and instructions may result in serious injury and/or damage
to the ballast and void the warranty. These instructions do not purport to cover all details or variations in
equipment, nor to provide for every possible contingency related to installation, operation, maintenance,
or mounting situation. Should specific problems occur that are not addressed by these instructions, contact
your Sales Representative or distributor for assistance. Retain these instructions for future reference.
SAFETY WARNING:
ALWAYS TURN FIXTURE OFF/DISCONNECT POWER AND ALLOW TO COOL BEFORE
PERFORMING ANY MAINTENANCE, INCLUDING RELAMPING AND CLEANING!
This fixture can become very HOT! The fixture housing and lens, especially if it is glass, can become hot enough
to blister hands. Attention should be paid to where the fixture is mounted, particularly if it can be touched by
children or pets. To help prevent premature failure, decreased performance, overheating and risk of fire, keep
fixture and lens clean and free of leaves, mulch, debris and mineral deposits from water. Failure to do so will void
warranty and could cause a fire. The fixture and lens can be cleaned using a soft cloth and a solution of mild
liquid soap and warm water. Wipe clean and dry with a soft, lint-free dry cloth. Avoid polishing fixture or lens.
Signify North America Corporation
200 Franklin Square Drive
Somerset, NJ 08873, USA
Phone: 855-486-2216
32001818, revision C

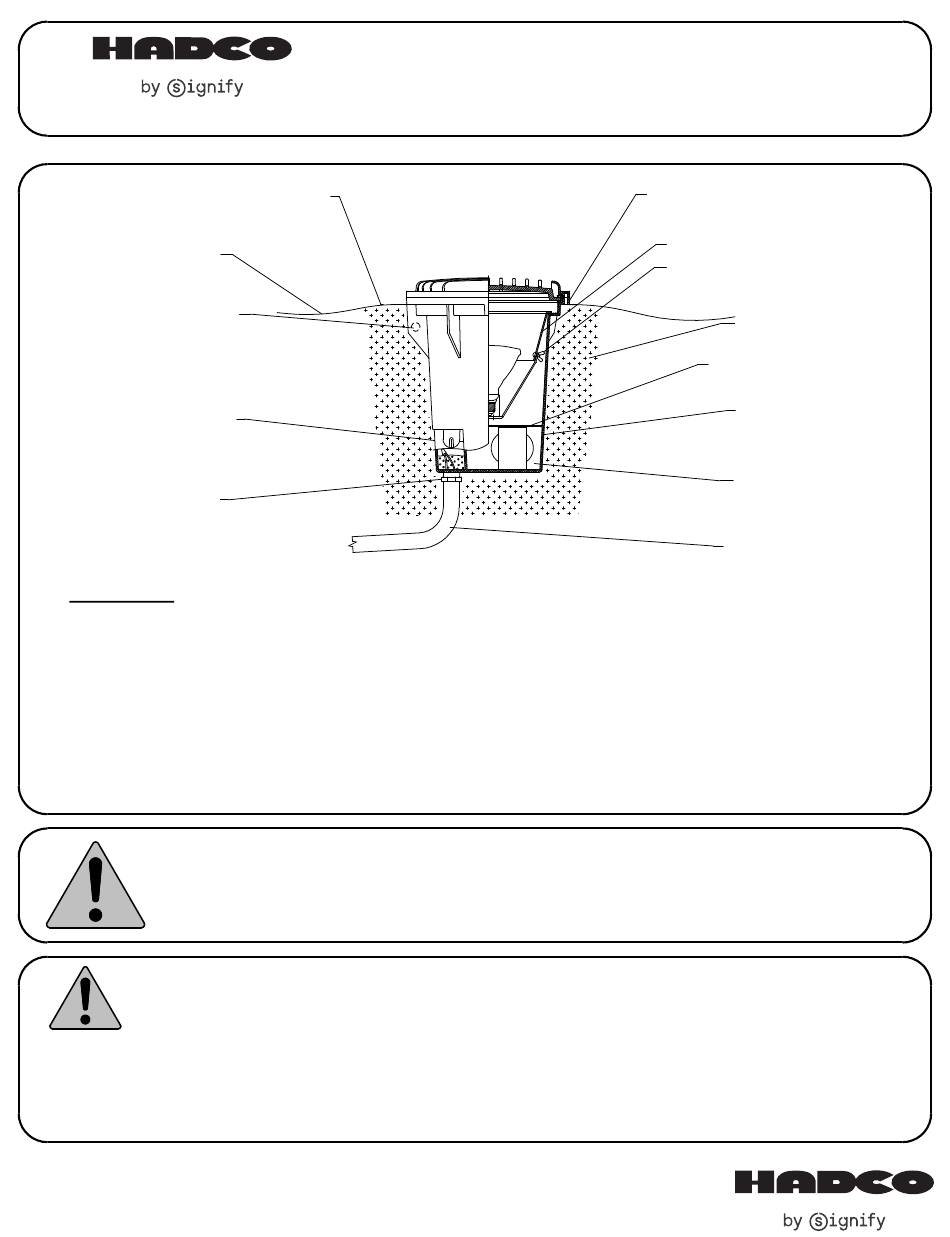

(100W MH HID FIXTURE SHOWN)
Signify Canada Ldt./ Signify Canada Ltée
281 Hillmount Road
Markham ON, Canada L6C 2S3
Phone: 800-668-9008
INSTALLATION INSTRUCTIONS:
I4/G8/AG03 INGROUND UPLIGHT
HOUSING
FLANGE
LAMPING ASSEMBLY
WING NUTS FOR
AIMING LAMP
GRANULAR
MATERIAL
BALLAST
ASSEMBLY
(HID ONLY)
FIXTURE
HOUSING
BALLAST
COMPARTMENT
(HID ONLY)
CONDUIT
(BY OTHERS)
page 1 of 2
