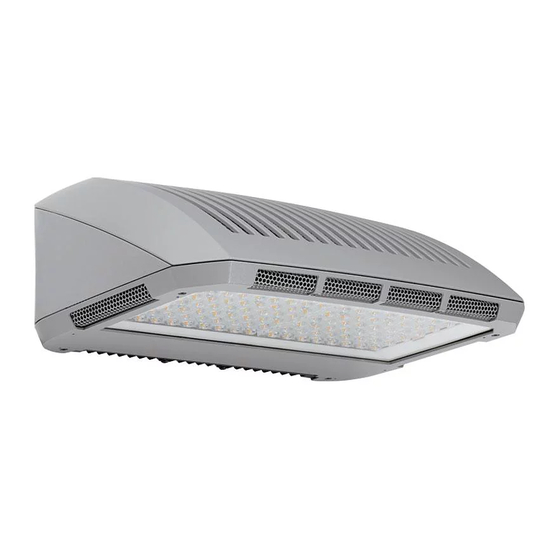

SIGNIFY GARDCO 161 SCONCE Installation Instructions

For ws (wallmount, surface conduit) option

Signify Classified - Internal

INSTALLATION INSTRUCTIONS

FOR WS (WALLMOUNT, SURFACE CONDUIT) OPTION,

IMPORTANT: READ ALL INSTRUCTIONS BEFORE PERFORMING ANY WORK. BE SURE

WARNING: LUMINAIRE MUST BE GROUNDED IN ACCORDANCE WITH APPROPRIATE

CODES. FAILURE TO DO SO MAY RESULT IN SERIOUS INJURY.

IMPORTANT !!!

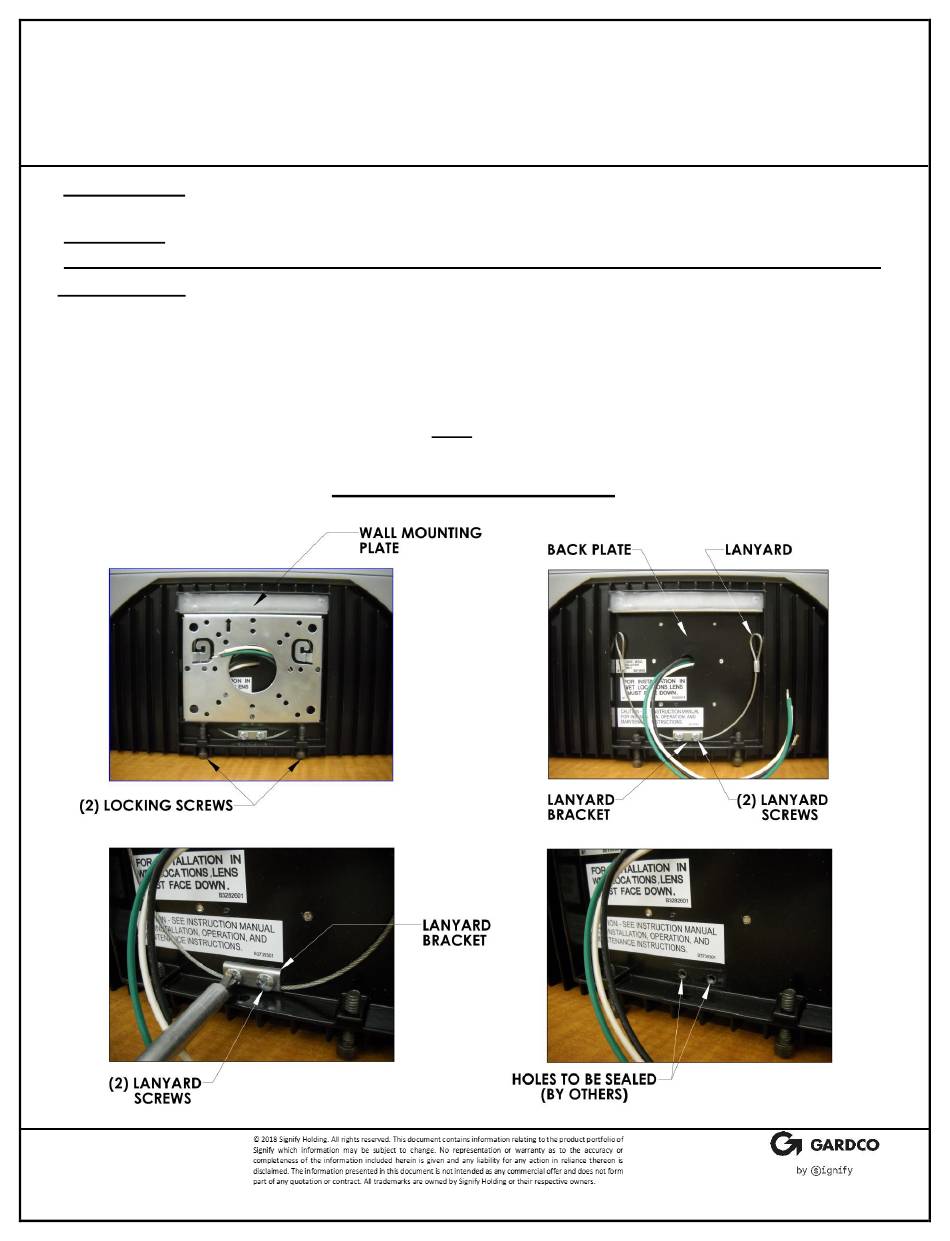

MUST remove LANYARD ASSEMBLY to correctly install luminaire to SURFACE MOUNT CONDUIT BOX:

1. Loosen (2) locking screws and remove WALL MOUNTING PLATE from back of luminaire.

Discard WALL MOUNTING PLATE.

2. Remove (2) LANYARD SCREWS holding BRACKET and LANYARD in place. Discard screws,

BRACKET, LANYARD.

3. HOLES for LANYARD BRACKET SCREWS must be sealed with sealant (by others).

443561201270 Rev. C

Page 1 of 3

ALL POWER IS OFF PRIOR TO INSTALLING LUMINAIRES.

BACK OF LUMINAIRE

161 SCONCE

www.gardcolighting.com
