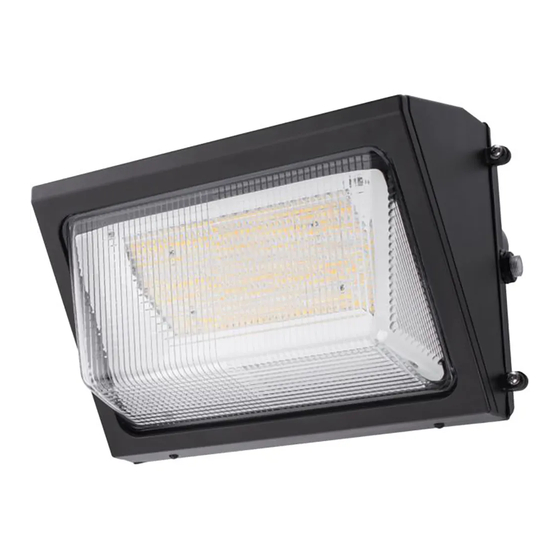

Wall pack led lighting fixture

Advertisement

Available languages

Available languages

Quick Links

GENERAL SAFETY INFORMATION
To avoid hazards and unnecessary failures due to misuse, please read carefully all
warnings and instructions included in the MI sheets and all labels.
•Before installing, servicing, or performing routine maintenance upon this equipment,
pay attention to:Supply voltage input 120-347V, frequency 50/60 Hz.
•This fixture is intended to be connected to a properly installed and grounded UL
listed junction box.
•Commercial installation, service and maintenance of luminaires should be performed
by a qualified licensed electrician.
•Residential installation, always consult a qualified licensed electrician and check your
local electrical code if any uncertainty before operating.
•Always check the product before installation.
• DO NOT INSTALL DAMAGED PRODUCT!
WARNING: RISK OF ELECTRICAL SHOCK
•Always turn off the power before you perform installation and maintenance.
•Verify that supply voltage is correct for the specified voltage range of the luminaire shown on the label, i.e. 120-347V.
•Make all electrical and grounded connections in accordance with the National Electrical Code and any applicable local code
requirements.
• All wiring connections must be capped with UL approved devices for this purpose.
CAUTION: RISK OF INJURY
•Wear gloves and safety goggles at all times when removing luminaires from carton, installing, servicing or performing
maintenance.
• Avoid direct eye exposure to the illuminated light source.
•Put asid e small parts and dispose packing material properly, to prevent hazard to children.
CAUTION: RISK OF FIRE
• Install and use only as intended according to UL, all applicable codes and regulations and these instructions.
CAUTION:
For proper weatherproof function all gaskets must be seated properly and all screws inserted and tightened
firmly. apply weatherproof silicone sealant around the edge of the wall box. this is especially important with an uneven wall
surface. silicone all plugs and unused conduit entries.
Illustrations in the manual are for installation purpose only. Installation may vary depending on the specific luminaire
model.
GENERAL WIRING DIAGRAM
CAUTION
: Turn off electrical power by fuse or circuit breaker box before wiring fixture to the power supply.
Wall Pack
WP60-SCT-G2-10-BZ
WP100-SCT-G2-10-BZ
LED Lighting Fixture
page 1
