HMS Networks Anybus Wireless Bolt LTE AWB1504 User Manual page 53

® ™
Data Connection Termination Anybus Wireless Bolt LTE

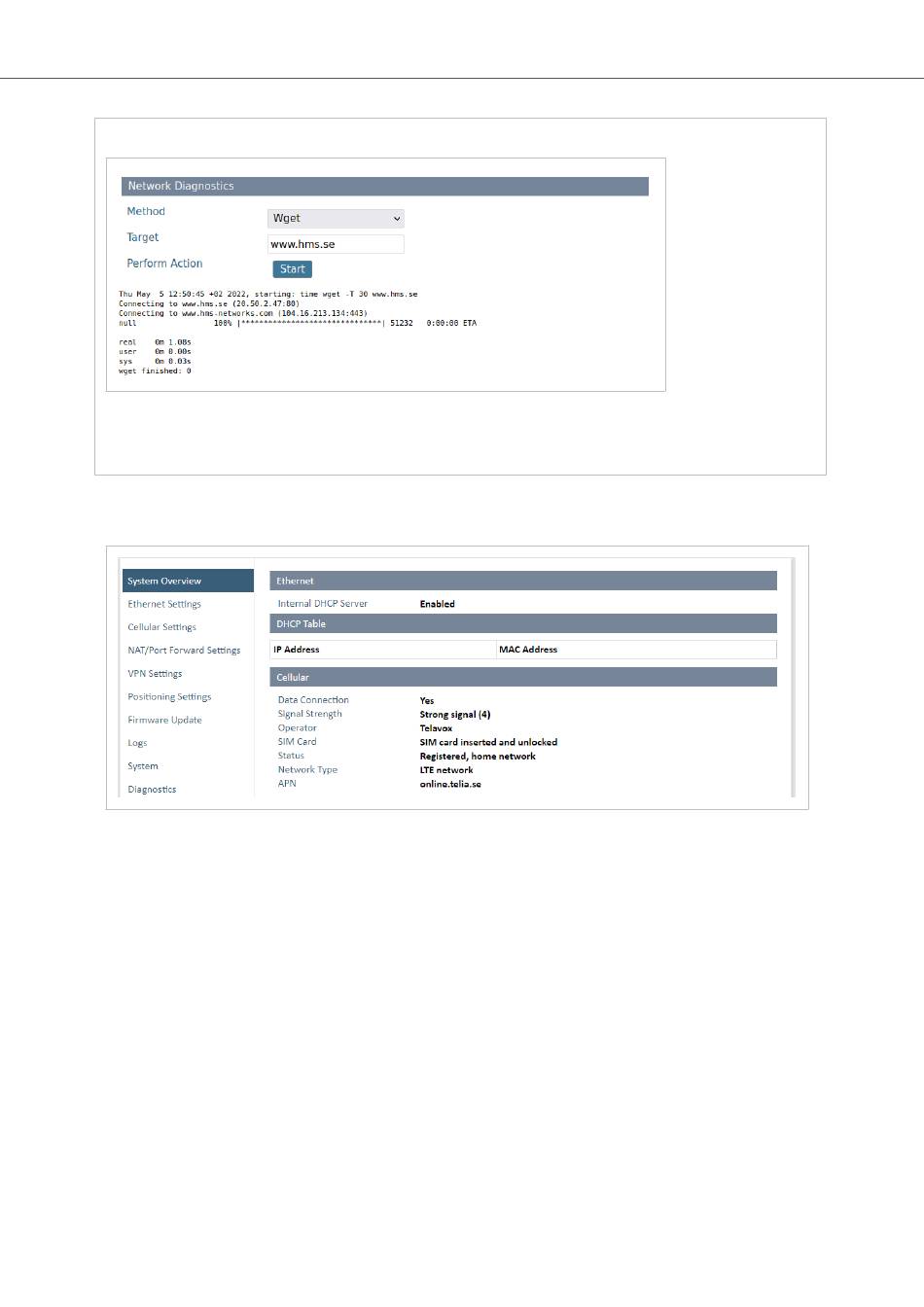

Example 10. Wget response message from target webpage
Response message with elapsed time between the request being sent to the Target and the response being
returned.
9.3. Data Connection Termination
Figure 41. System Overview page, Data Connection status Yes
On the System Overview page, Data Connection status Yes is picked up from the underlying system and is not
tested for data transfer.
The Bolt LTE modem may get a control connection, but once data is sent the connection is terminated
immediately.
This can be caused by discrepancy between the selected network technology, the SIM card and the operator
setting.
To troubleshoot the cause of the termination, analyze the System Log, refer to Logs (page 45).
If the problem recurs, contact your network operator.
SCM-1202-164 Version 1.5 Page 49 of 62
