Anybus Wireless Bolt LTE
7.2. LED Status Indication

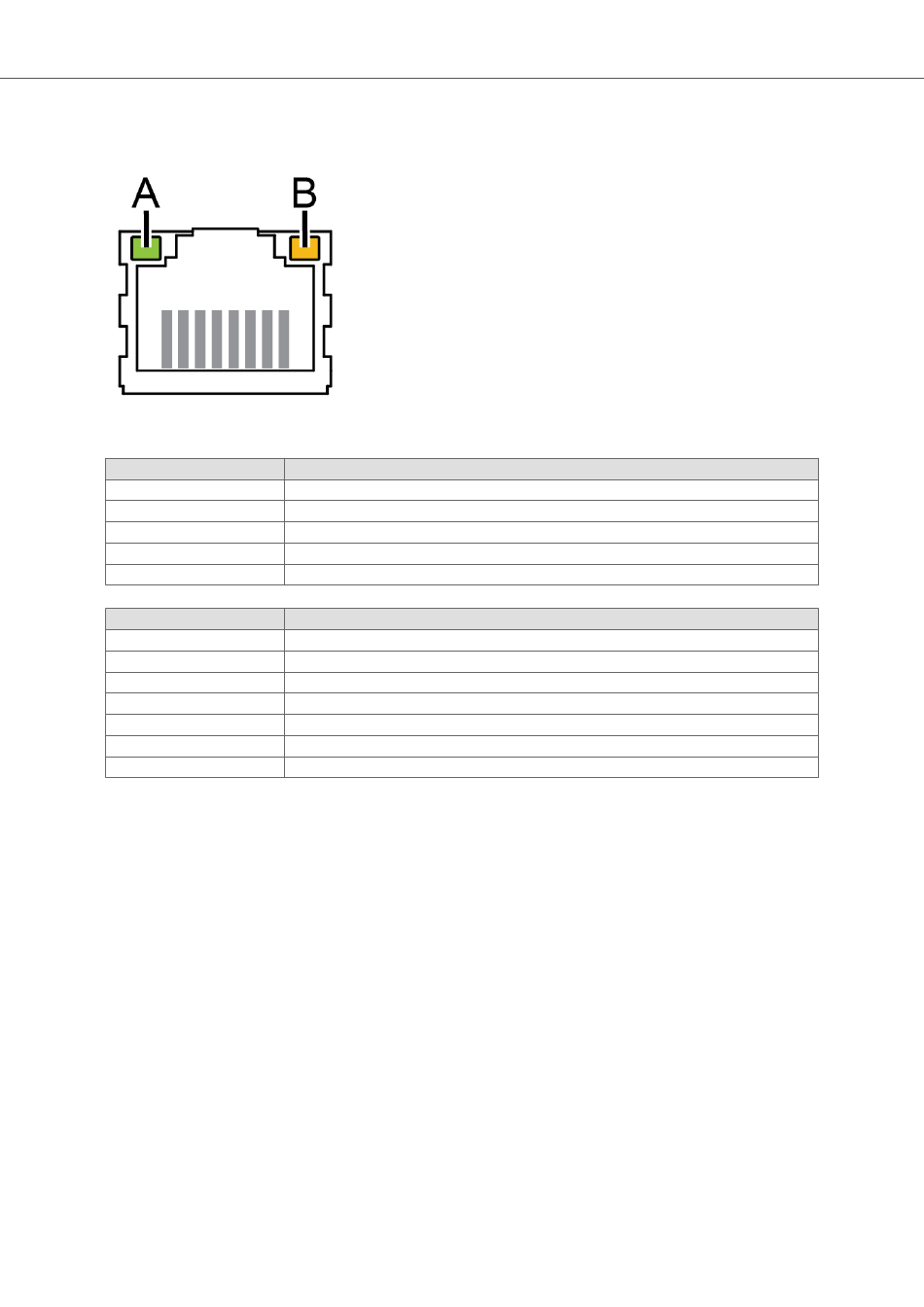

Figure 32. RJ45 LED indicators
LED A – LINK/ACTIVITY
Off
Yellow
Yellow, flashing
Green
Green, flashing
LED B – STATUS
Off
Blue
Alternating blue/purple
Purple
Red
Red, slow blink
Yellow
Page 40 of 62
Function
No Ethernet link
10 Mb/s Ethernet link established
10 Mb/s Ethernet activity
100 Mb/s Ethernet link established
100 Mb/s Ethernet activity
Function
No power
Connected on LTE
Trying to connect
Connected on UMTS
Recoverable/unrecoverable fault
No configured cellular interface/no SIM card/no valid configuration
Booting or sleep
LED Status Indication
