Cd Loading - NEC VERSA 6060 User Manual

T

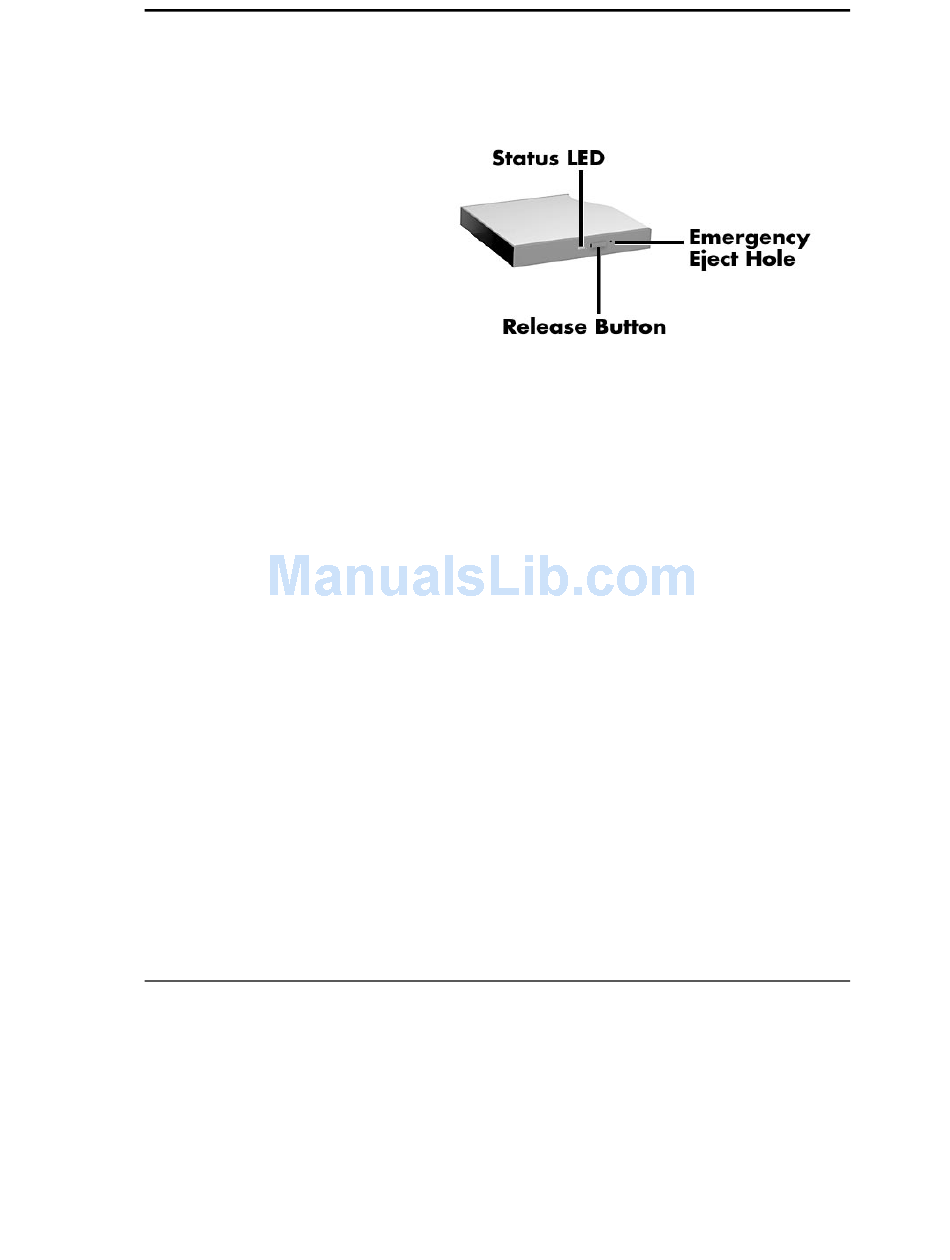

Release Button — ejects the CD tray. Press this button when power is on
to insert a CD into or remove a CD from the reader.
T
Emergency Eject Hole — allows you to manually remove a disc from the
CD-ROM reader if the eject function is disabled by software or a power
failure occurs.
To remove a disc, insert the end of a paper clip into the eject hole, and
push in until you hear a click. Now you can manually open the drawer.
T
Status LED — lights during data read operations. Do not eject the CD or
turn off the NEC Versa when this indicator is lit.

CD Loading

To insert a CD into the CD-ROM reader, follow these steps
Press the release button. The CD tray emerges from the reader door.
1.
Put your CD, printed side up, into the circular impression in the tray.
2.
3. Push the CD tray in until it clicks shut.
20X CD-ROM reader
Using Your NEC Versa 4-13
