Open the port cover on the back of the system.
2.
Attach the 15-pin cable connector to the monitor port on the system. Se-
3.
cure the cable connection with the screws provided.
Connect the monitor power cable and plug it into a properly grounded
4.
wall outlet.
Follow any setup instructions in the monitor's user's guide.
5.
Turn on power to the monitor.
6.
7.
Press the Suspend button to resume Active mode or power on your NEC
Versa system.
Press the
function key combination to toggle between the LCD,
Fn + F3
CRT, or simultaneous display on both.

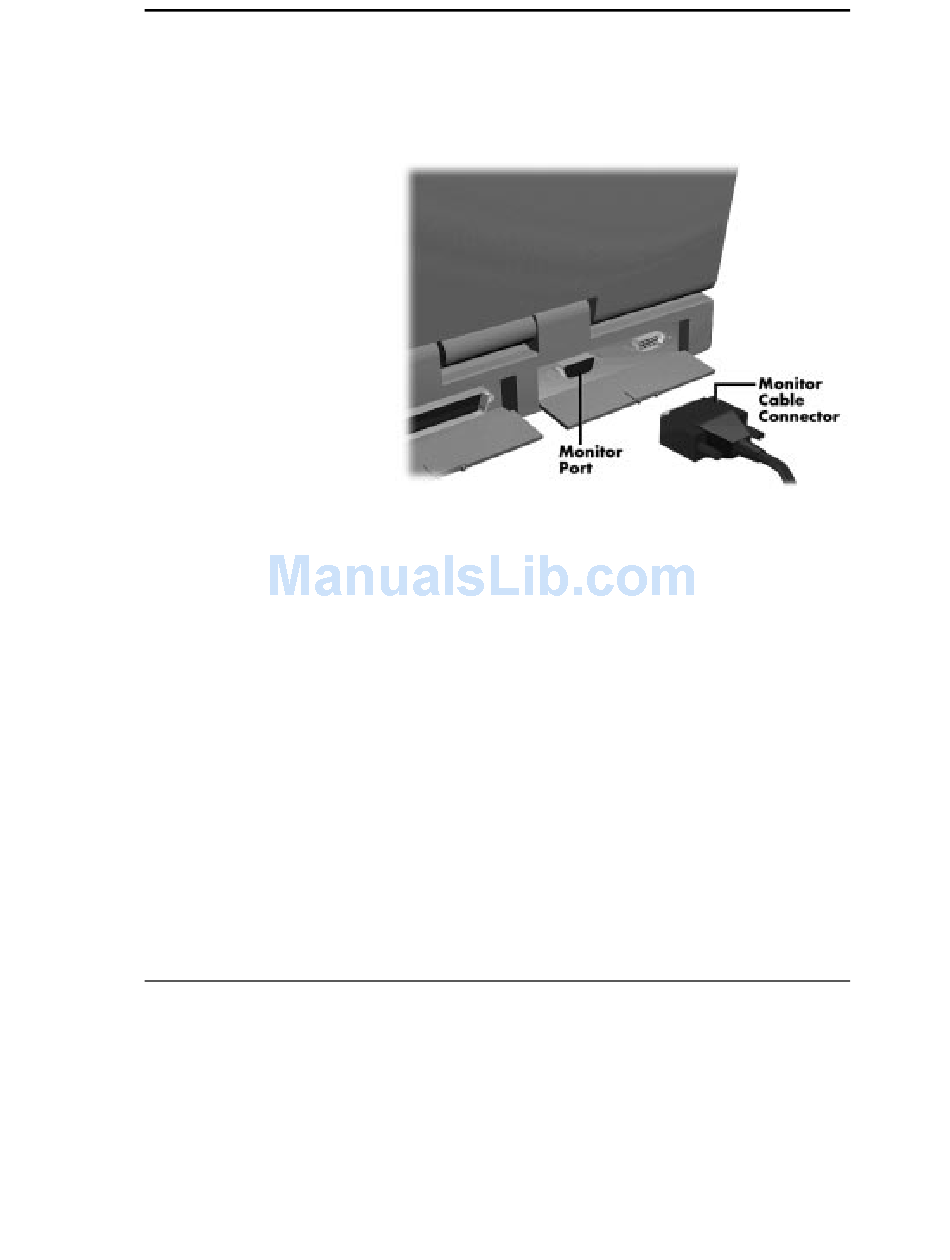

Connecting a monitor
Using Your NEC Versa 4-27
